System Specifications

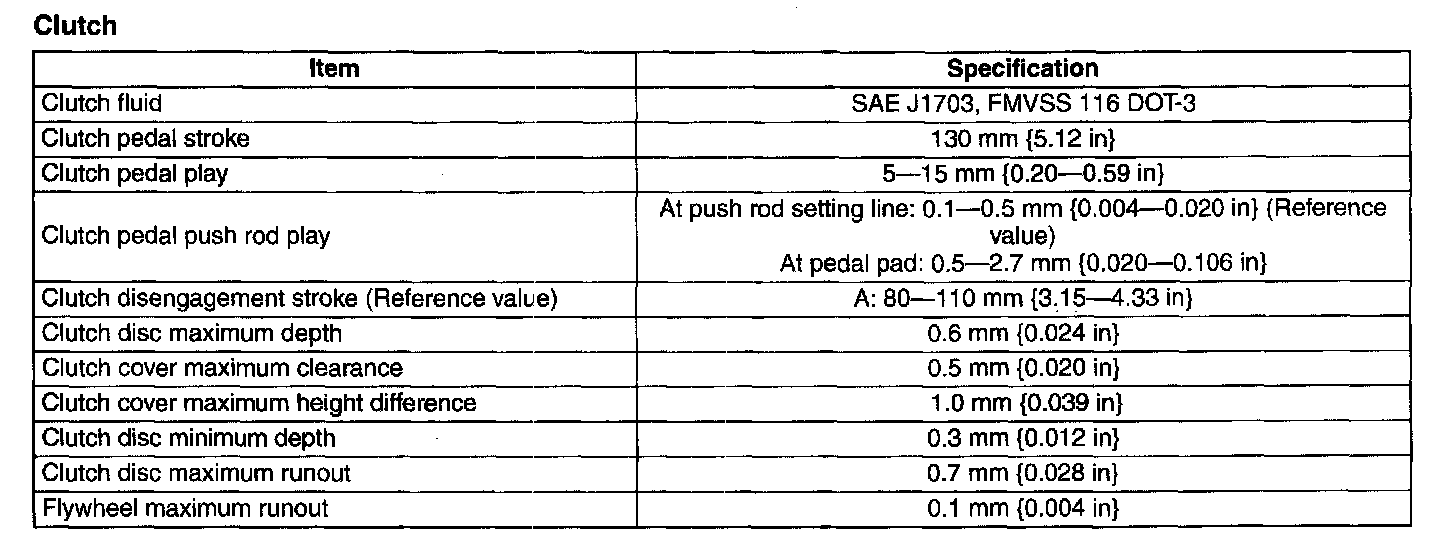

Clutch

Clutch:





Pressure plate bolts





Tighten the bolts evenly and gradually in a crisscross pattern.

Tightening torque 25.0 - 33.0 Nm (2.6 - 3.4 kegs-cm, 18.5 - 24.4 ft. lbs.)
