PID/Data Monitor and Record Function Table

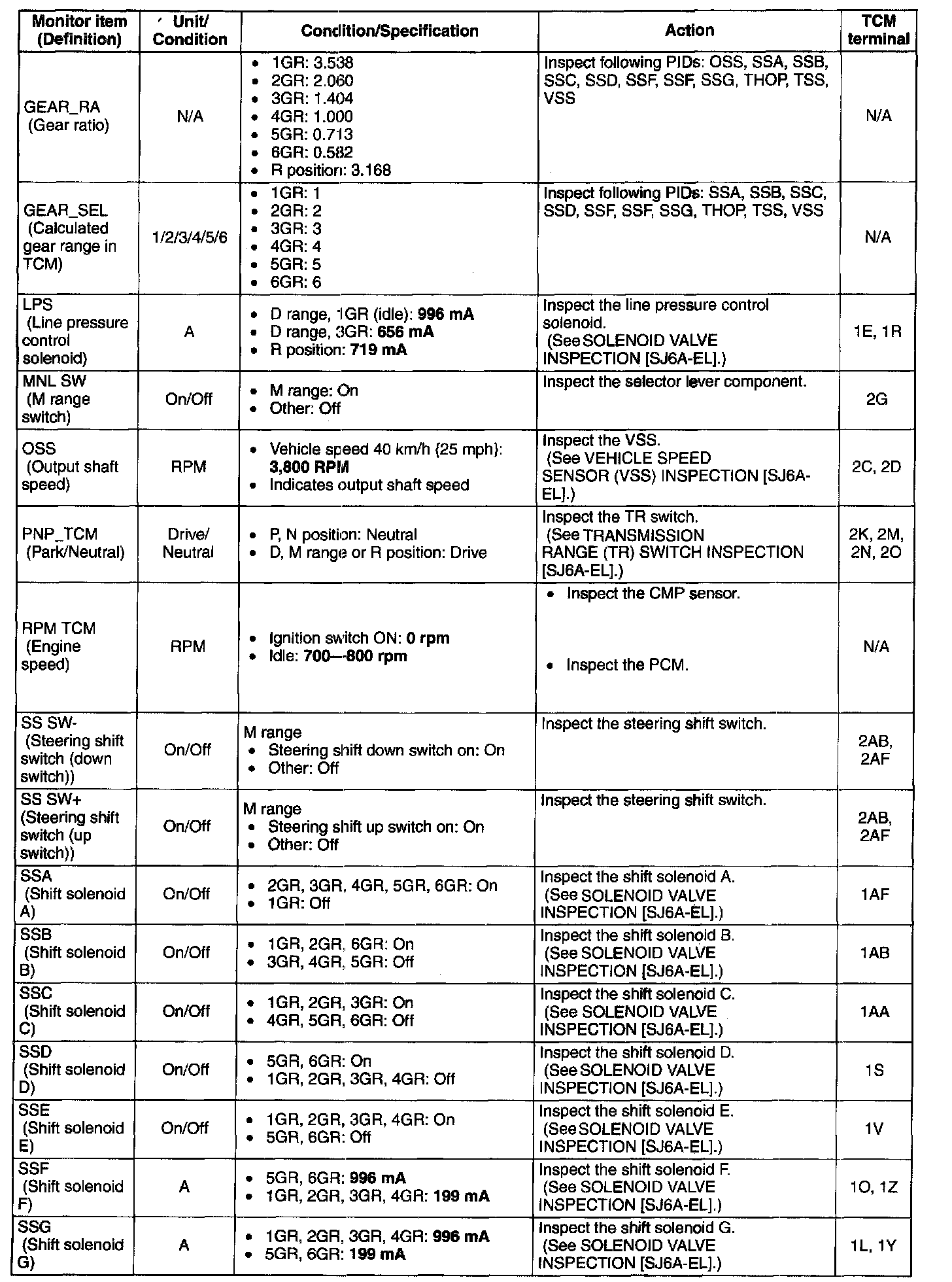

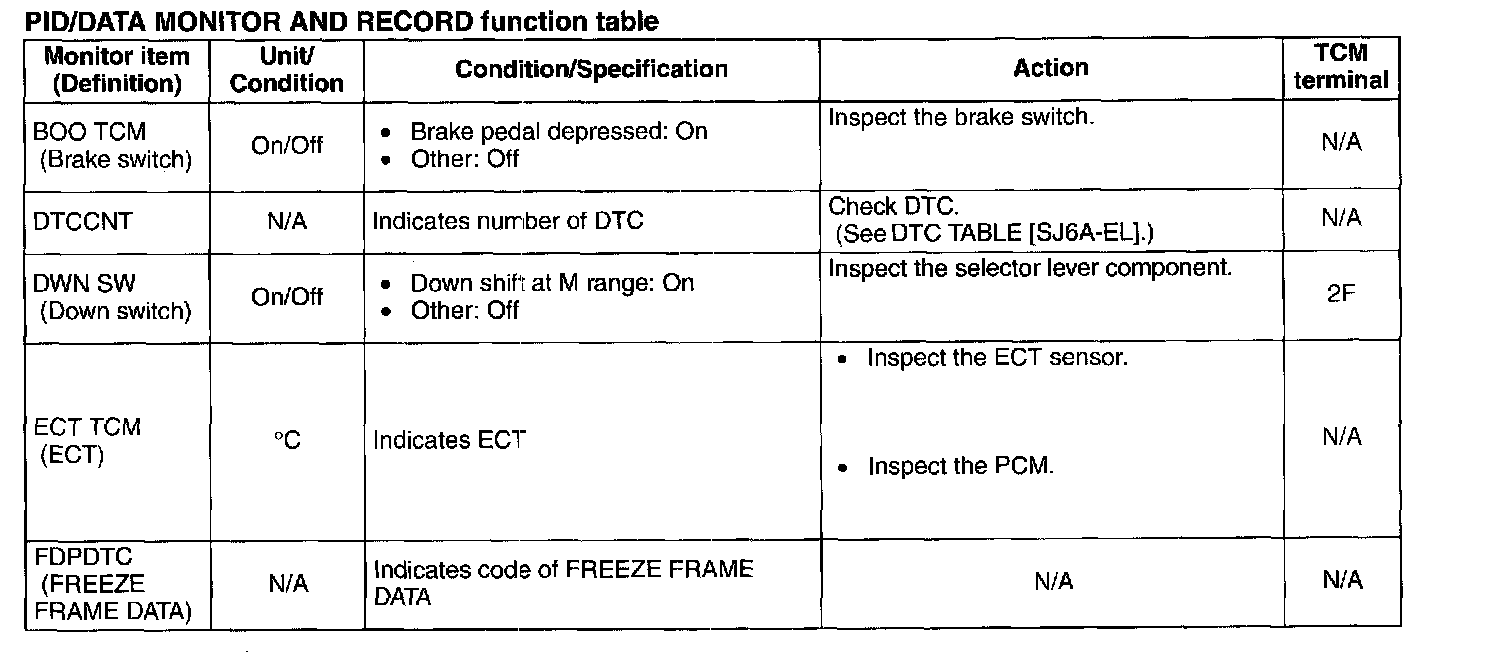

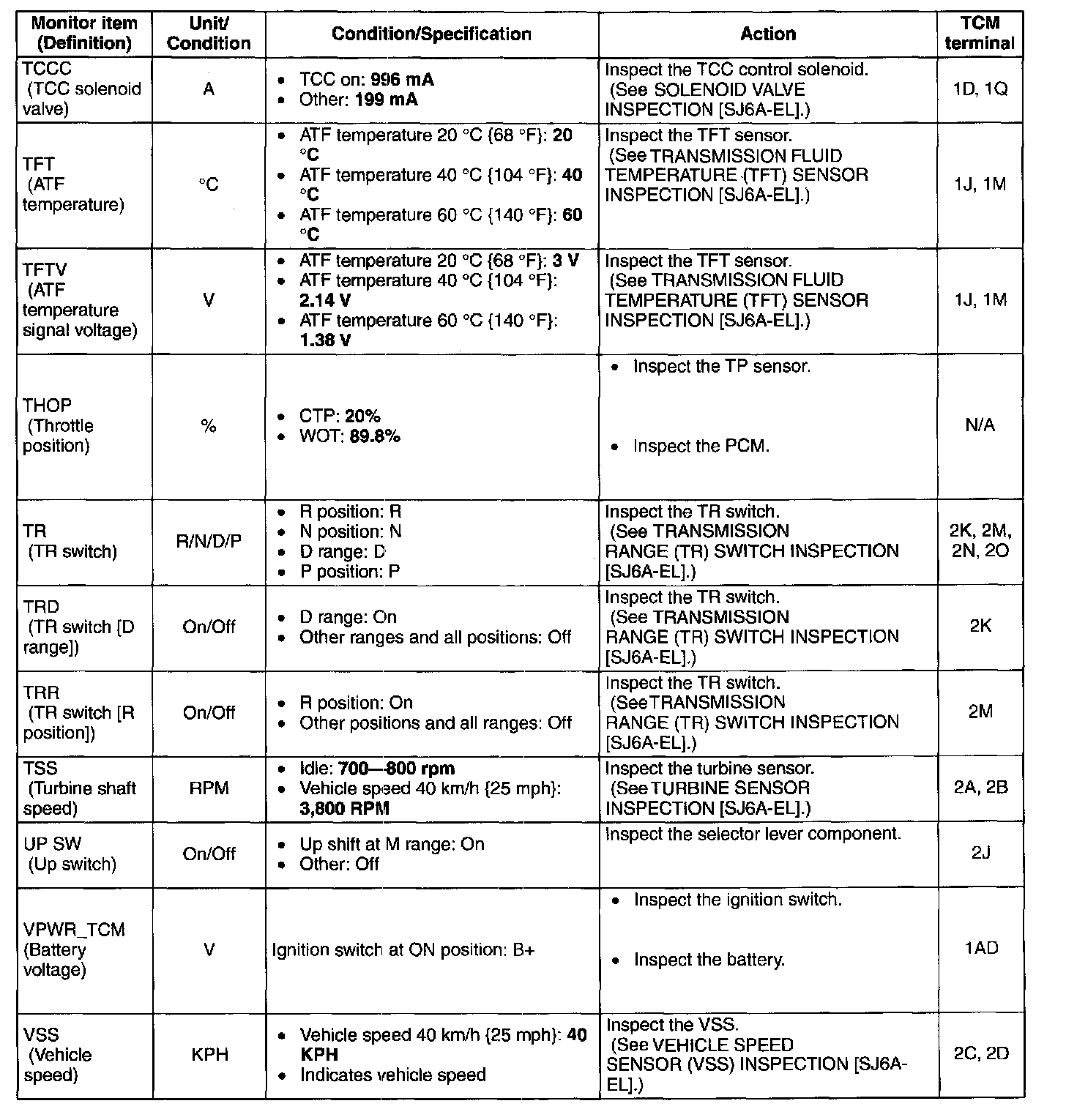

PID/DATA MONITOR AND RECORD function table (part 1):



PID/DATA MONITOR AND RECORD function table (part 2):



PID/DATA MONITOR AND RECORD function table (part 3):
