Front Header (Windshield Frame)

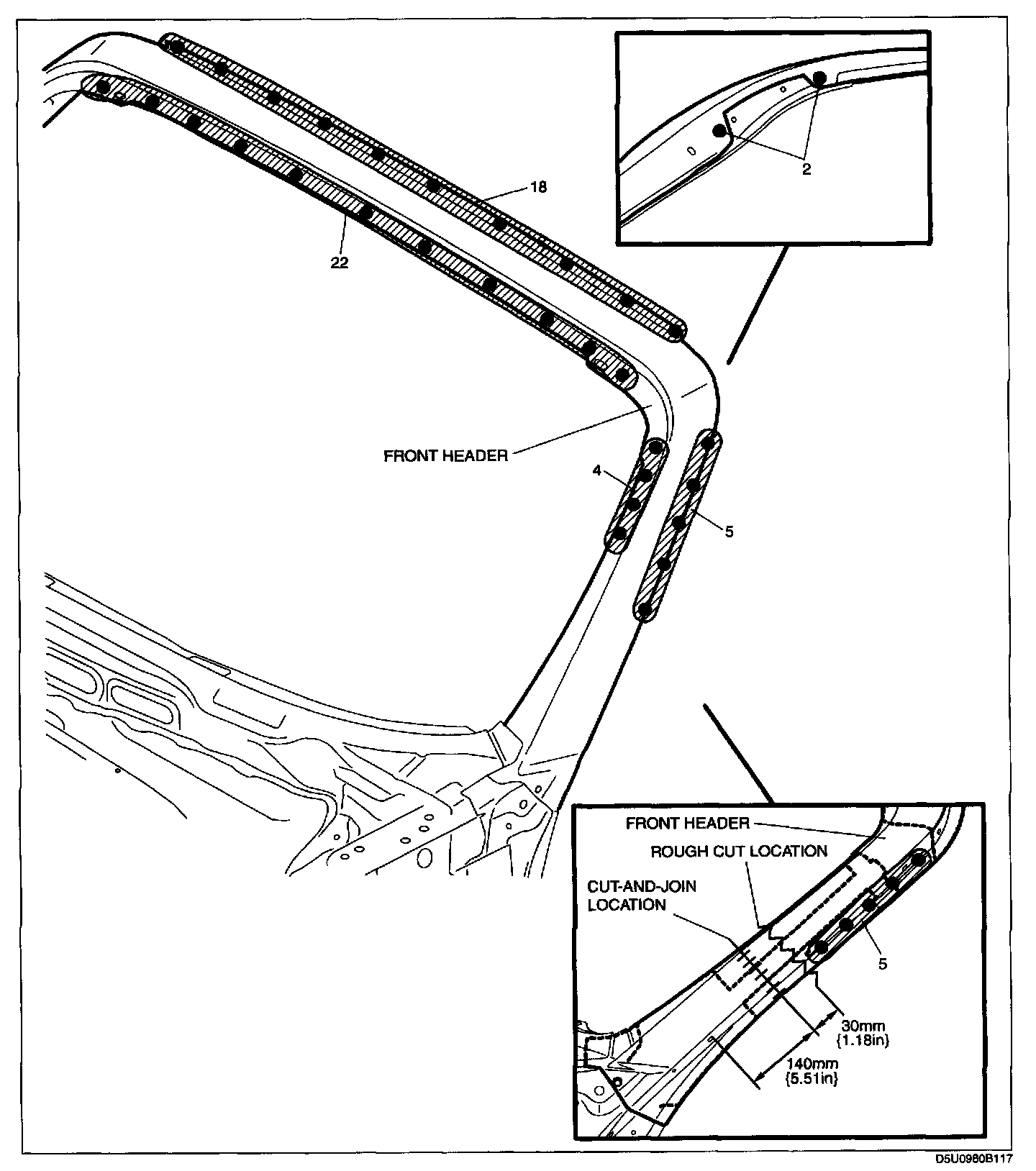

FRONT HEADER REMOVAL




1. Rough cut and remove the damaged part of the front header.

CAUTION: During rough cutting, be careful not to damage the front pillar reinforcement indicated by dotted lines in the figure.

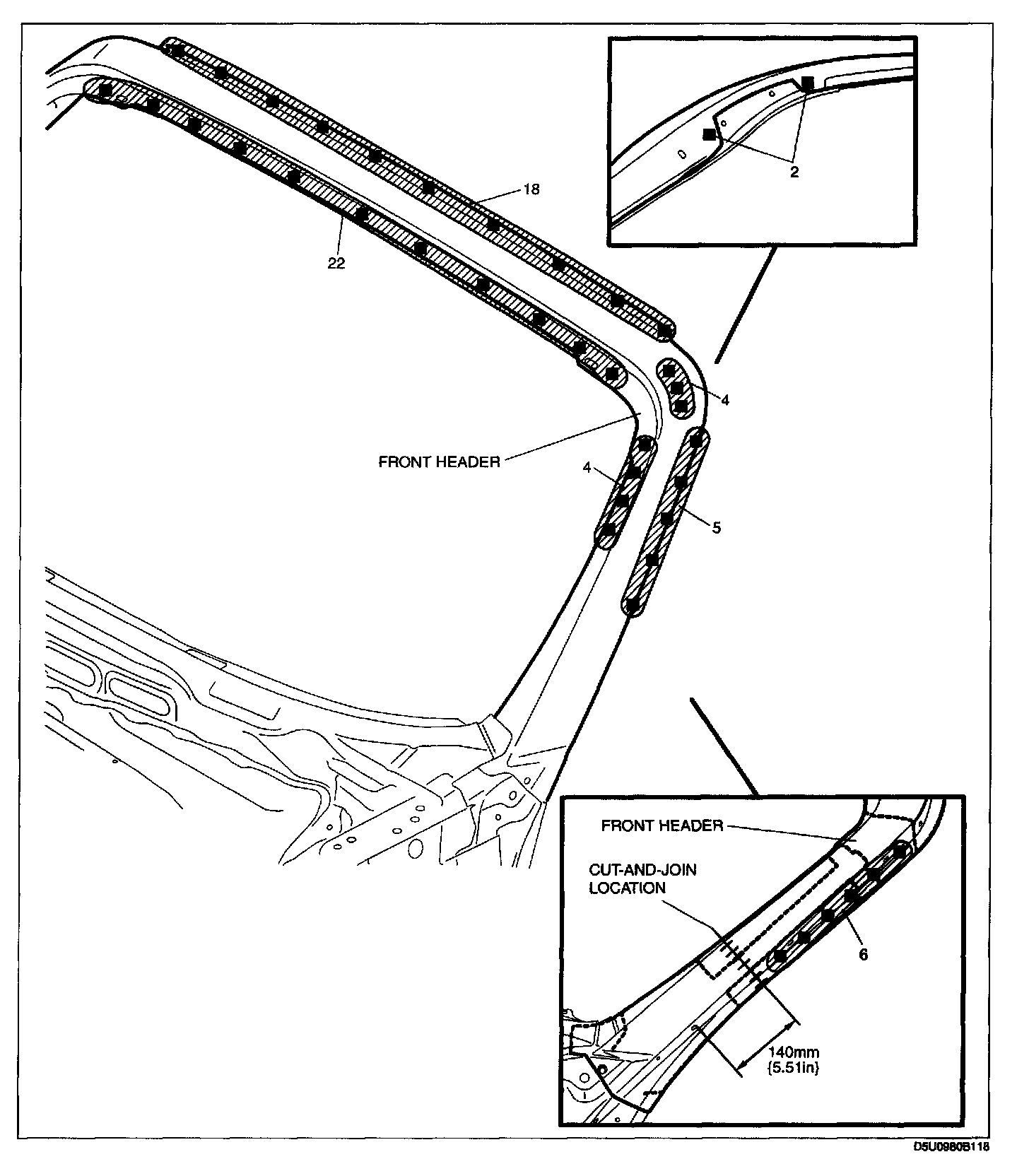

FRONT HEADER INSTALLATION

1. When joining and cutting the new and existing parts, trial fit the new part in position, then measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for plug welds before installing new parts.




3. After temporarily installing new parts, make sure the related parts fit properly.
