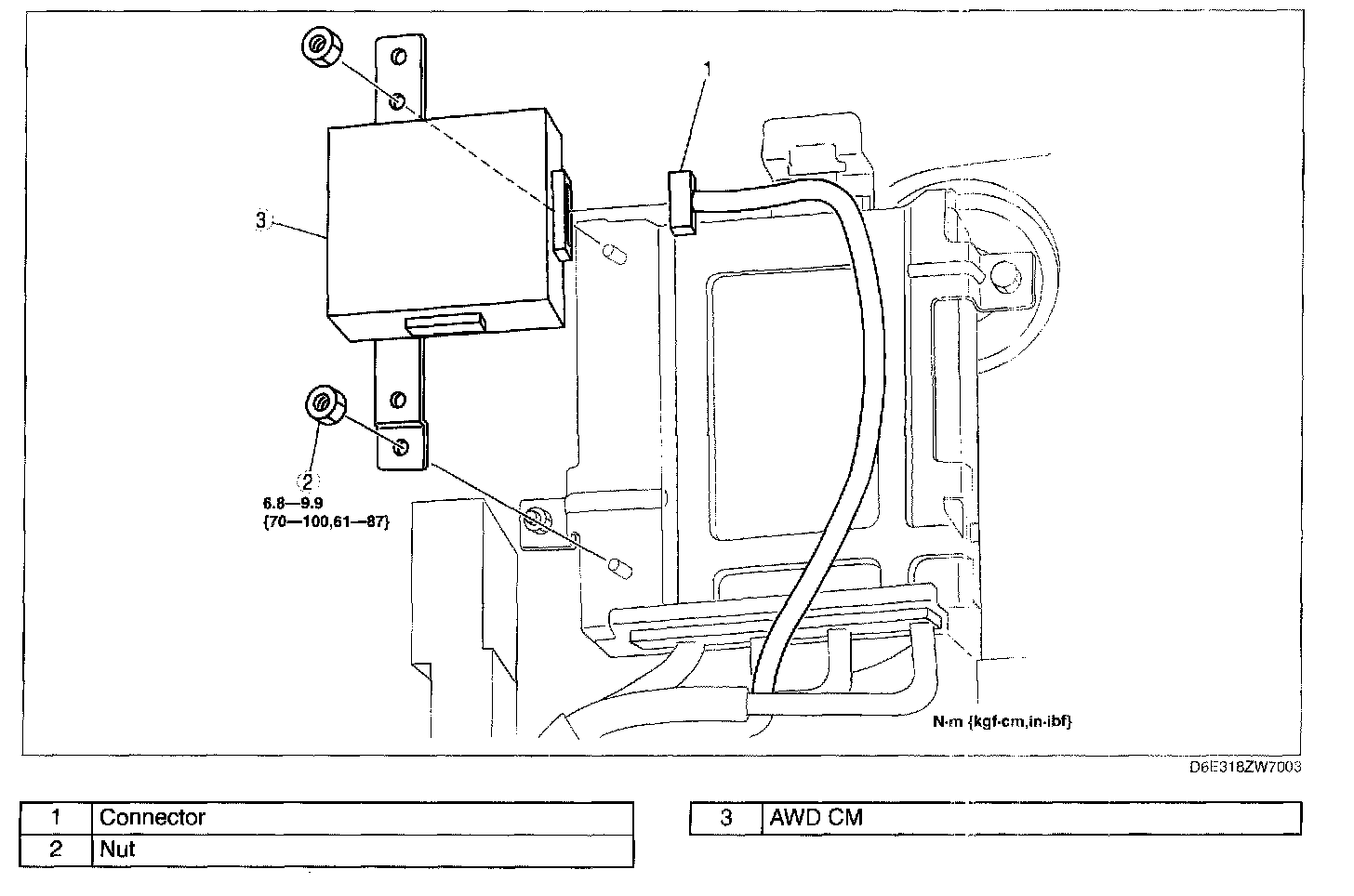

AWD Control Module Removal/Installation

AWD CONTROL MODULE REMOVAL/INSTALLATION





1. Disconnect the negative battery cable.
2. Remove the lower panel.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
