Home
>>
Mazda
>>
2006
>>
RX8 2RTR-1.3L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>

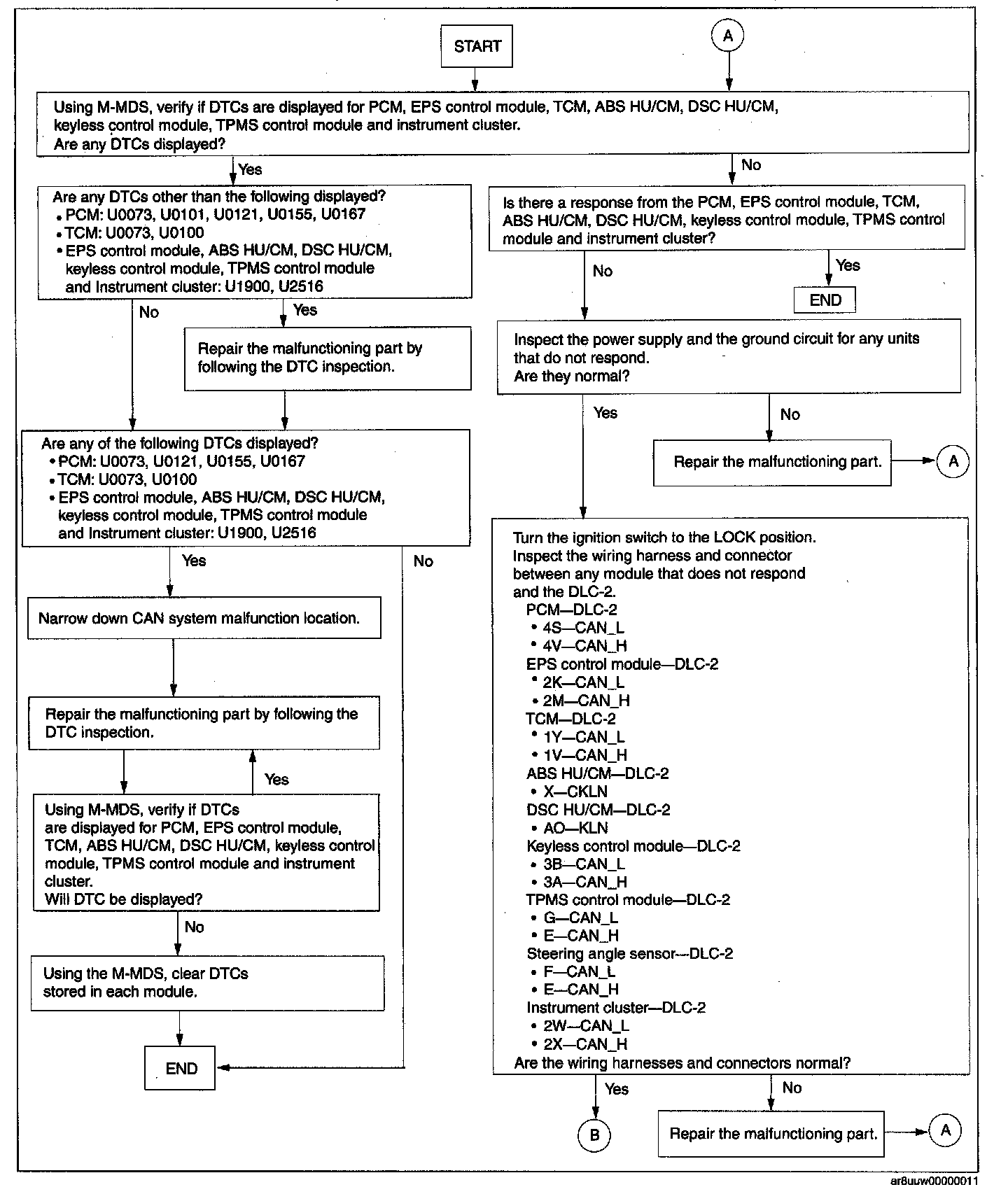

Flowchart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

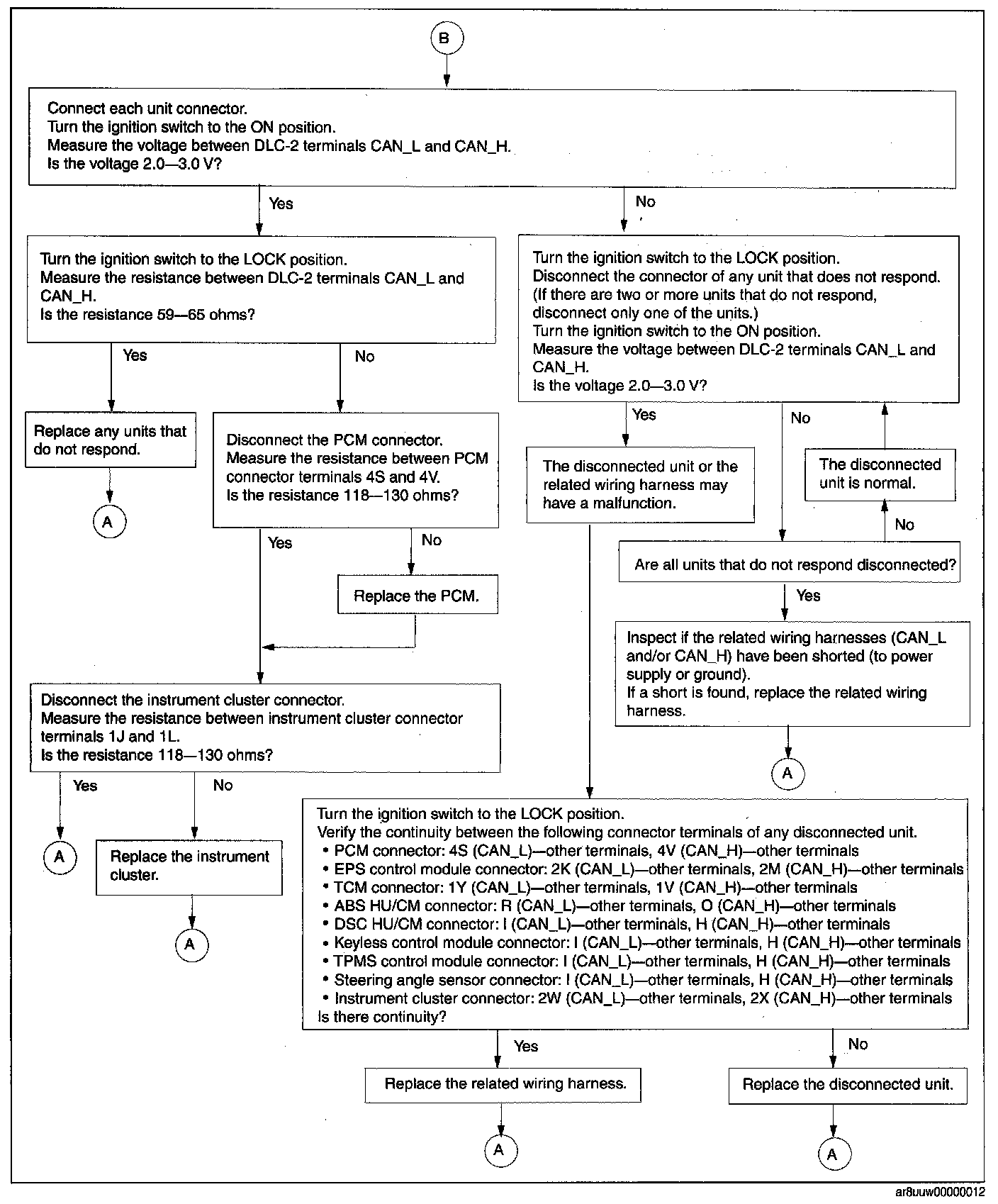

Flowchart
