A/T

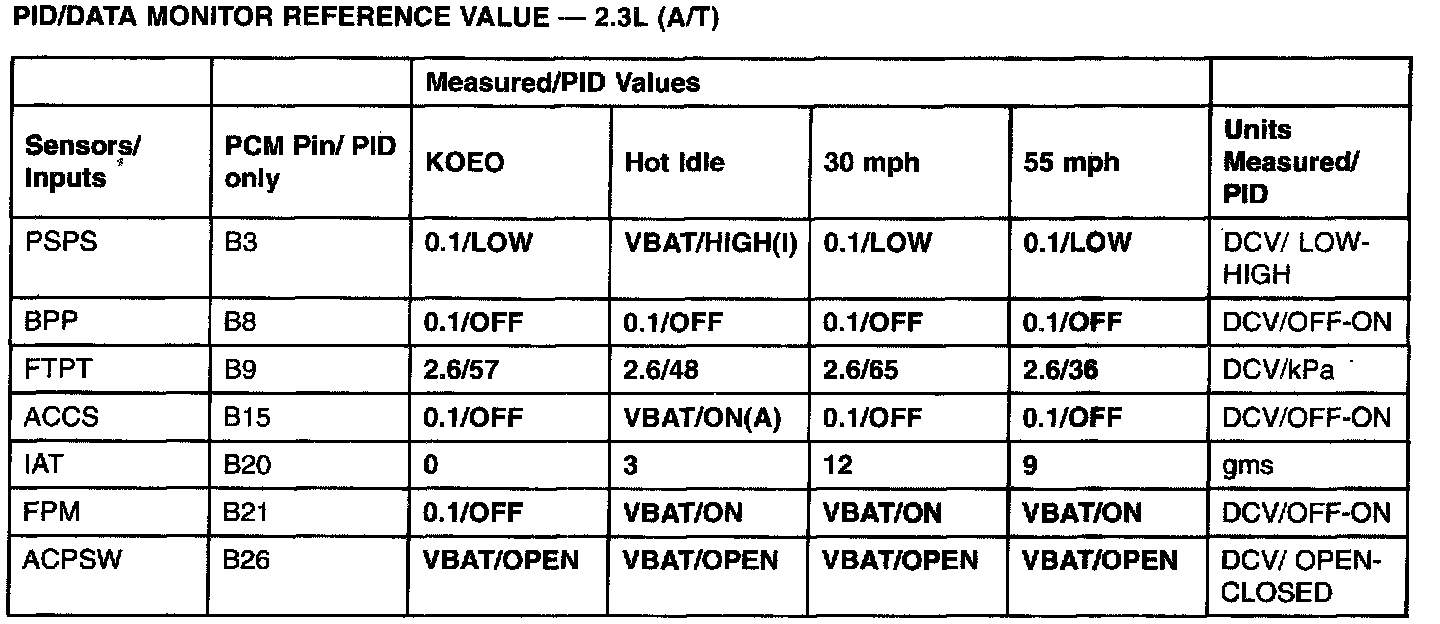

PID/DATA MONITOR REFERENCE - (A/T) (Part 1):

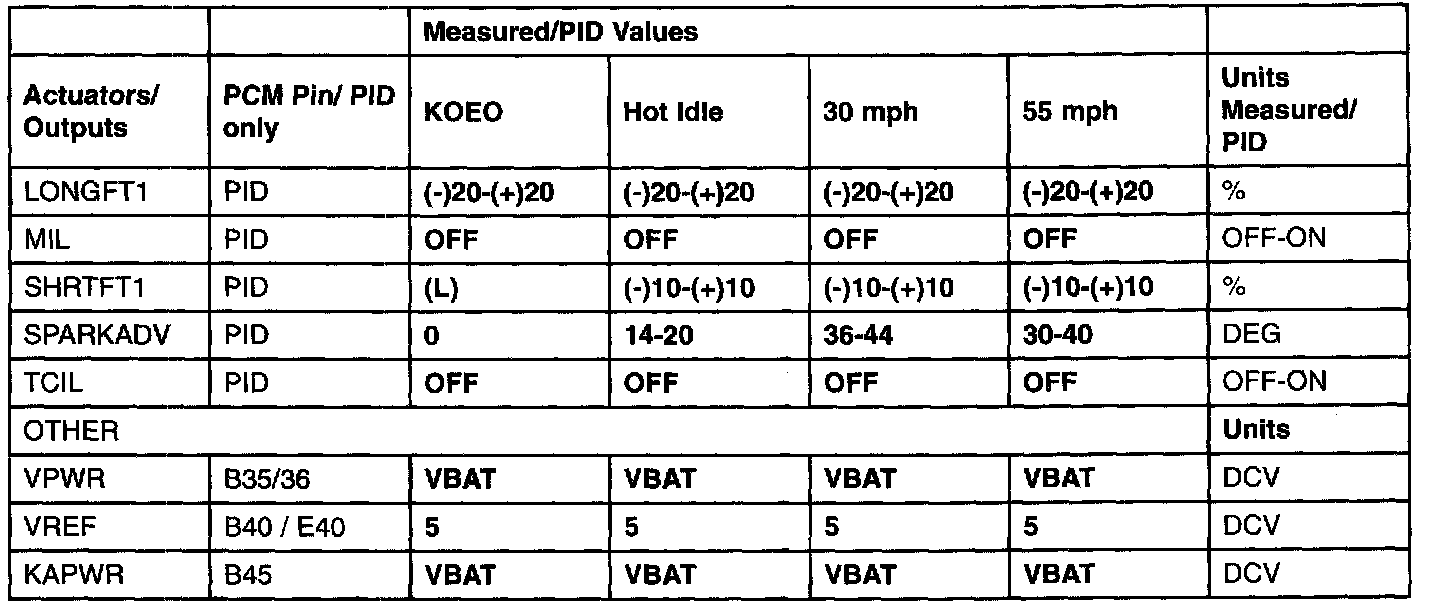

PID/DATA Monitor Reference Value - 2.3L(A/T) (Part 2):

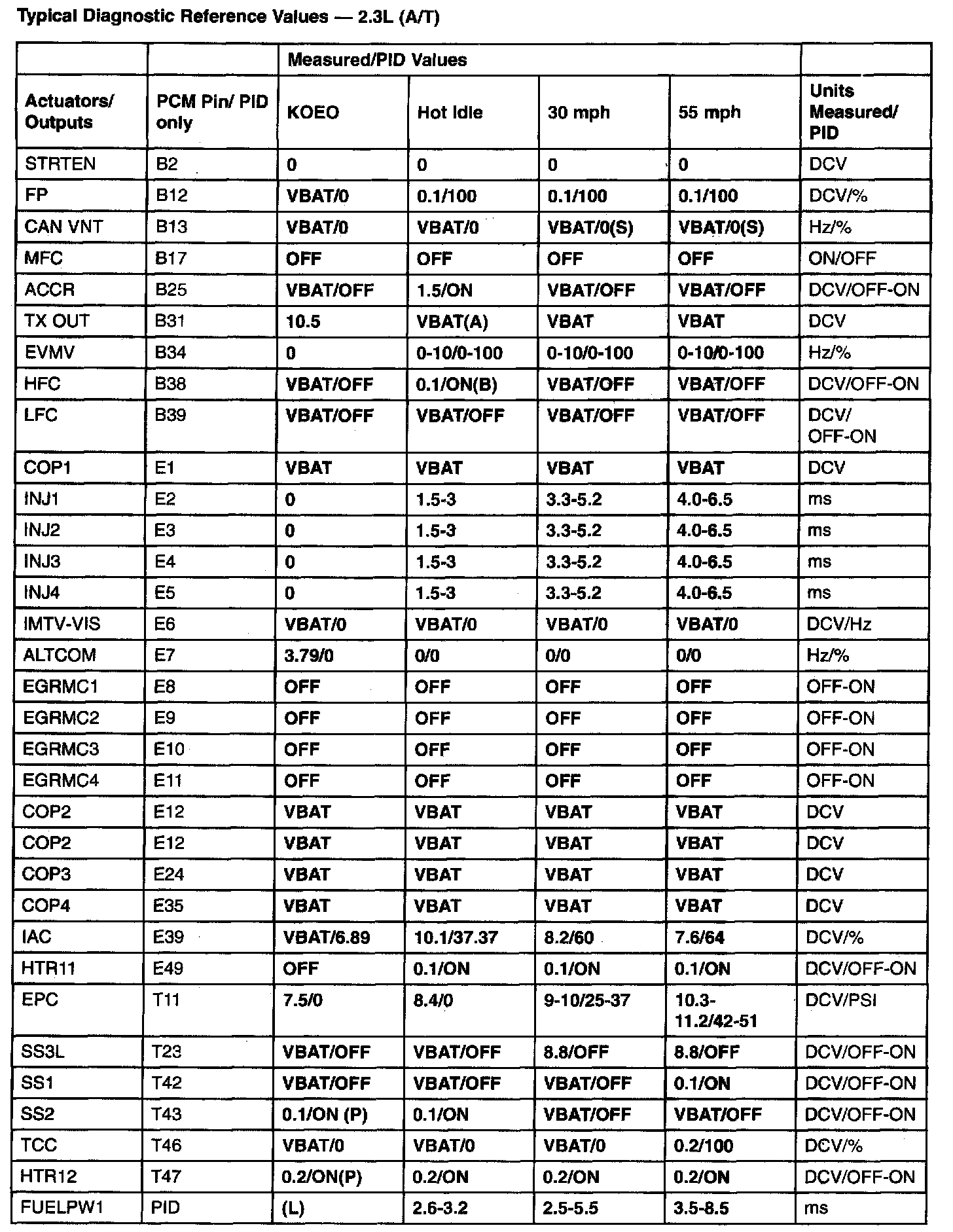

Typical Diagnostic Reference Values-(A/T) (Part 1):

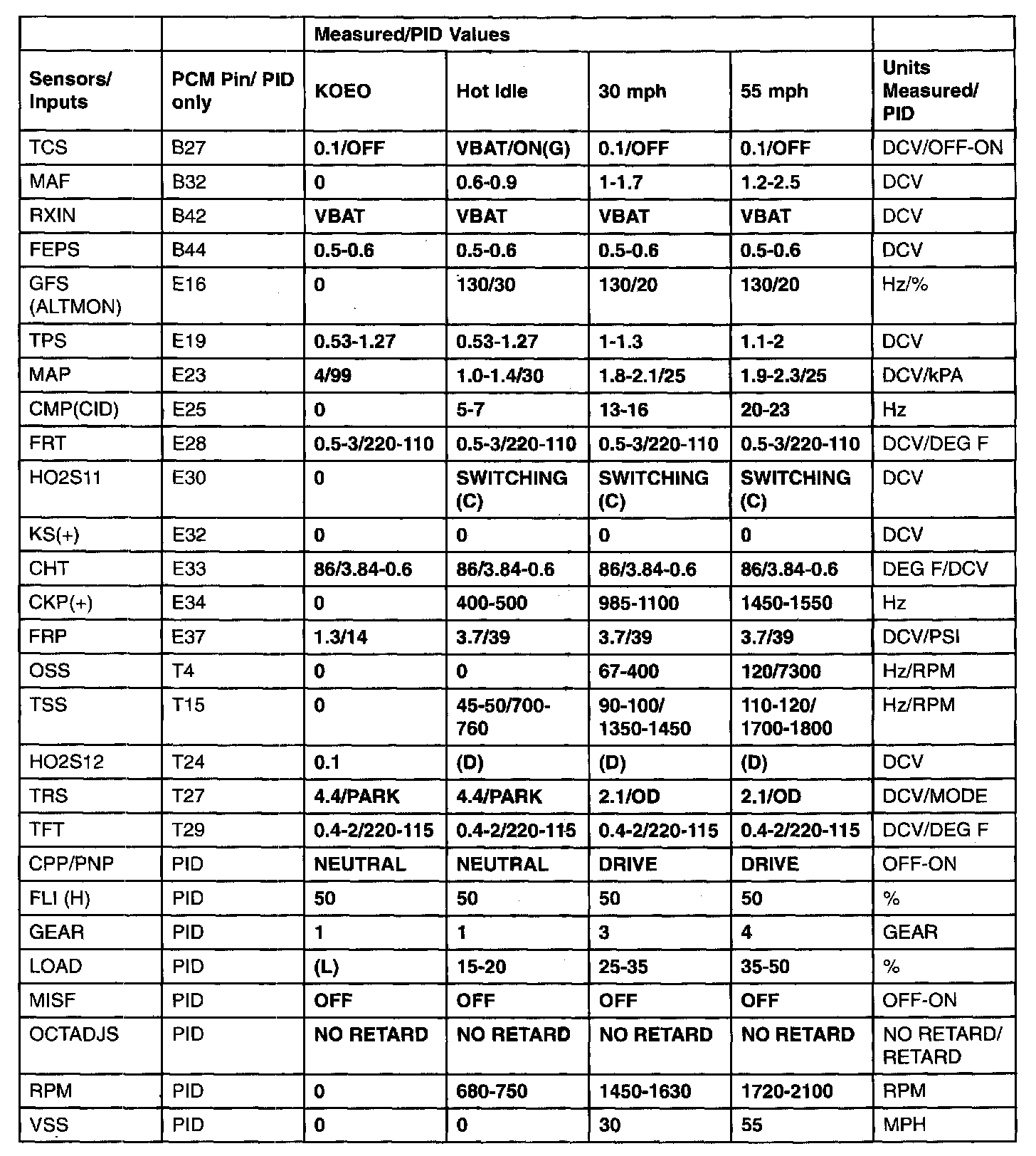

Typical Diagnostic Reference Values-(A/T) (Part 2):

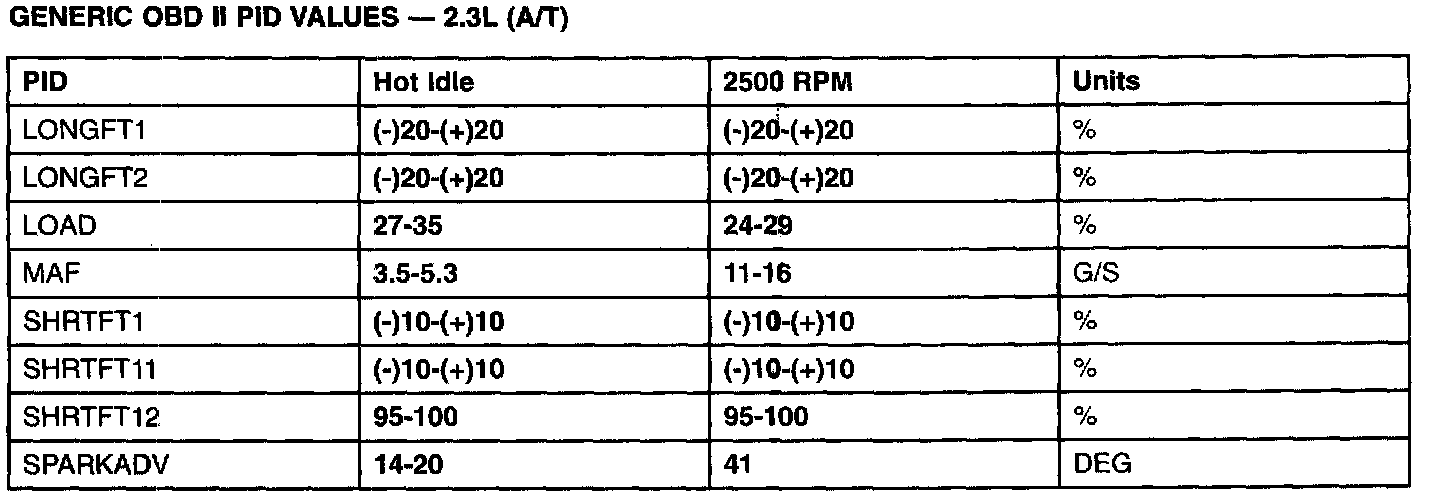

Generic OBD11 PID Values-(A/T):
