PID/Data Monitor Reference Value

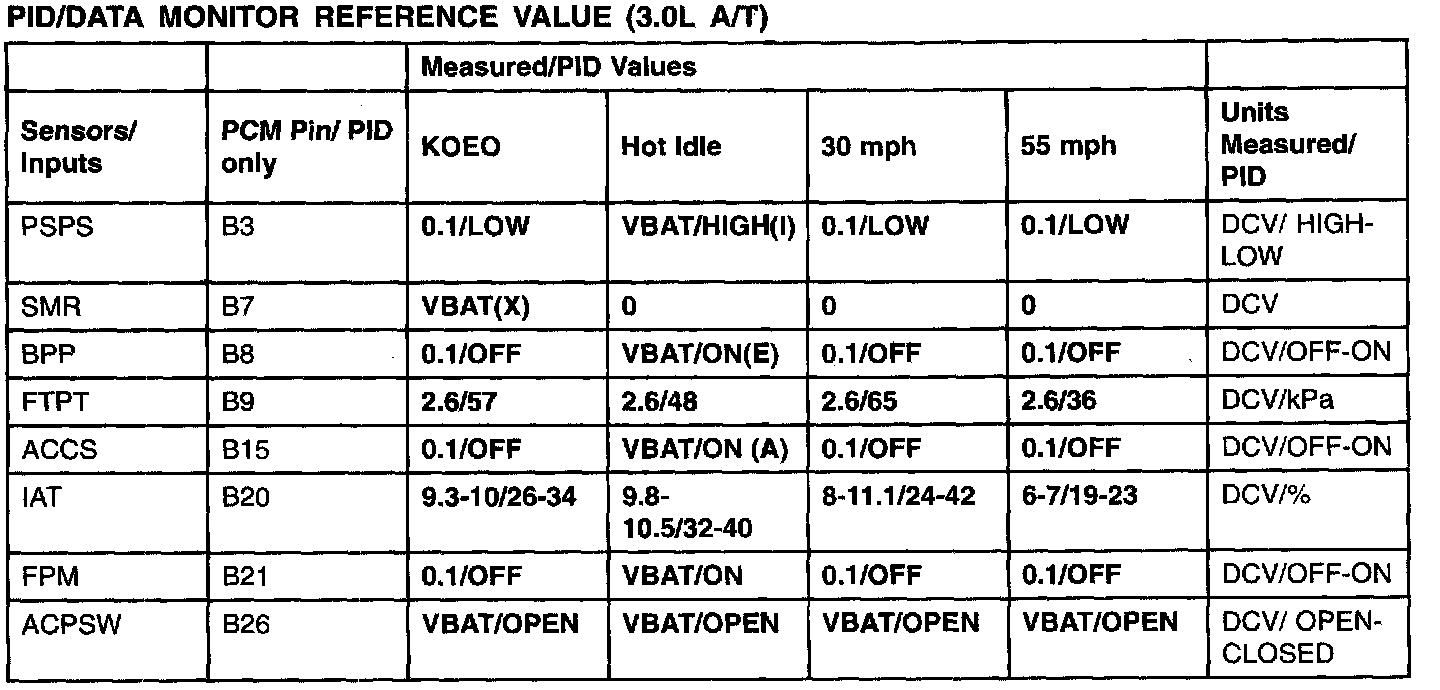

PID/DATA Monitor Reference Value (A/T) (Part 1):

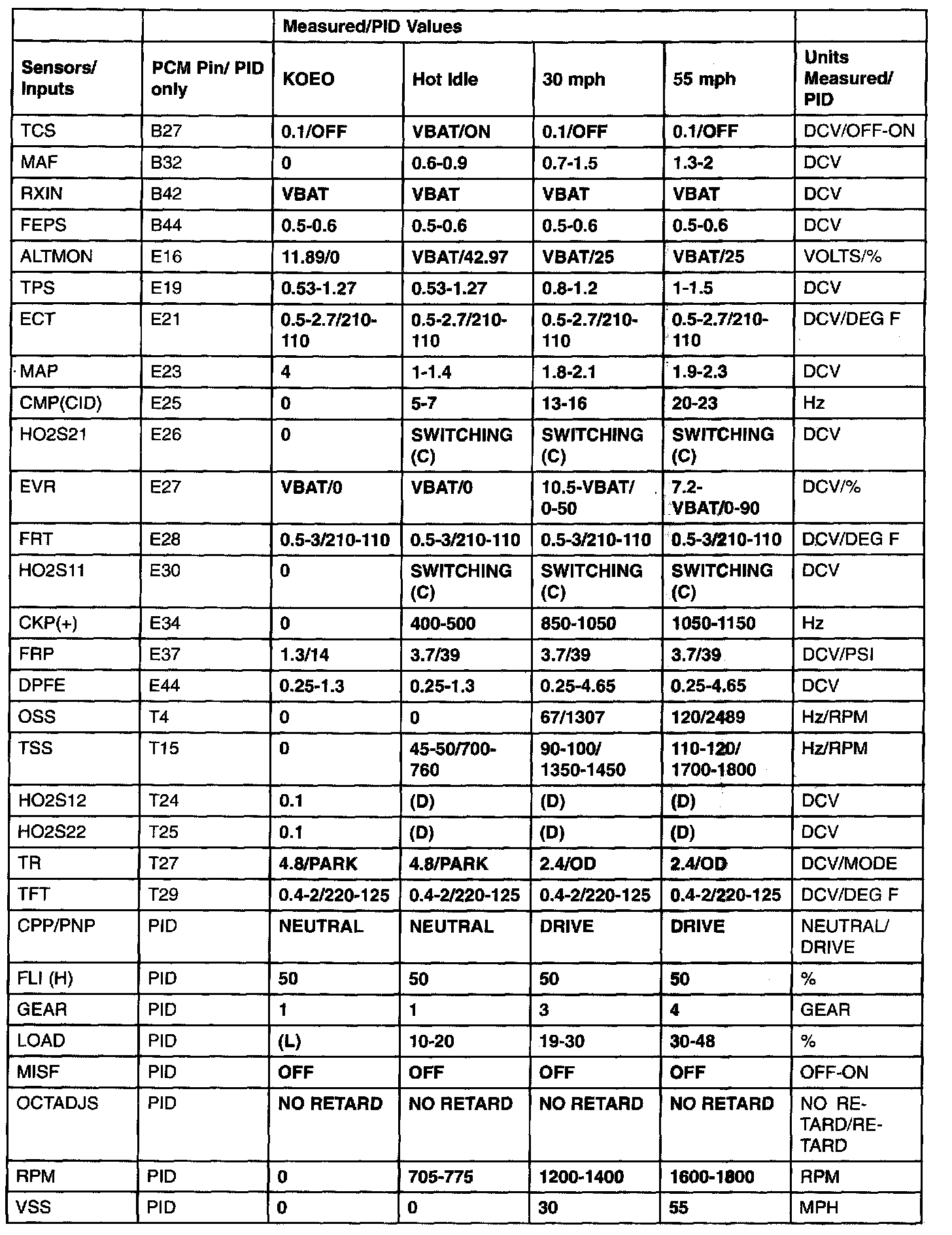

PID/DATA Monitor Reference Value (A/T) (Part 2):

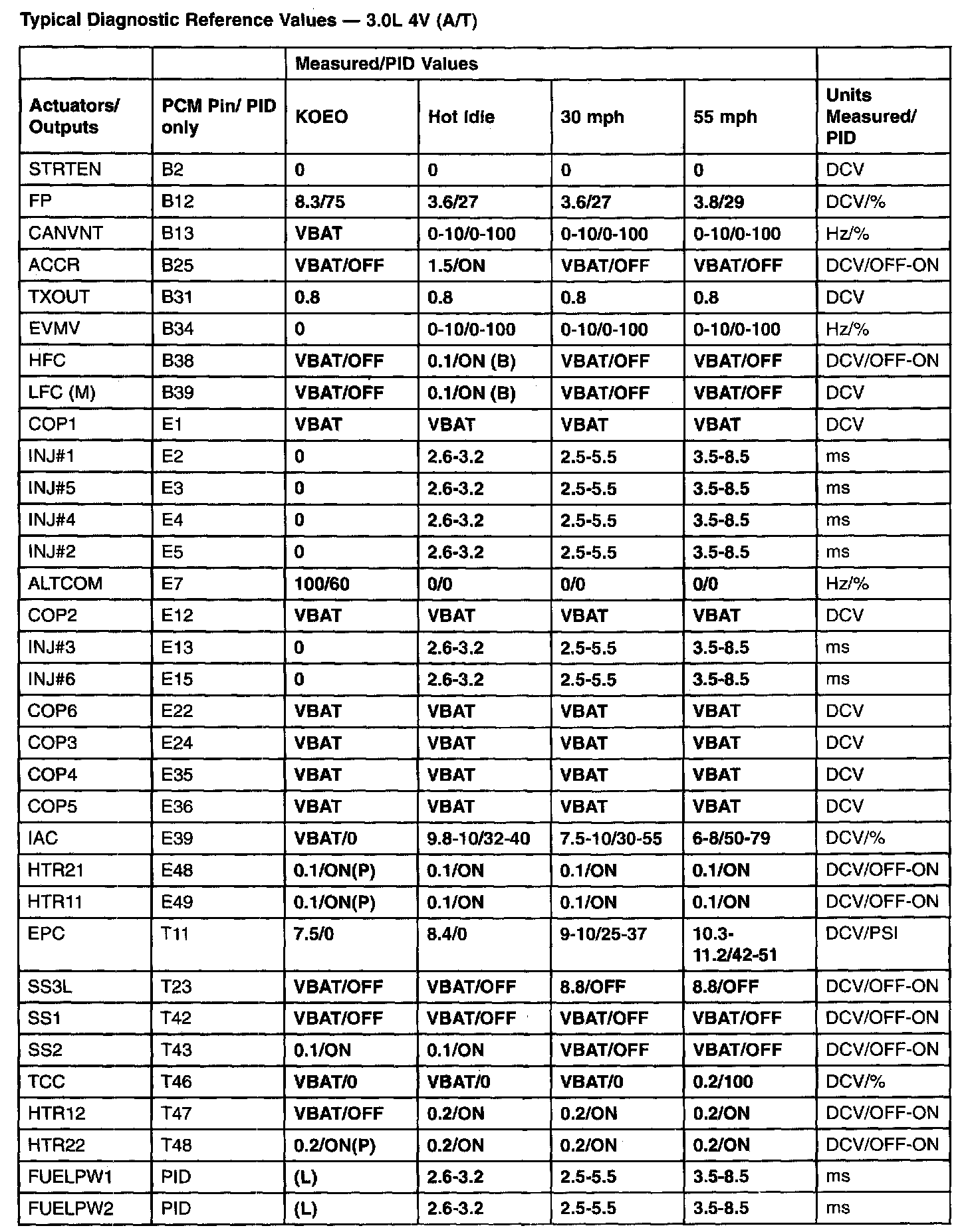

Typical Diagnostic Reference Values - (A/T) (Part 1):

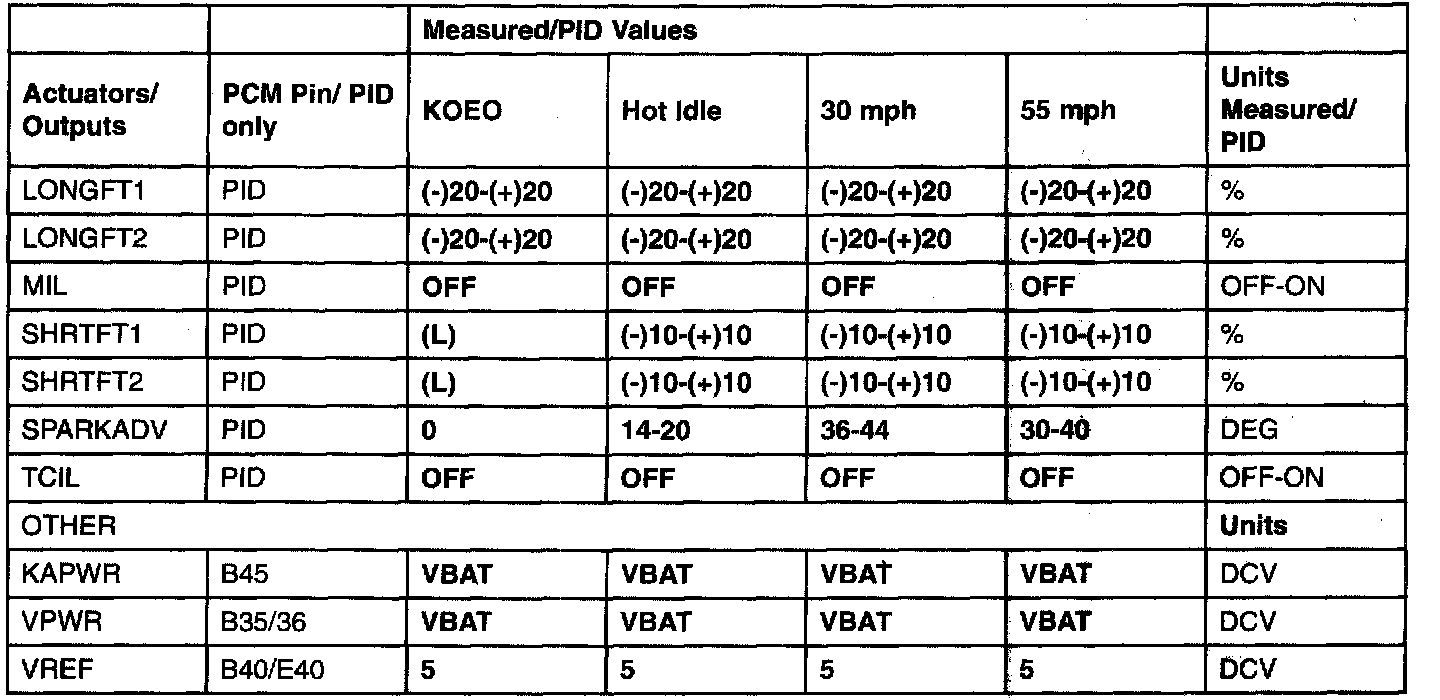

Typical Diagnostic Reference Values - (A/T) (Part 2):

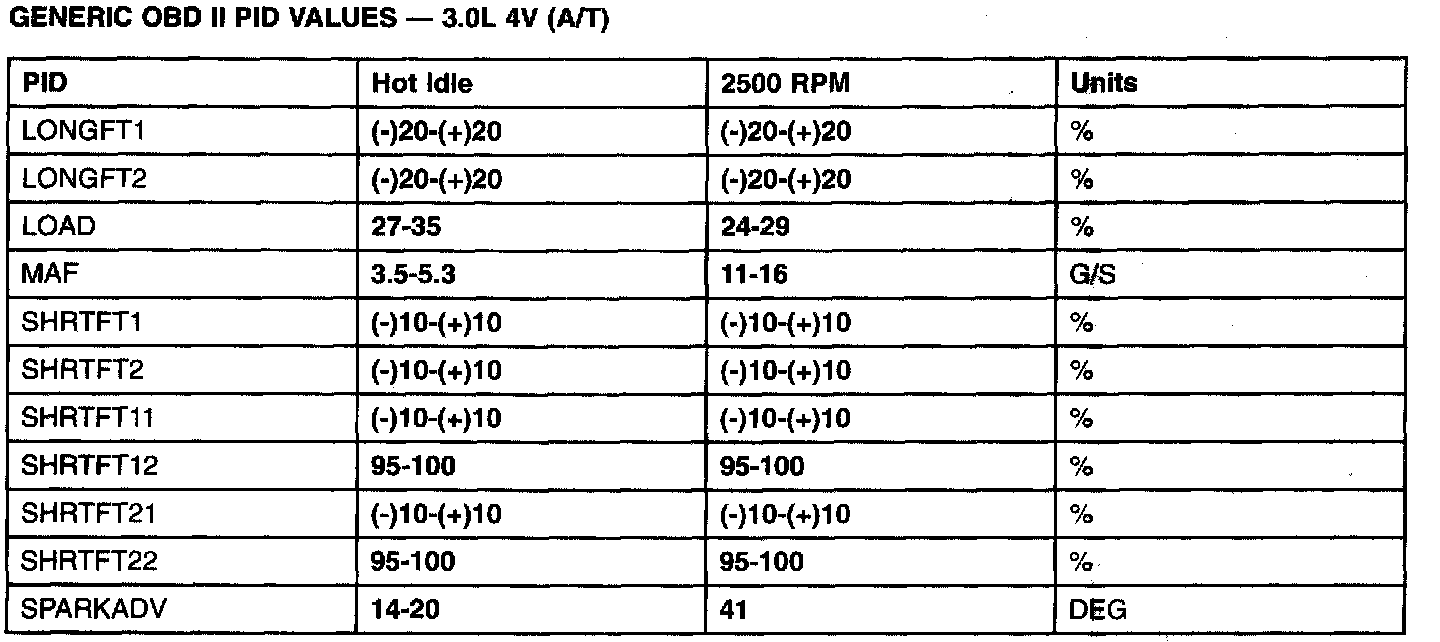

Generic OBD II Pid Values - (A/T):
