Exterior Mirror: Notes

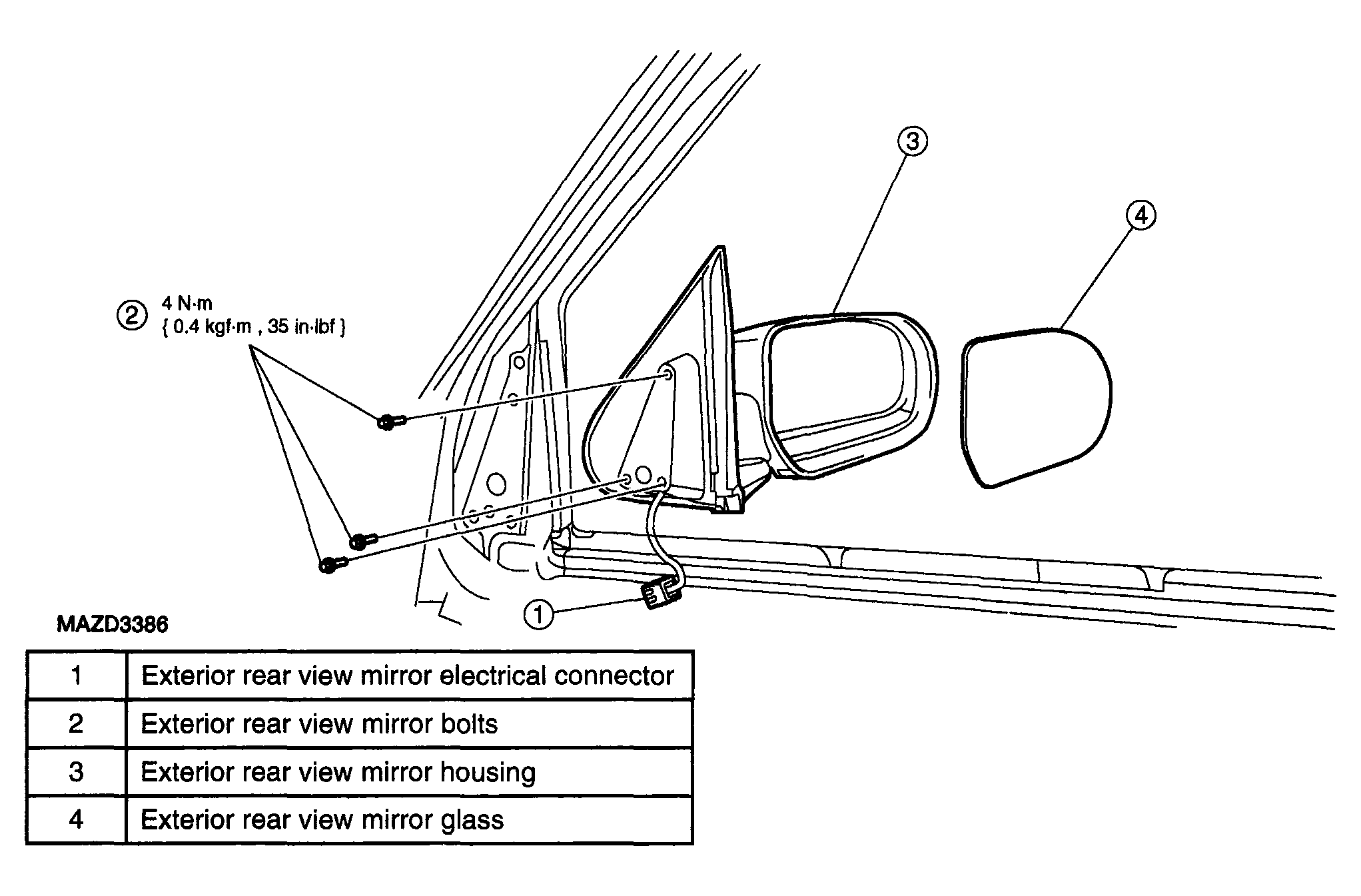

Fig 1: Exterior Rear View Mirror With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
