Front Wheel Speed Sensor And Sensor Ring: Notes

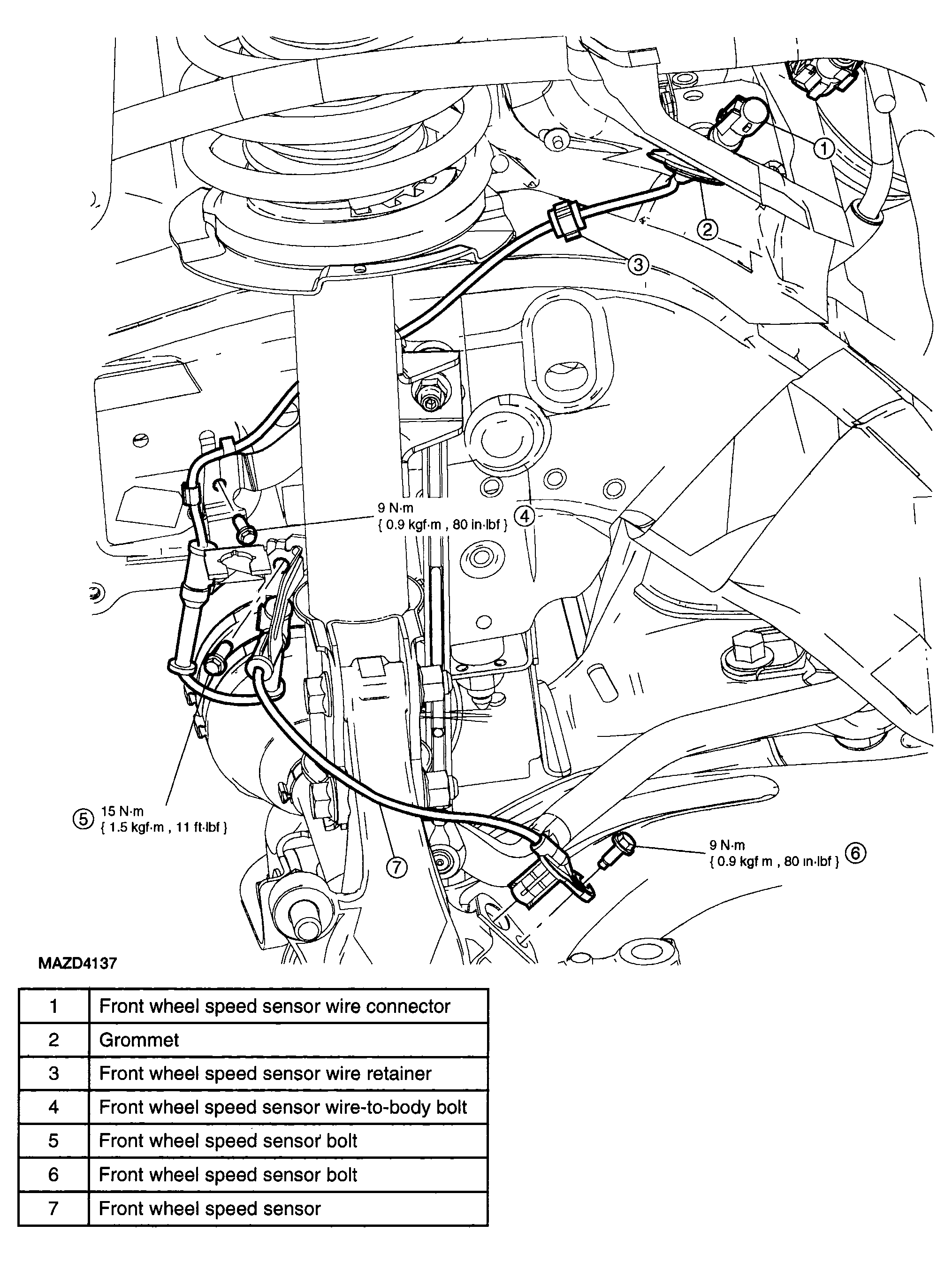

Fig 1: Front Wheel Speed Sensor And Sensor Ring Replacement Components With Torque Specifications
G04320781Courtesy of MAZDA MOTORS CORP.
