Removal and Installation

Remove the audio unit. See AUDIO UNIT .

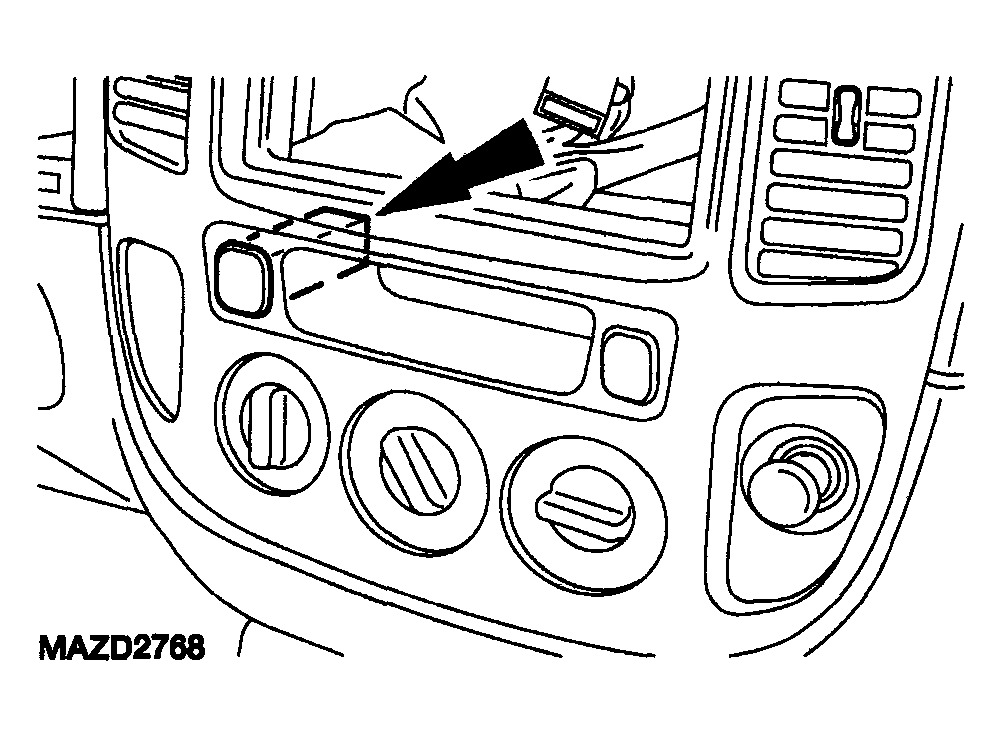

Fig 1: Pushing Outward On Rear Window Defrost Switch
Courtesy of MAZDA MOTORS CORP.
Push outward on the rear window defrost switch to remove it from the instrument panel center finish panel.
- Disconnect the electrical connector.
To install, reverse the removal procedure.
