Connector End Views - Power Windows

CONNECTOR END VIEWS - POWER WINDOWS CHART

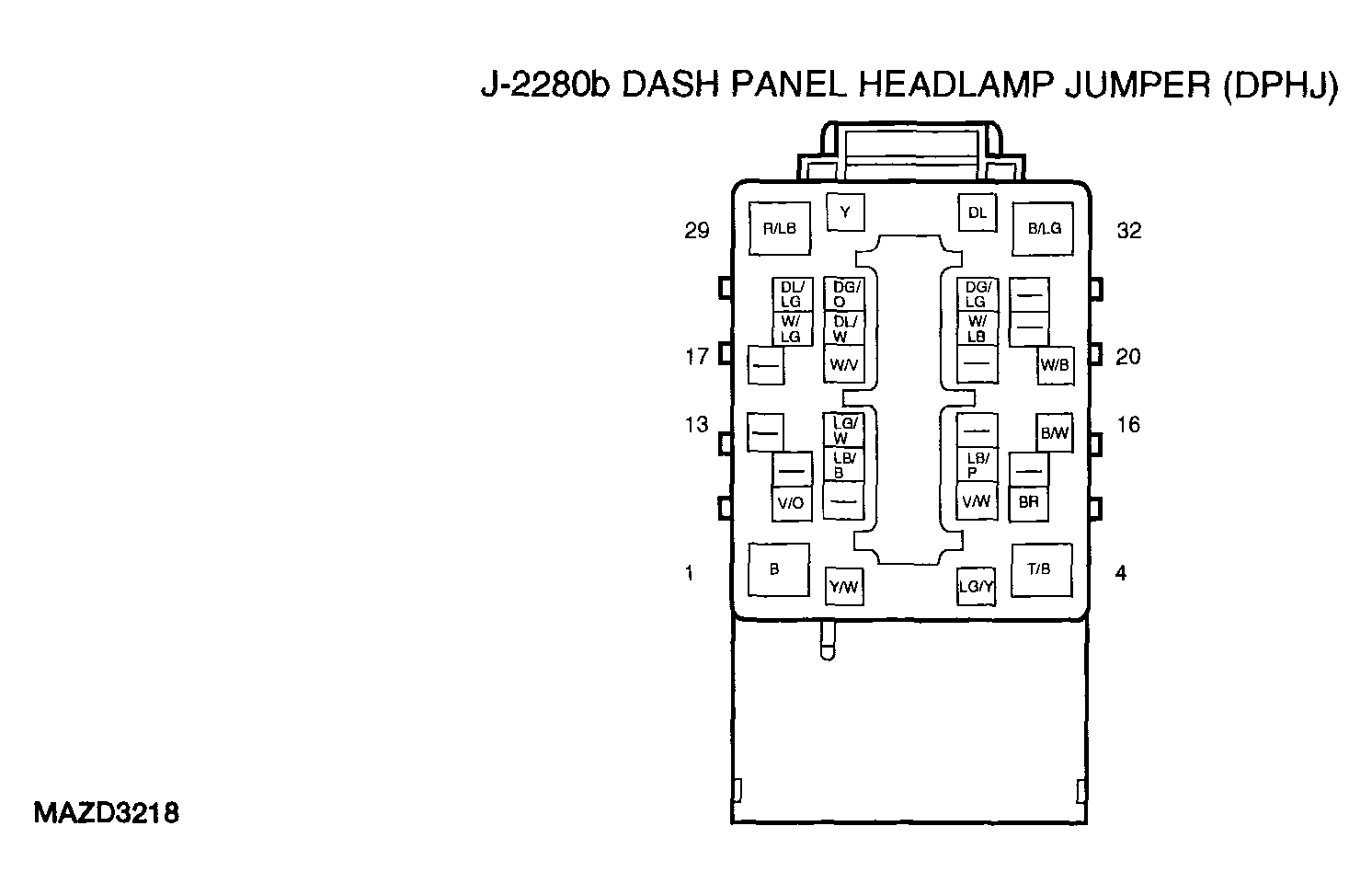

G04322407

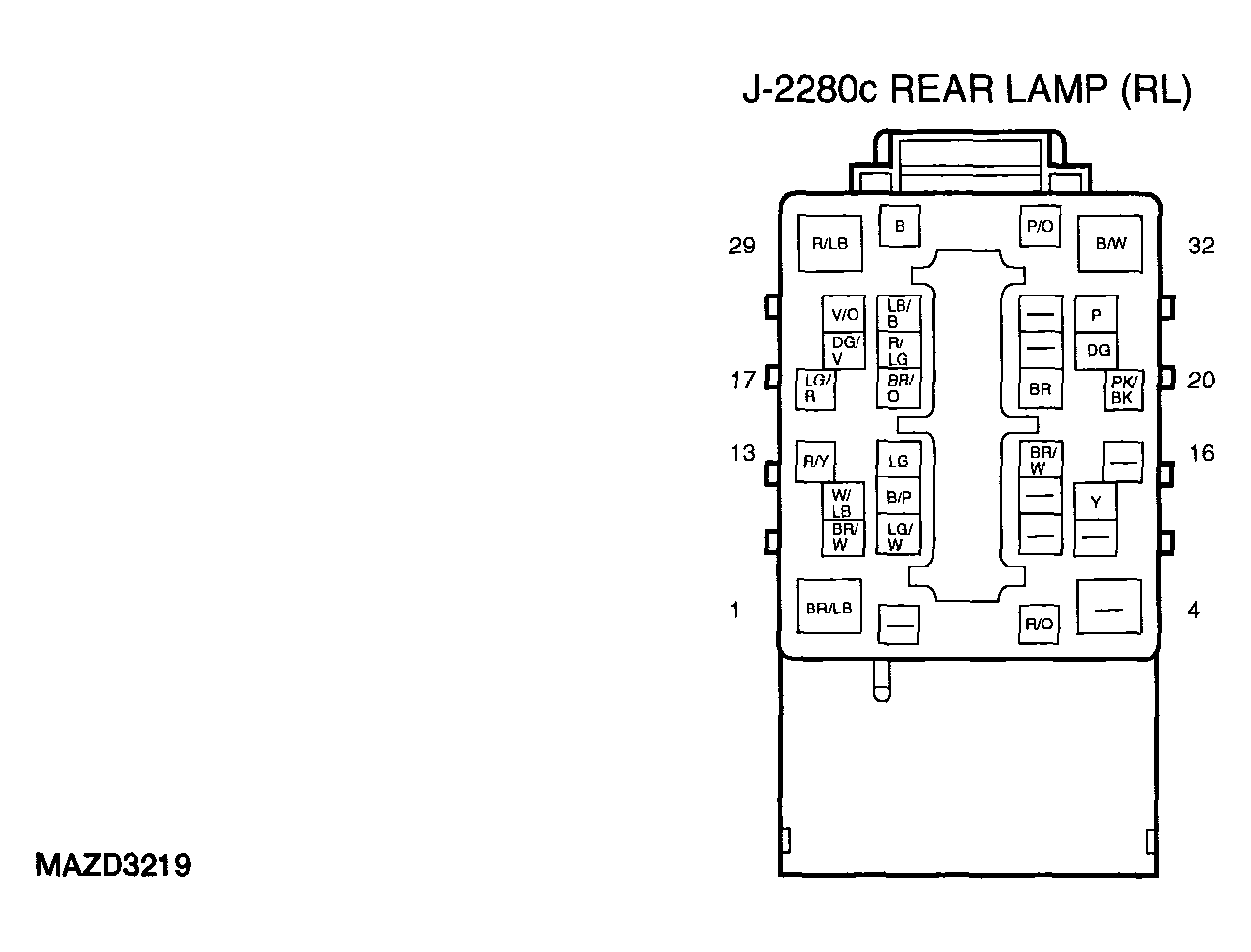

G04322408

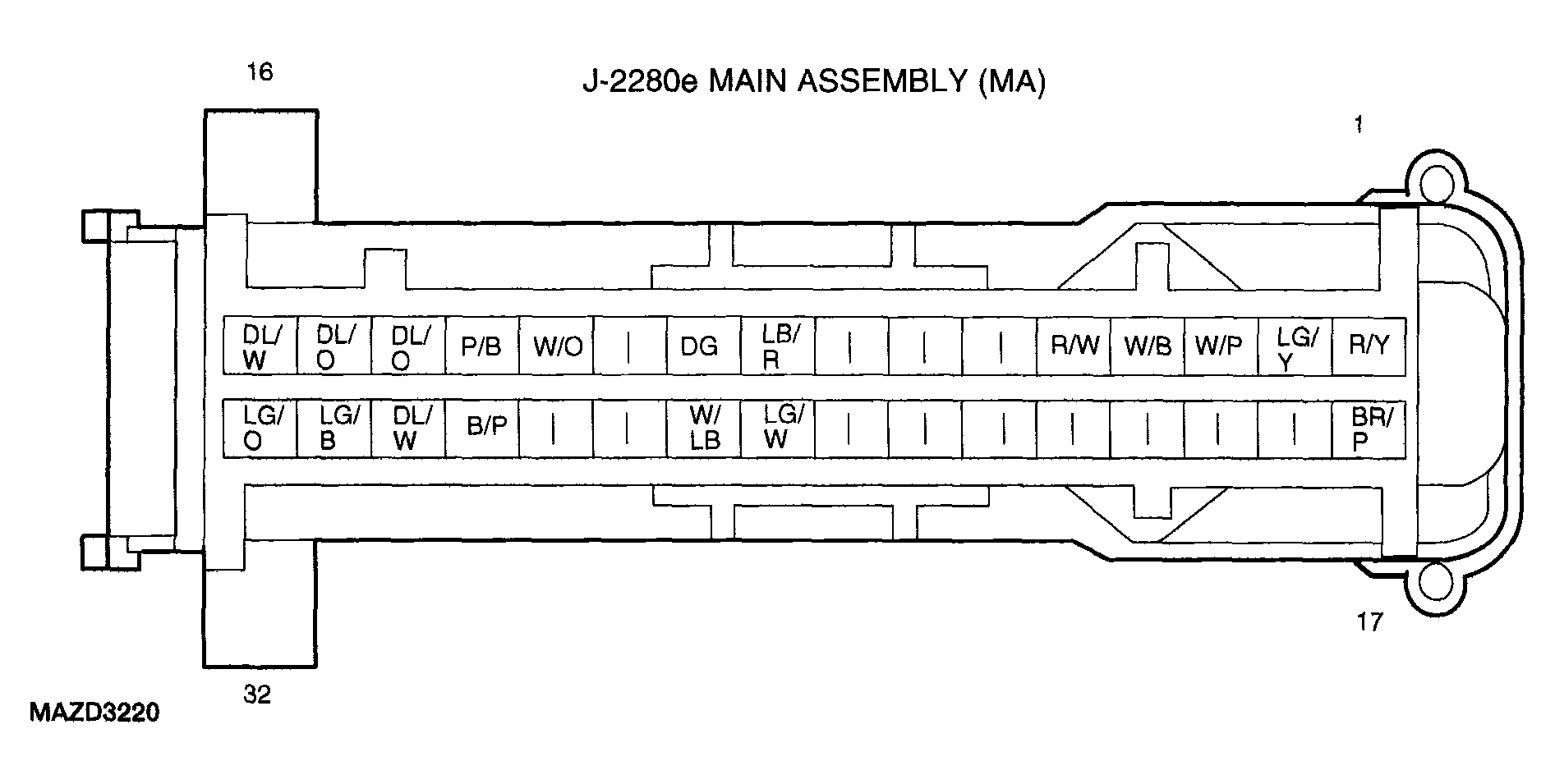

G04322409

G04322410

G04322411

G04322412

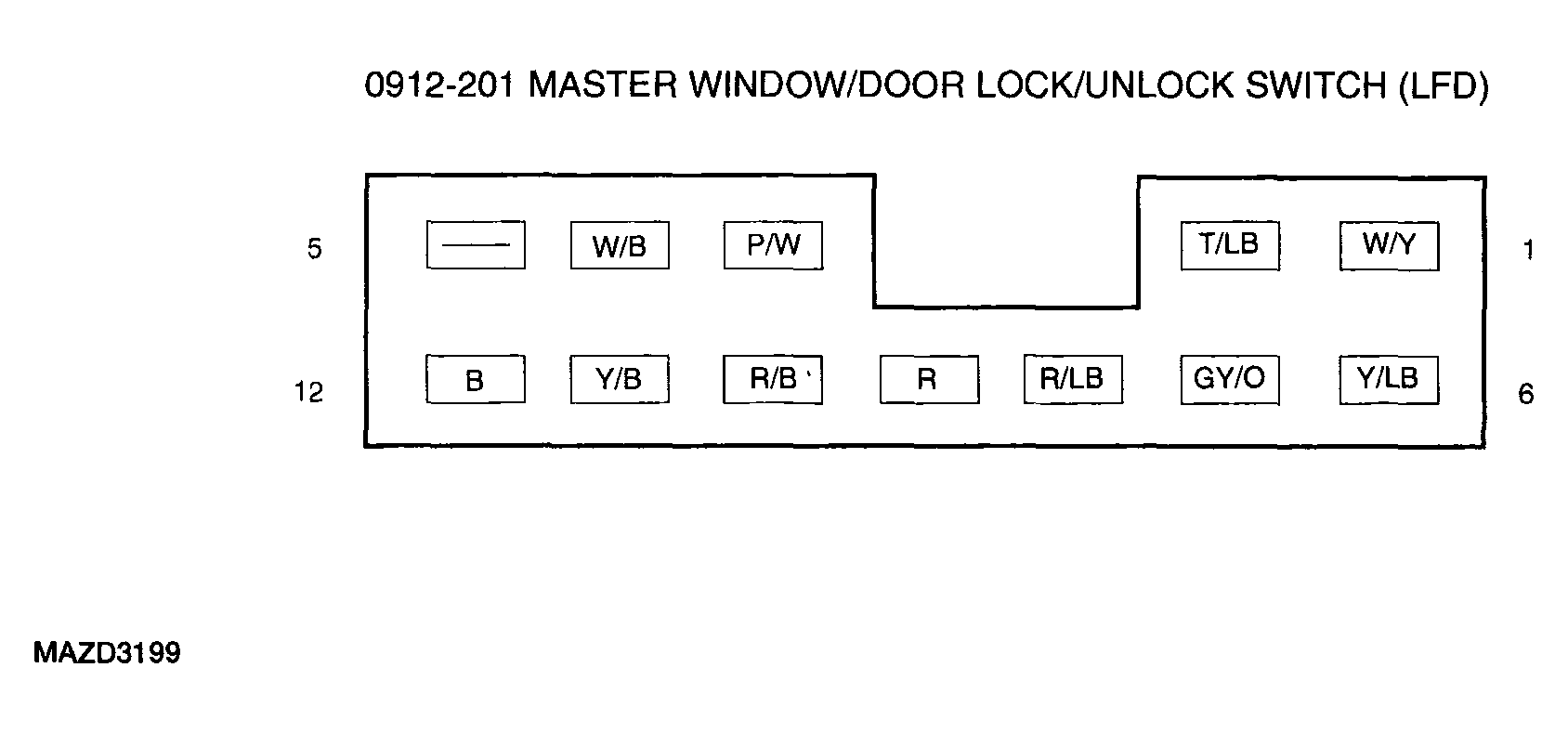

G04322413

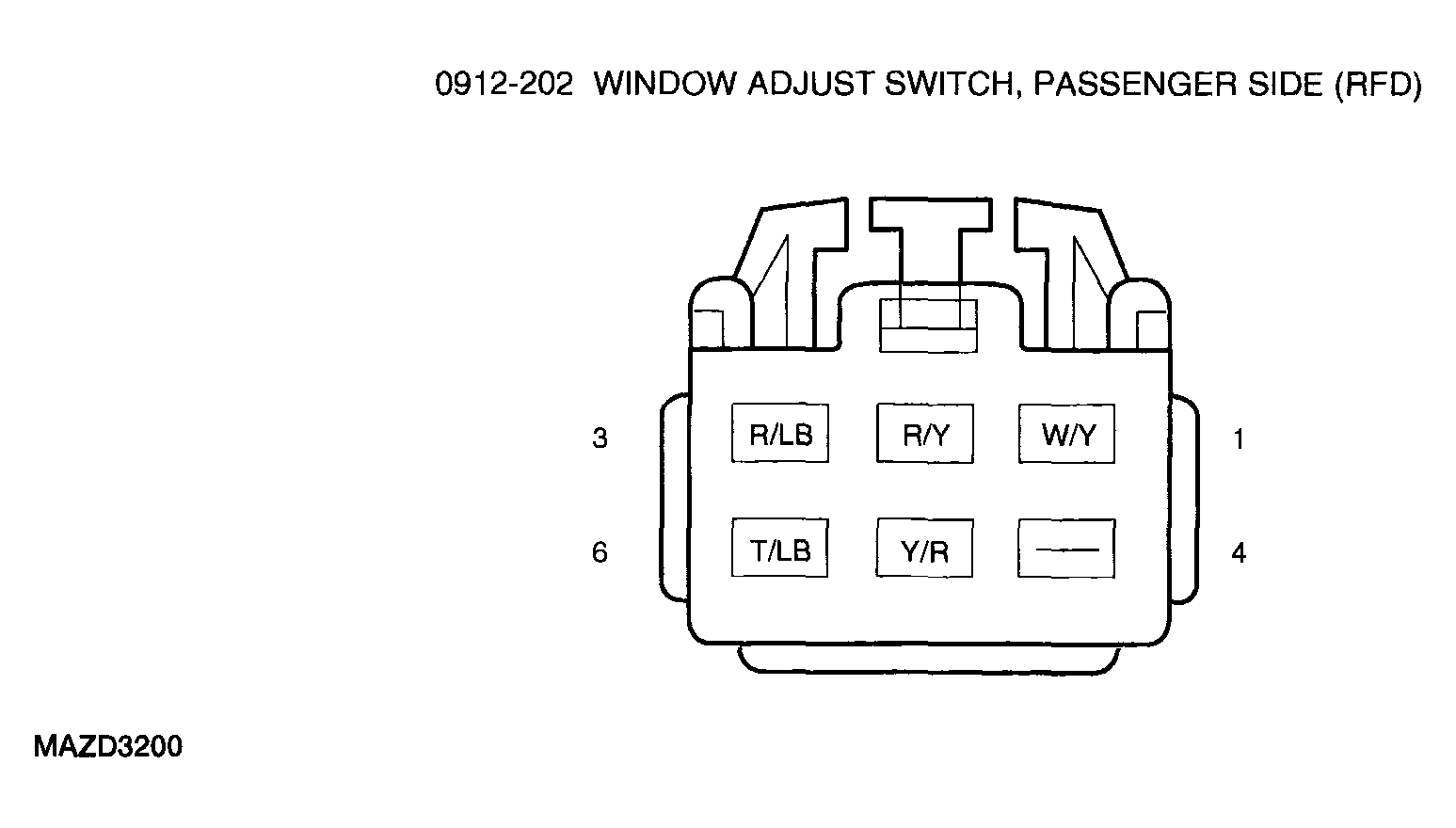

G04322414

G04322415

G04322416

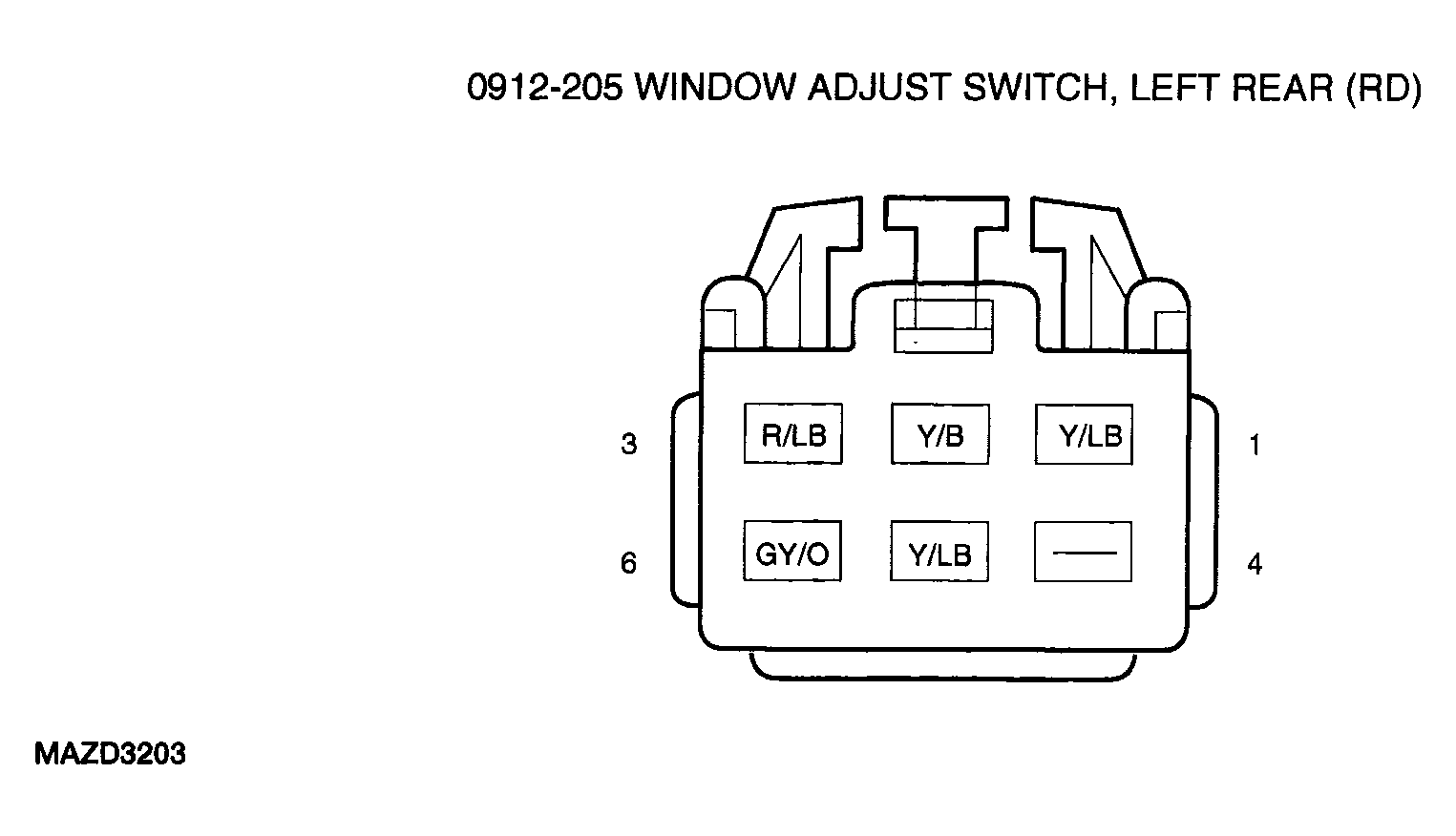

G04322417

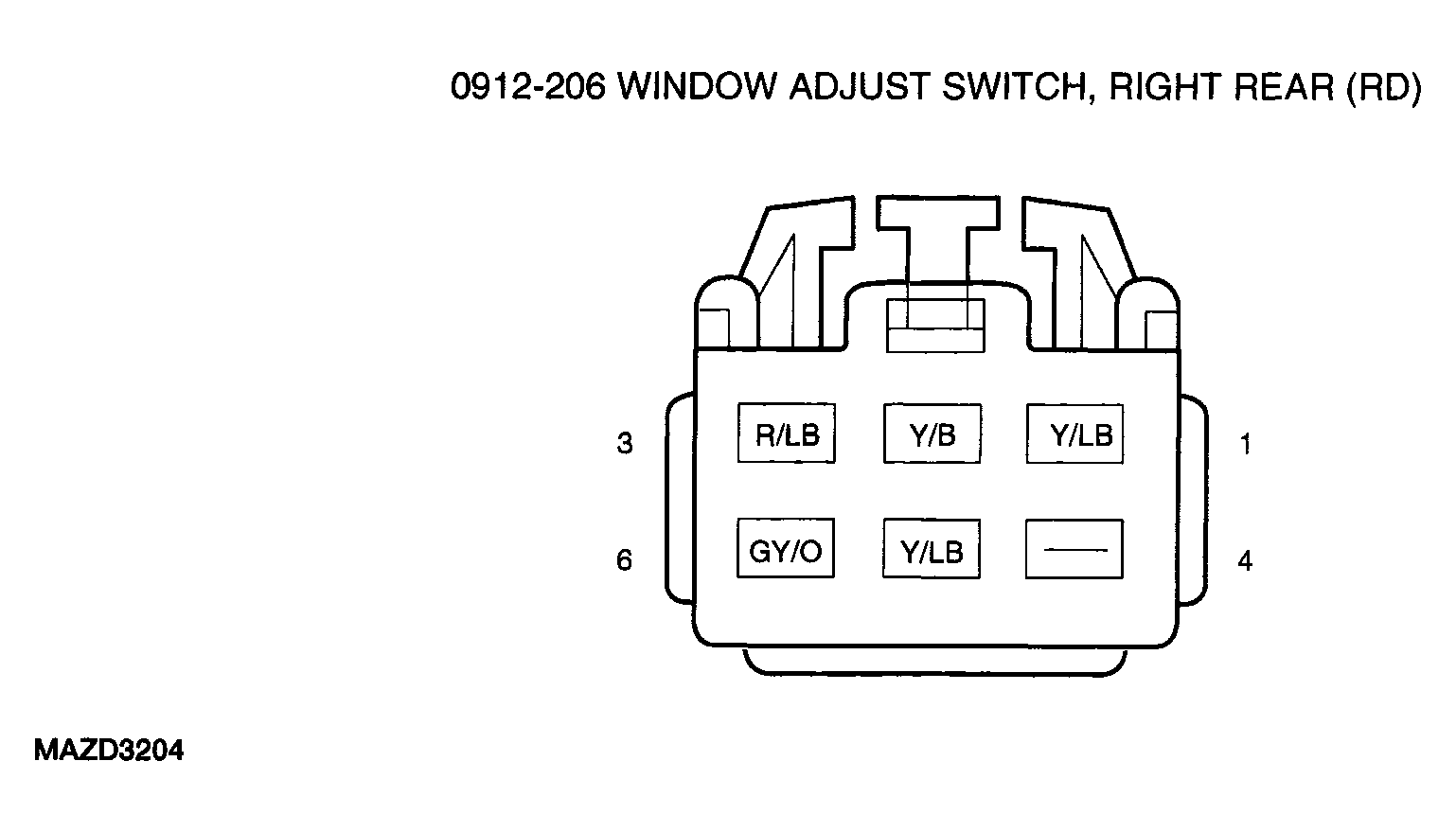

G04322418

G04322419

G04322420
