Transaxle Front Support Insulator

WARNING: This page is about a different variant/trim than selected.

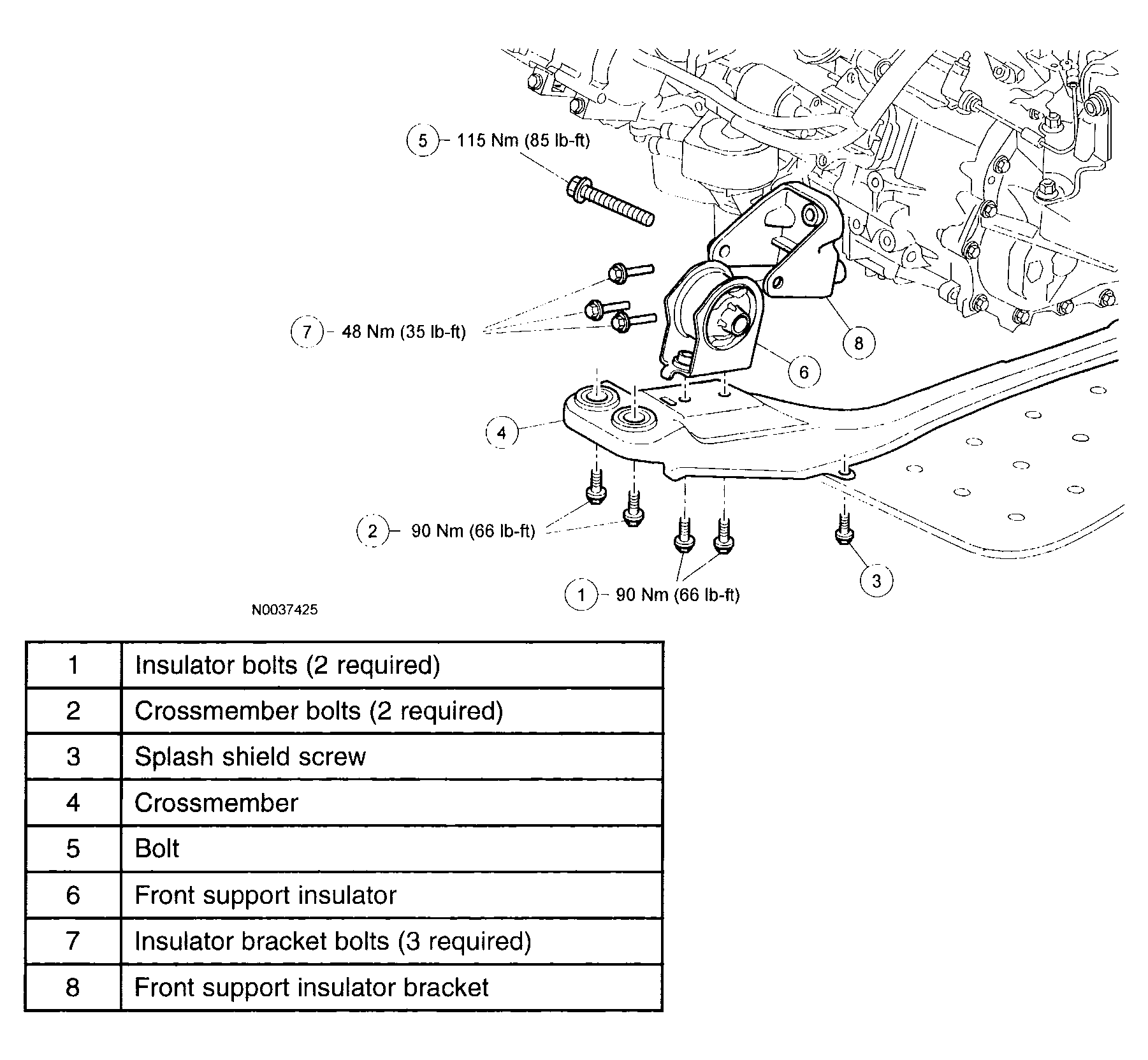

Fig 1: Bolt And Transaxle Front Support Insulator With Torque Specification

G04321001

Courtesy of MAZDA MOTORS CORP.

Using the engine support bar SST 303-F072, support the engine.
Raise and support the vehicle on a hoist. See LIFTING .
Remove the front support insulator and cross member.
1. Remove the front support insulator bolts.

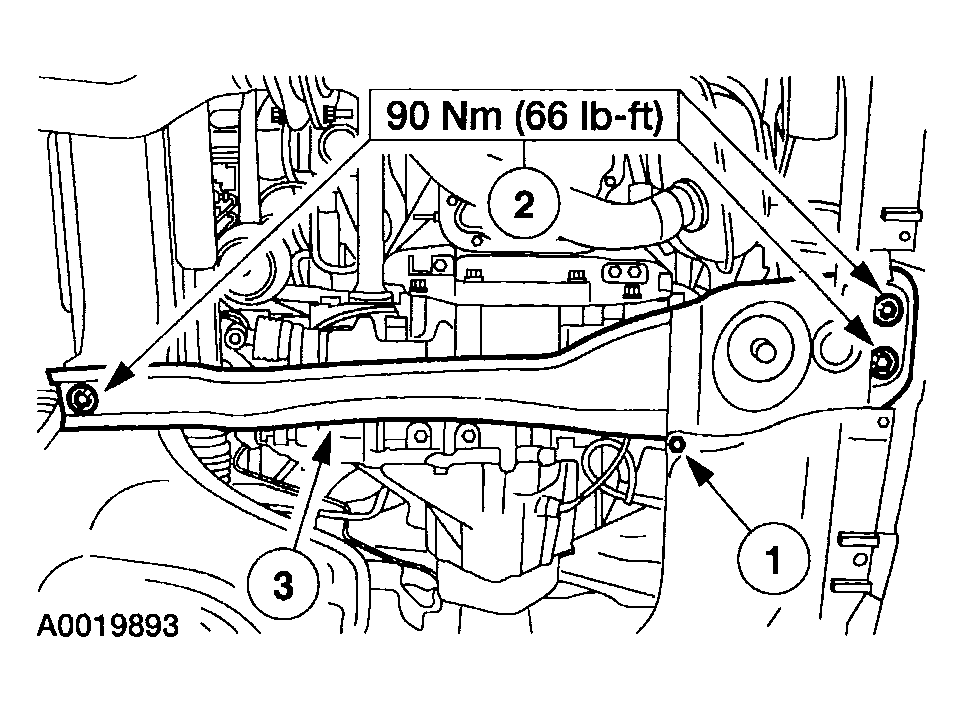

  Fig 2: Removing Bracket Bolts And Crossmember With Torque Specification
  Courtesy of MAZDA MOTORS CORP.
2. Remove the crossmember.
  1. Remove the splash shield screw.
  2. Remove the bolts and the nut.
  3. Remove the crossmember.
3. Remove the insulator cross bolt.
4. Remove the front support insulator.
5. Remove the bracket bolts.
6. Remove the bracket.
To install, reverse the removal procedure.
