Power Steering Pump - 2.3L: Notes

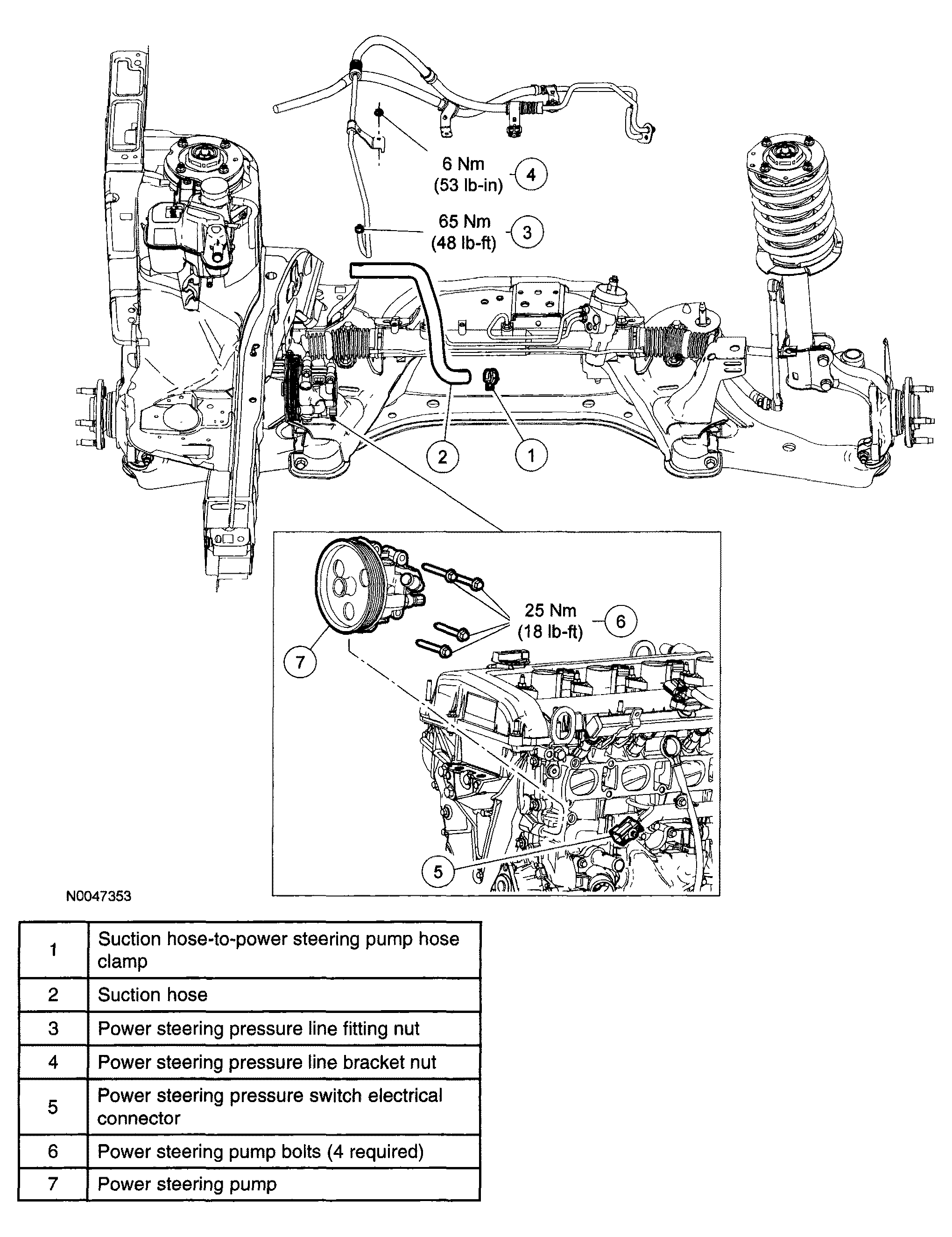

Fig 1: Exploded View Of Power Steering Pump - 2.3L With Torque Specifications
G04321877Courtesy of MAZDA MOTORS CORP.
