System Schematic

AUTOMATIC TRANSAXLE CONTROL SYSTEM WIRING DIAGRAM [FN4A-EL]

California Emission Regulation Applicable Model

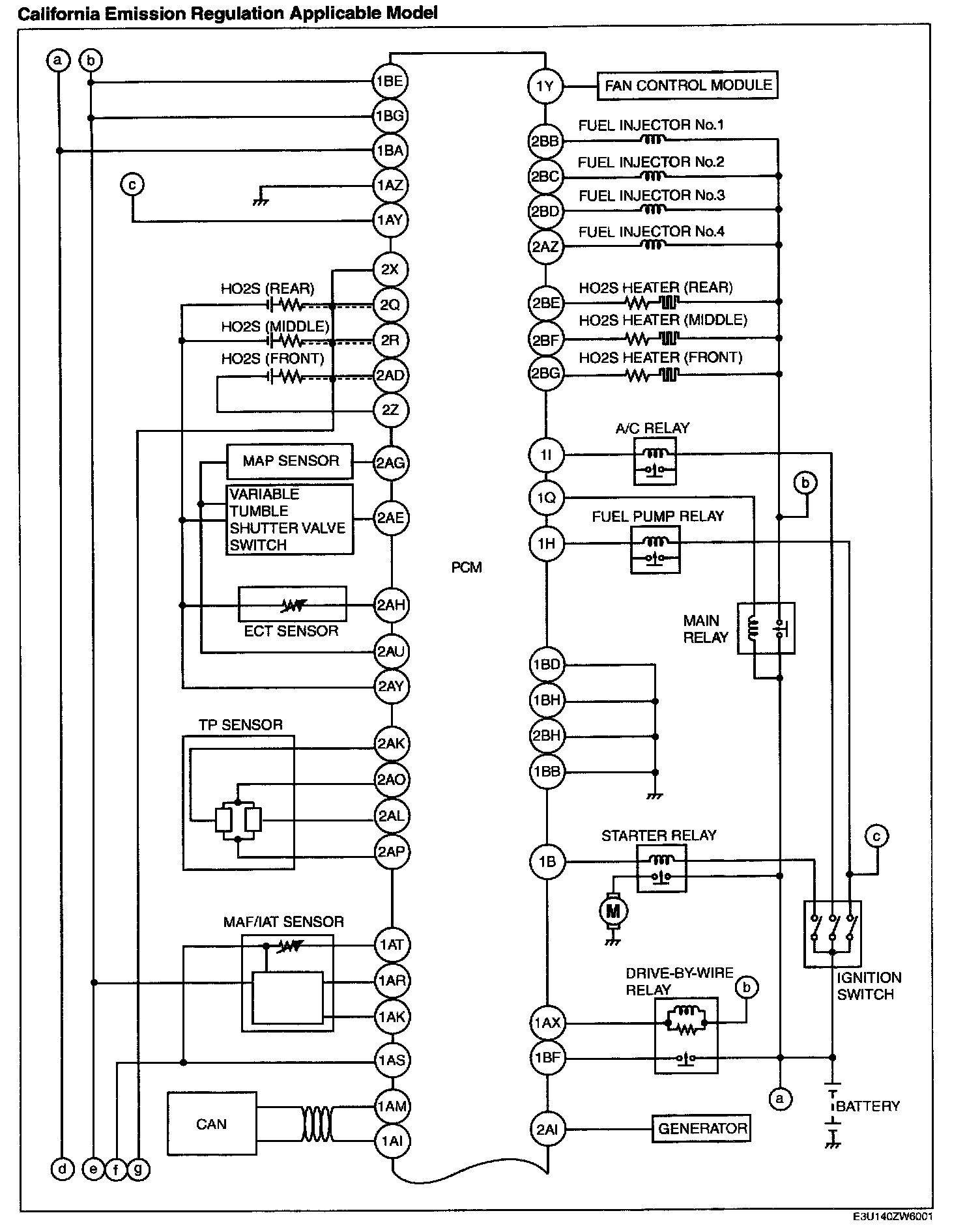

Diagram 05-02A-2:

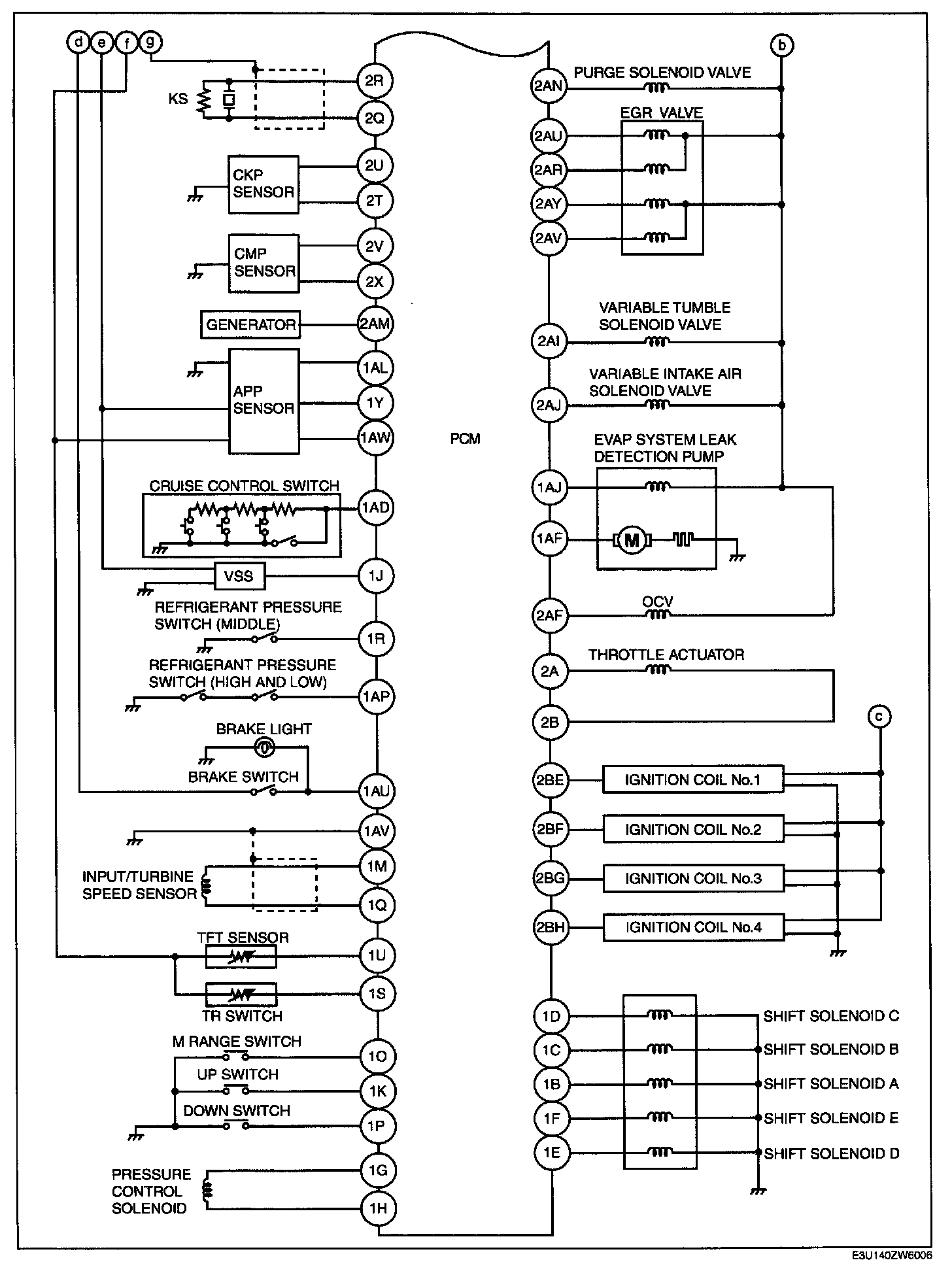

Diagram 05-02A-3:





Except for California Emission Regulation Applicable Model

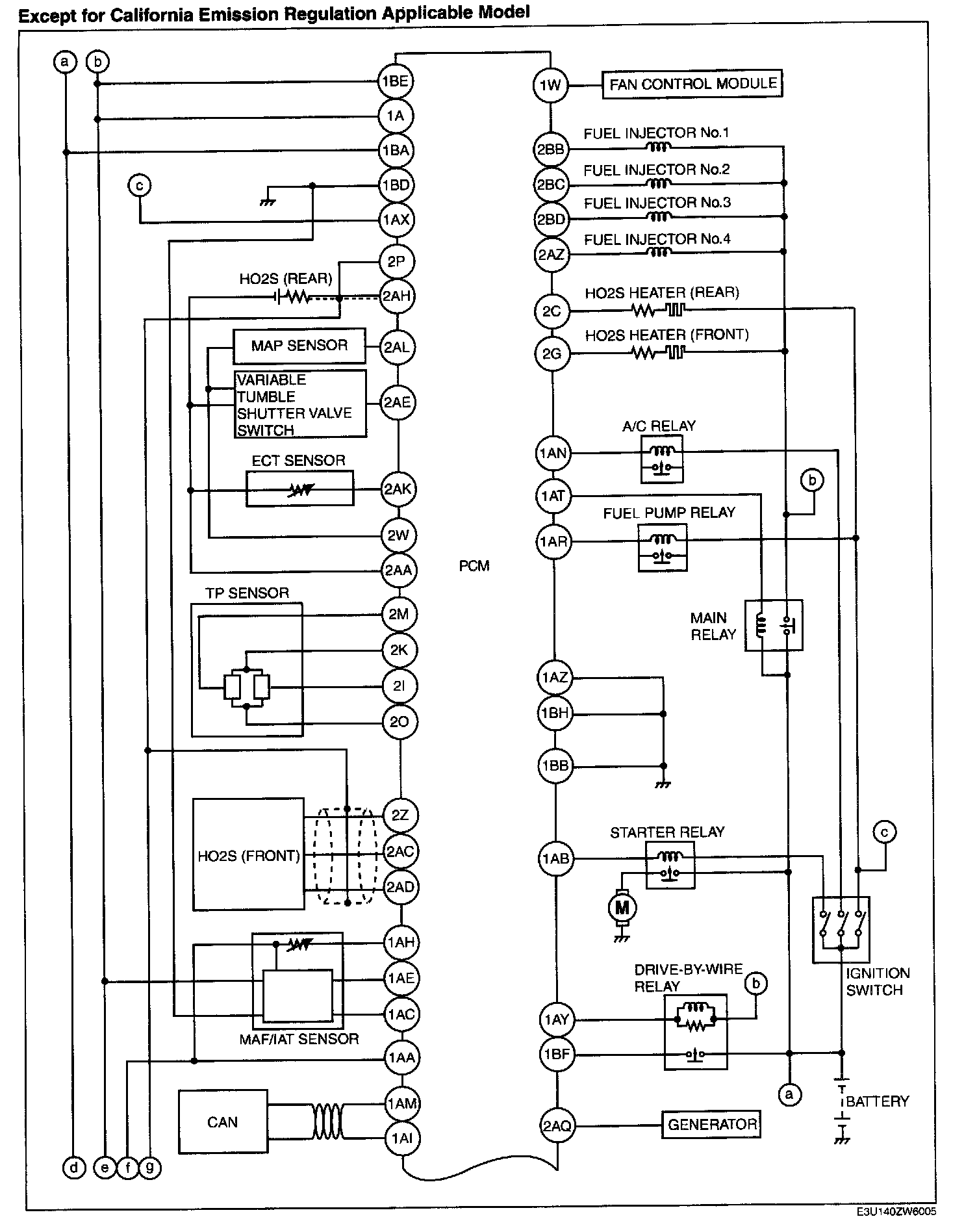

Diagram 05-02A-4:

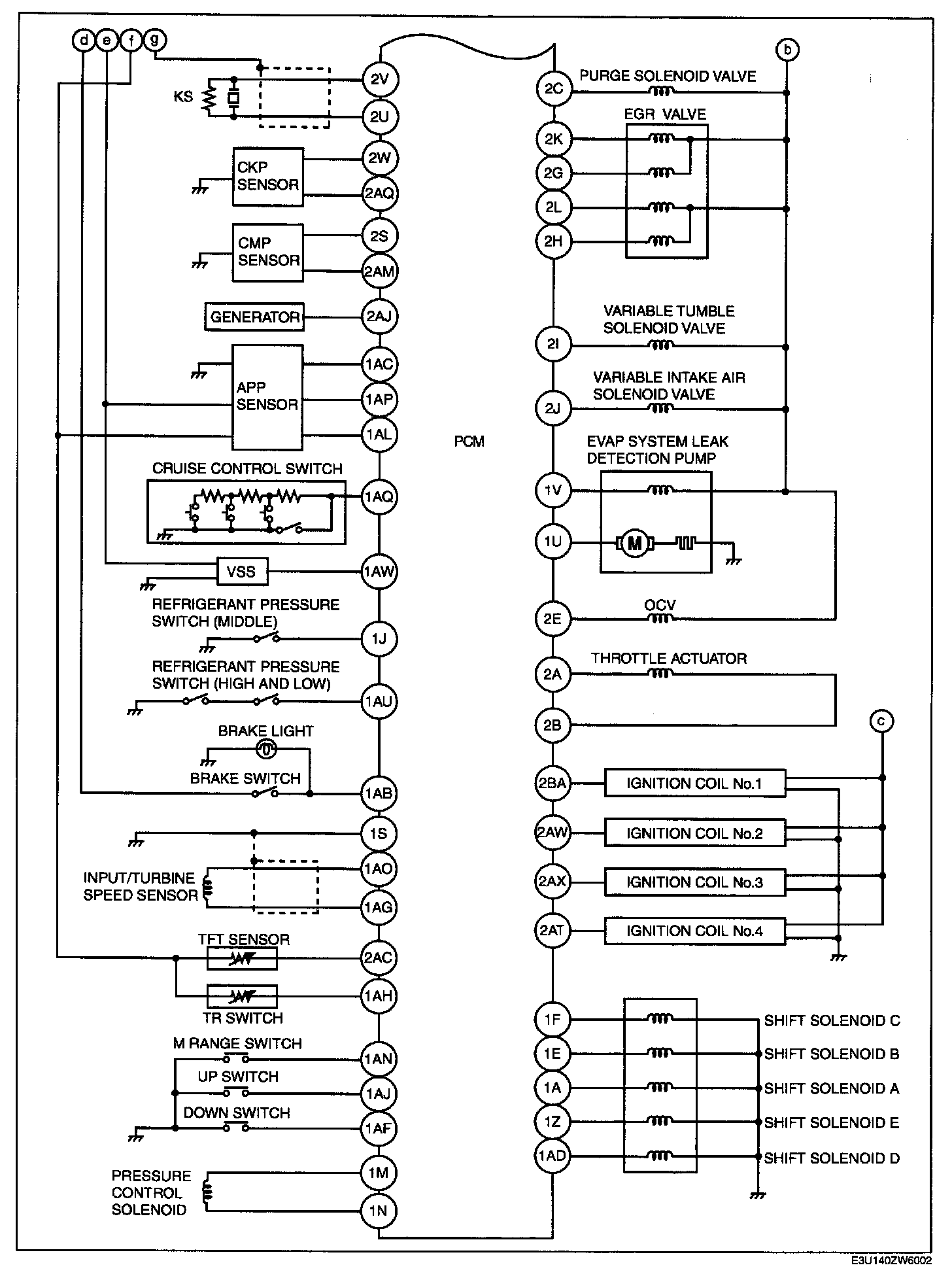

Diagram 05-02A-5:
