Rear

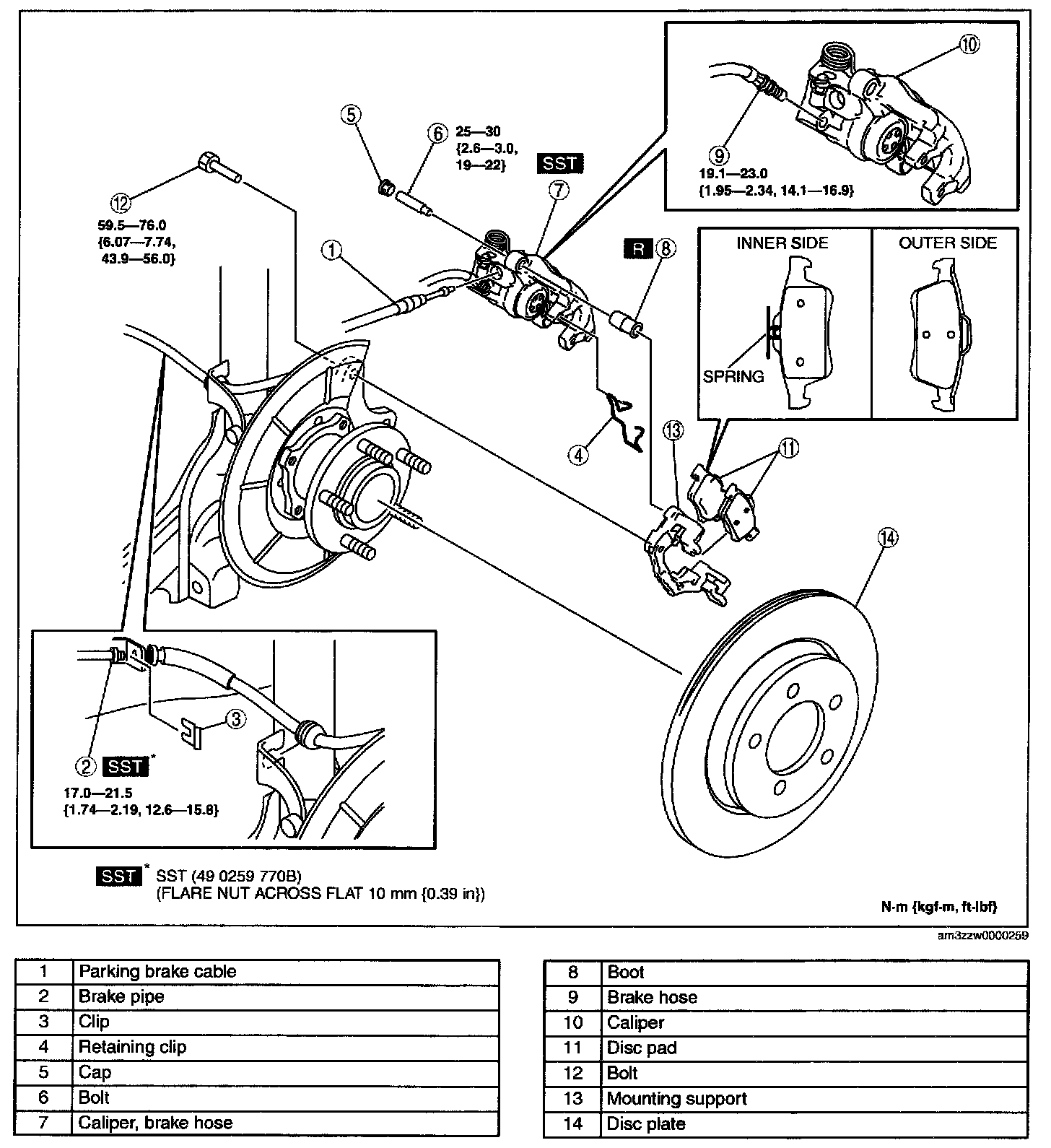

REAR BRAKE (DISC) REMOVAL/INSTALLATION
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, pump the brake pedal a few times and inspect the following:
- Parking brake lever stroke
- Brake drag





Caliper, Brake Hose Installation Note





1. Clean the exposed area of the piston.
2. Slowly rotate the piston clockwise while firmly pushing it to the caliper body using the SST and push the piston completely into the caliper body.

Warning: If the SST comes off the piston, it may cause other parts to crush against your hand causing injury. Be careful that the SST remains firmly connected to the piston when you push the piston into the caliper body.

3. Install the caliper, brake hose.
