Front Power Window Motor LH

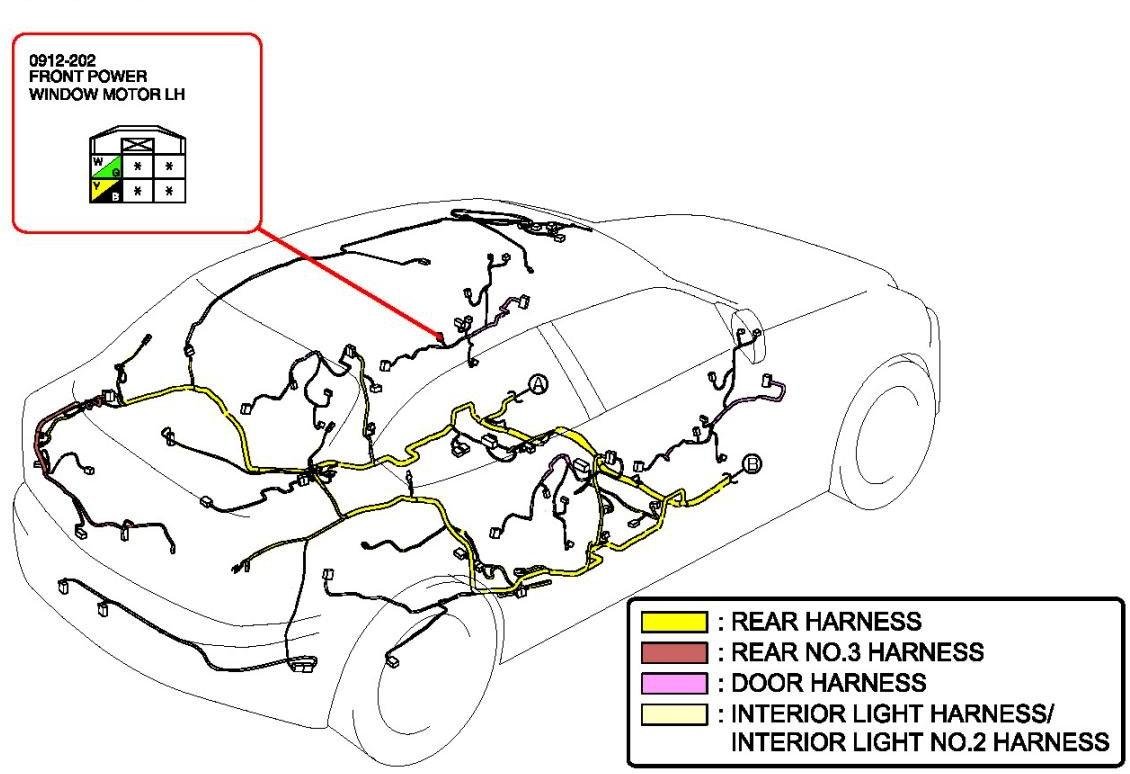

Front Power Window Motor LH:

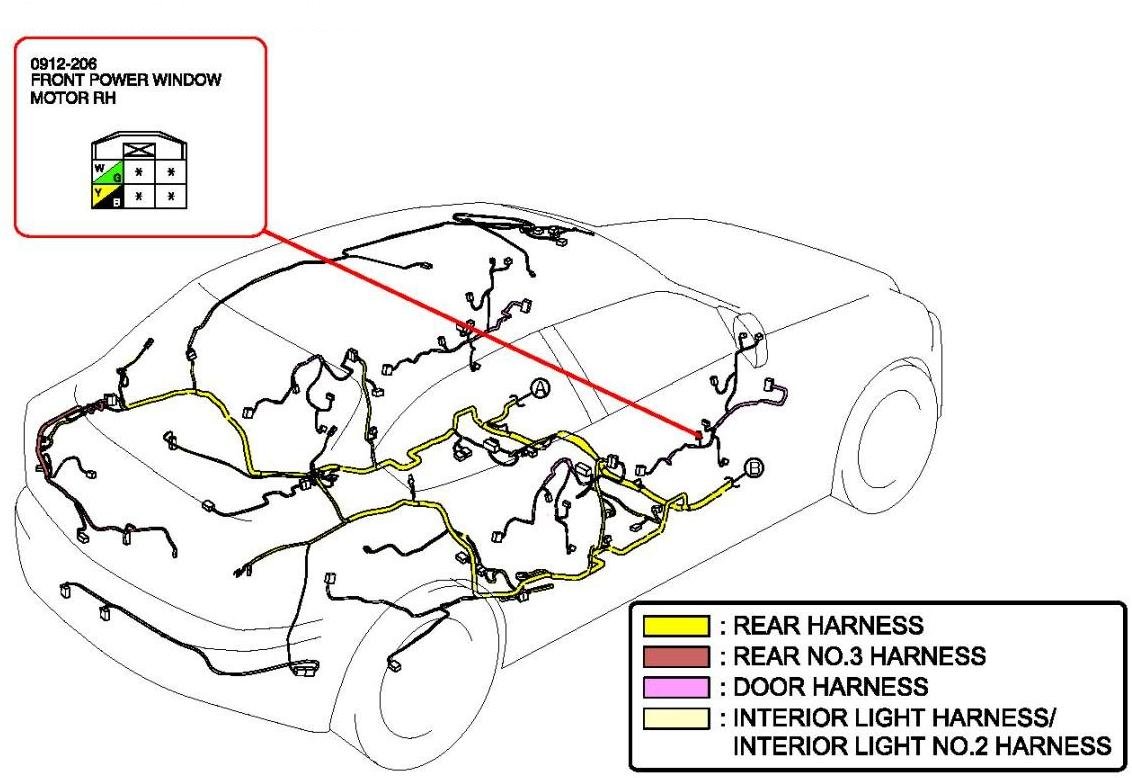

Front Power Window Motor RH:

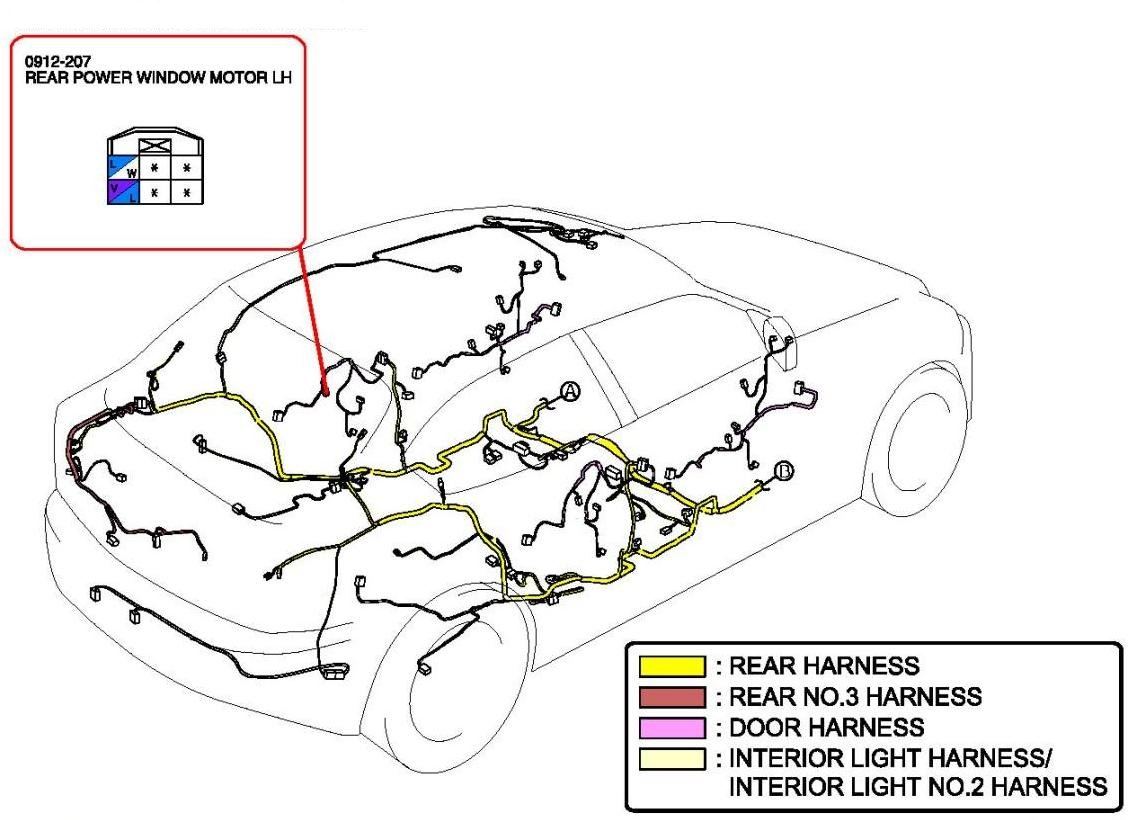

Rear Power Window Motor LH:

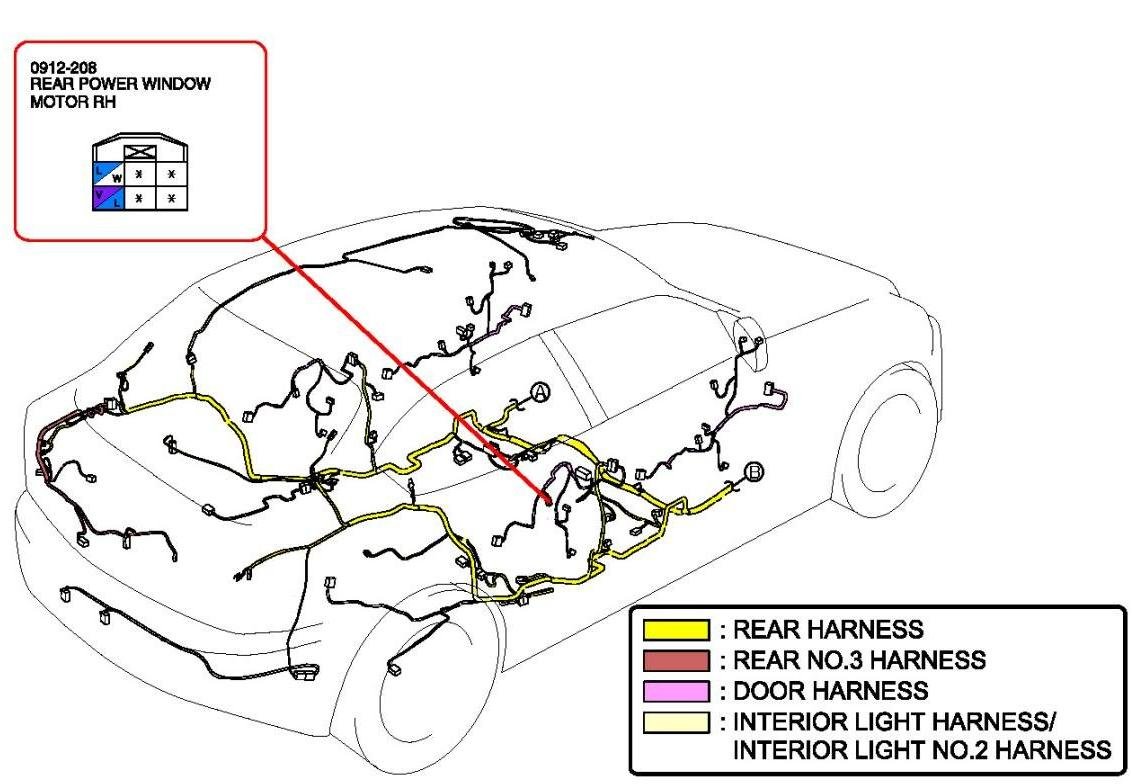

Rear Power Window Motor RH:
