[Full-Auto Air Conditioner]

CLIMATE CONTROL UNIT REMOVAL/INSTALLATION[FULL-AUTO AIR CONDITIONER]
1. Disconnect the negative battery cable.
2. Remove the ashtray panel.
3. Remove the console.
4. Remove the decoration panel.
5. Remove the center panel module.

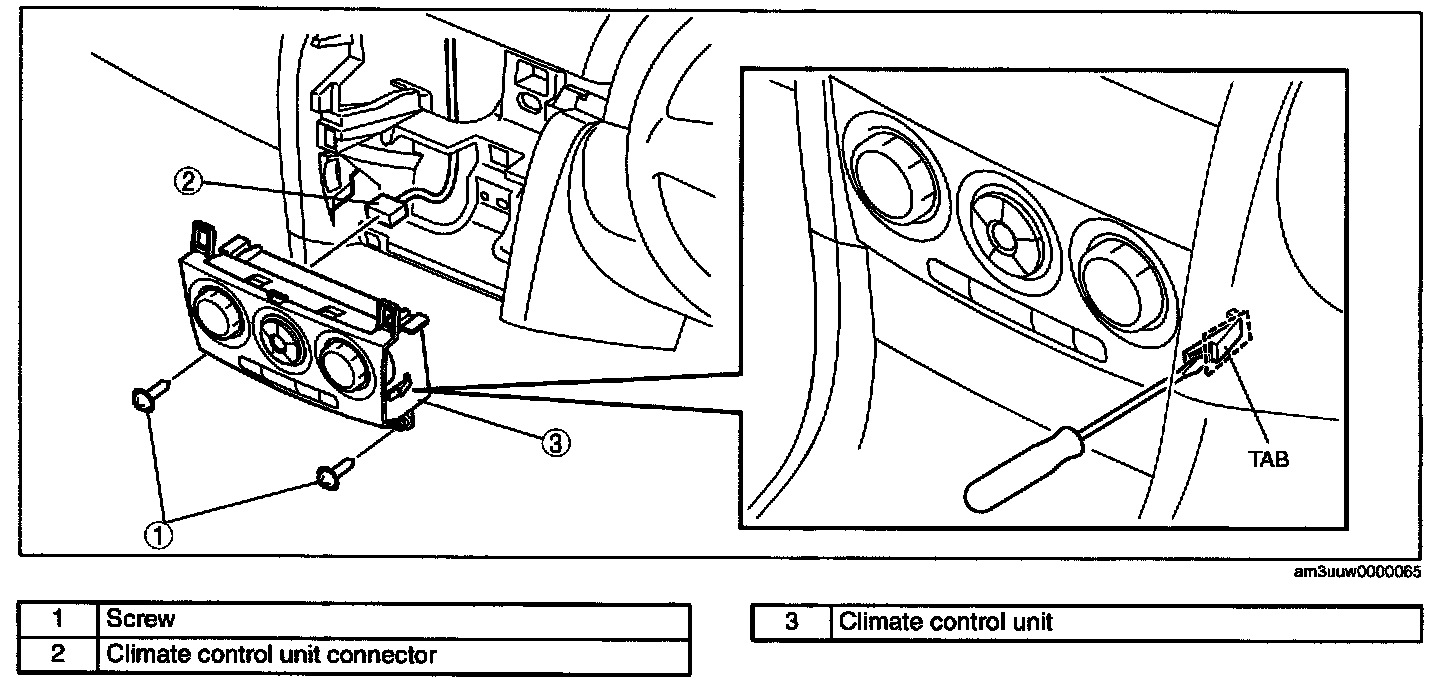

6. Release the left and right tabs and remove as shown in the figure.
7. Install in the reverse order of removal.
