Fuses and Relays



Engine Compartment:

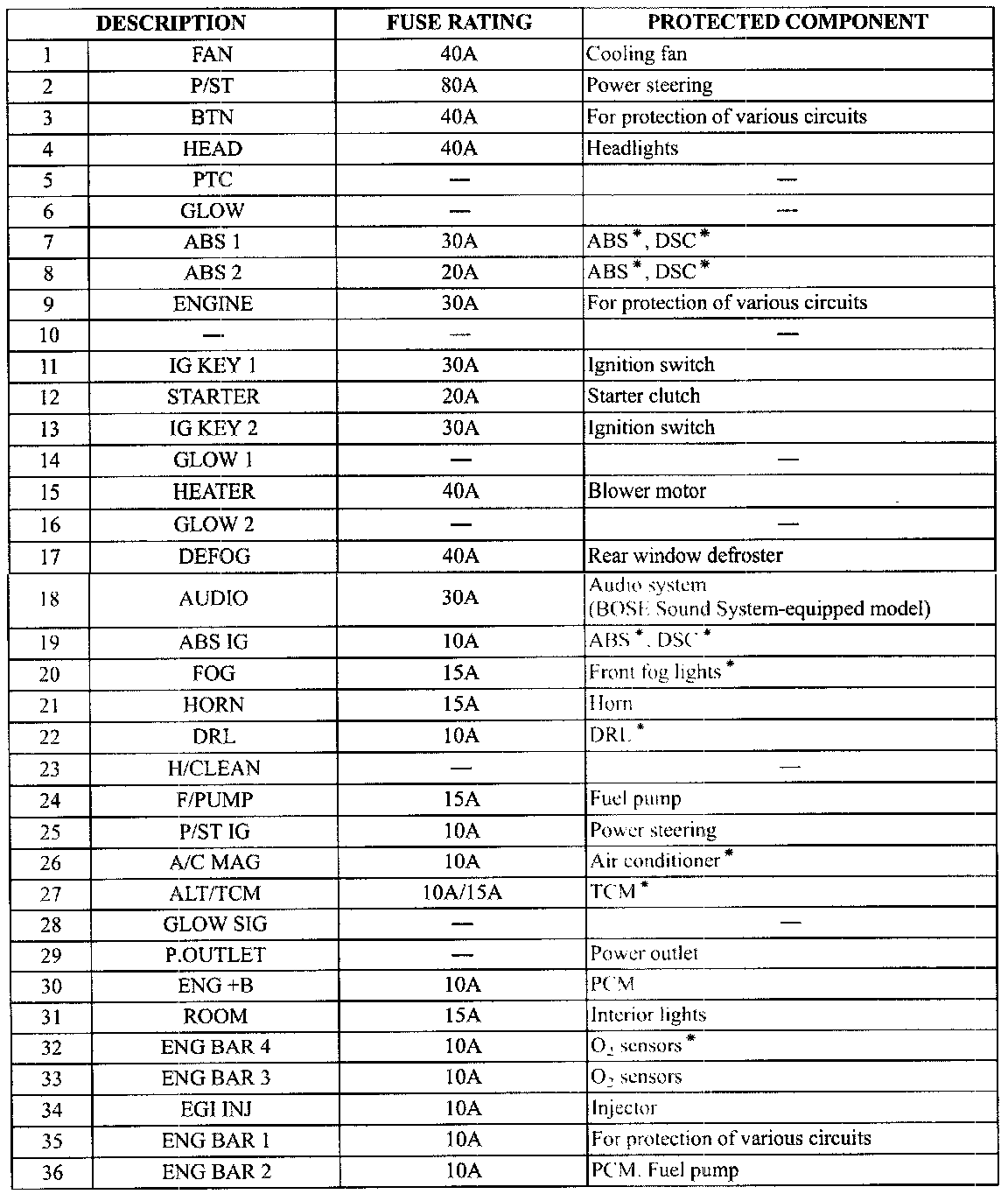

Engine Compartment (w/o Turbocharger):

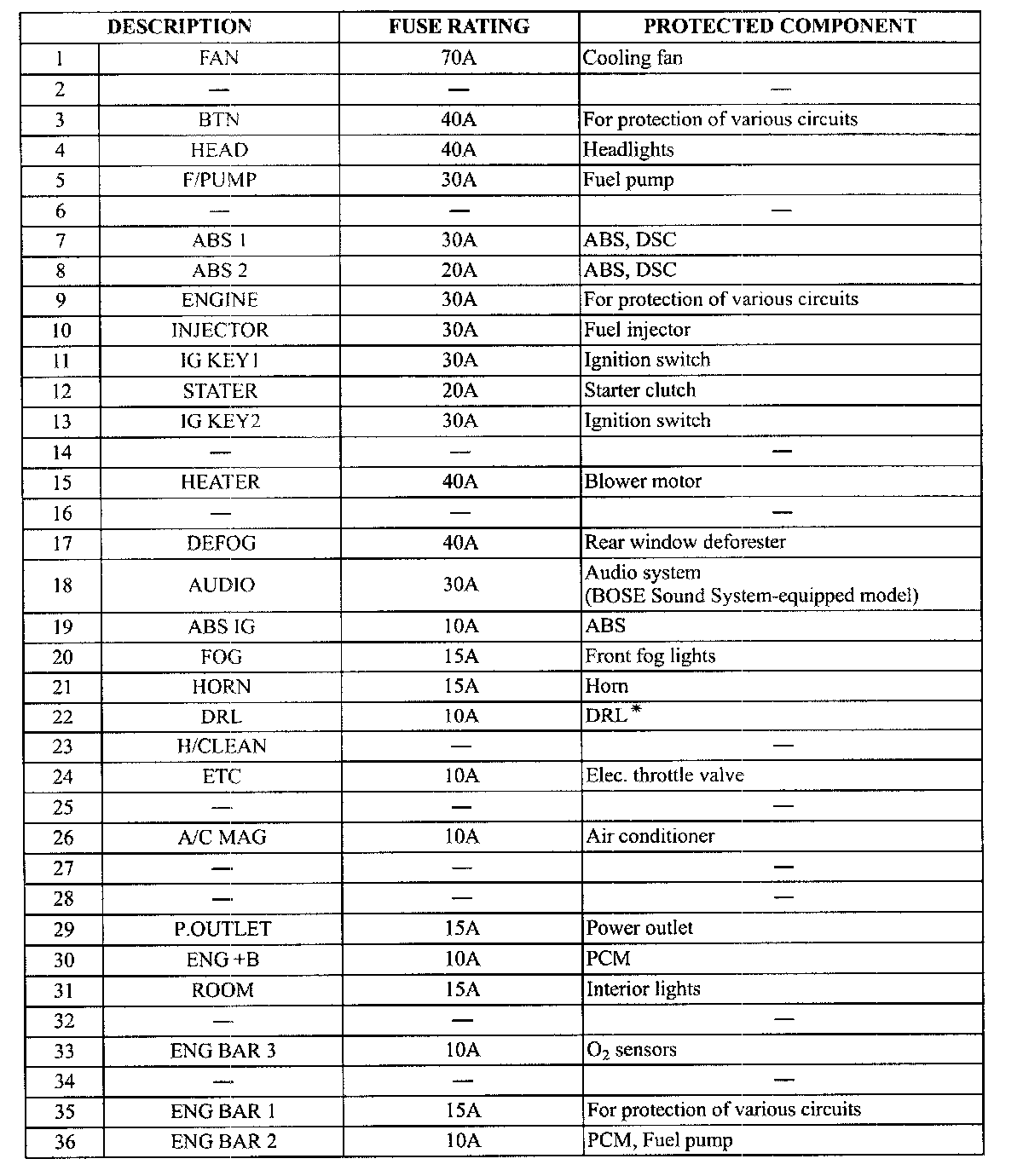

Engine Compartment (w/ Turbocharger):

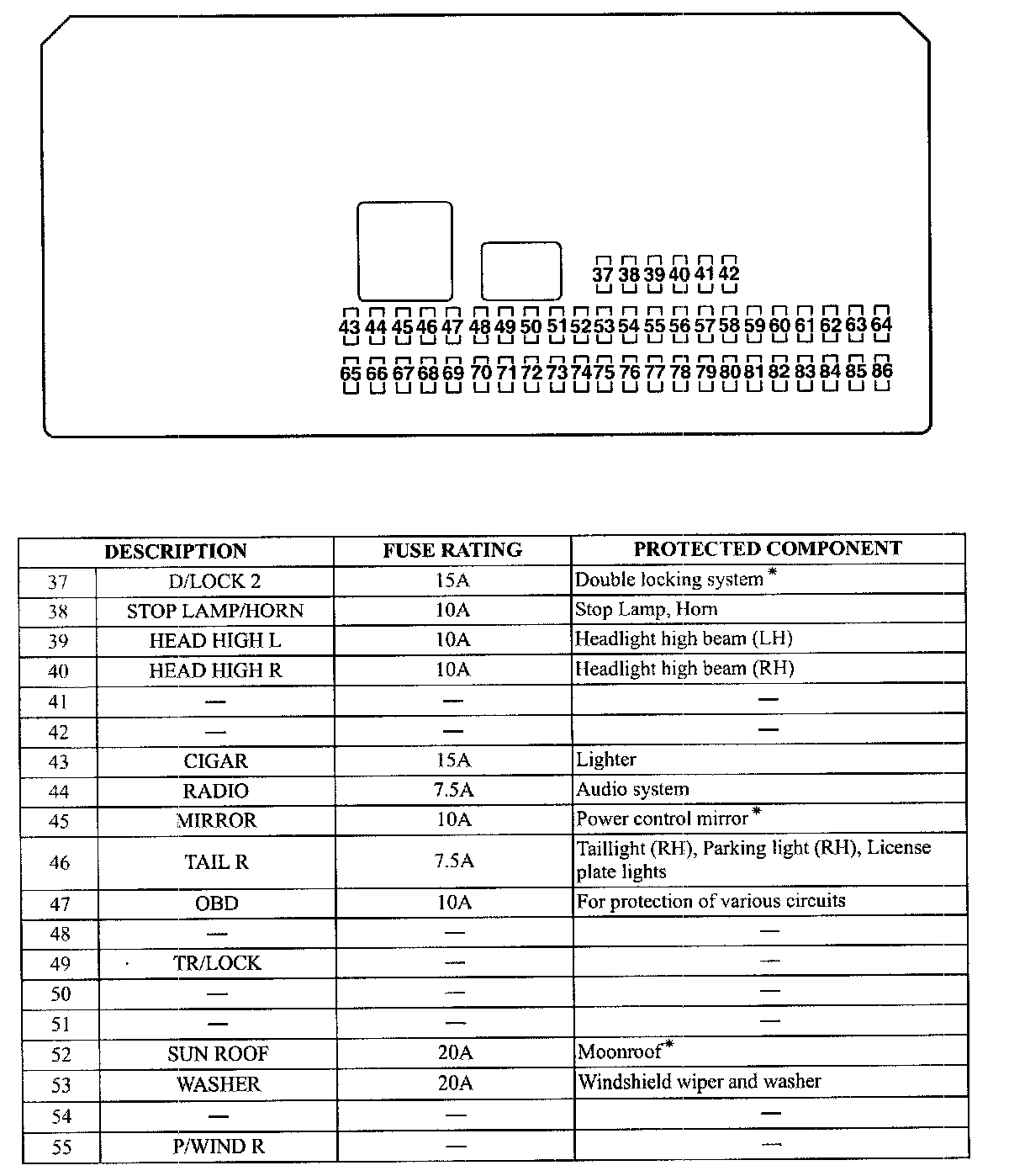

Passenger's Side Panel (1 of 2):

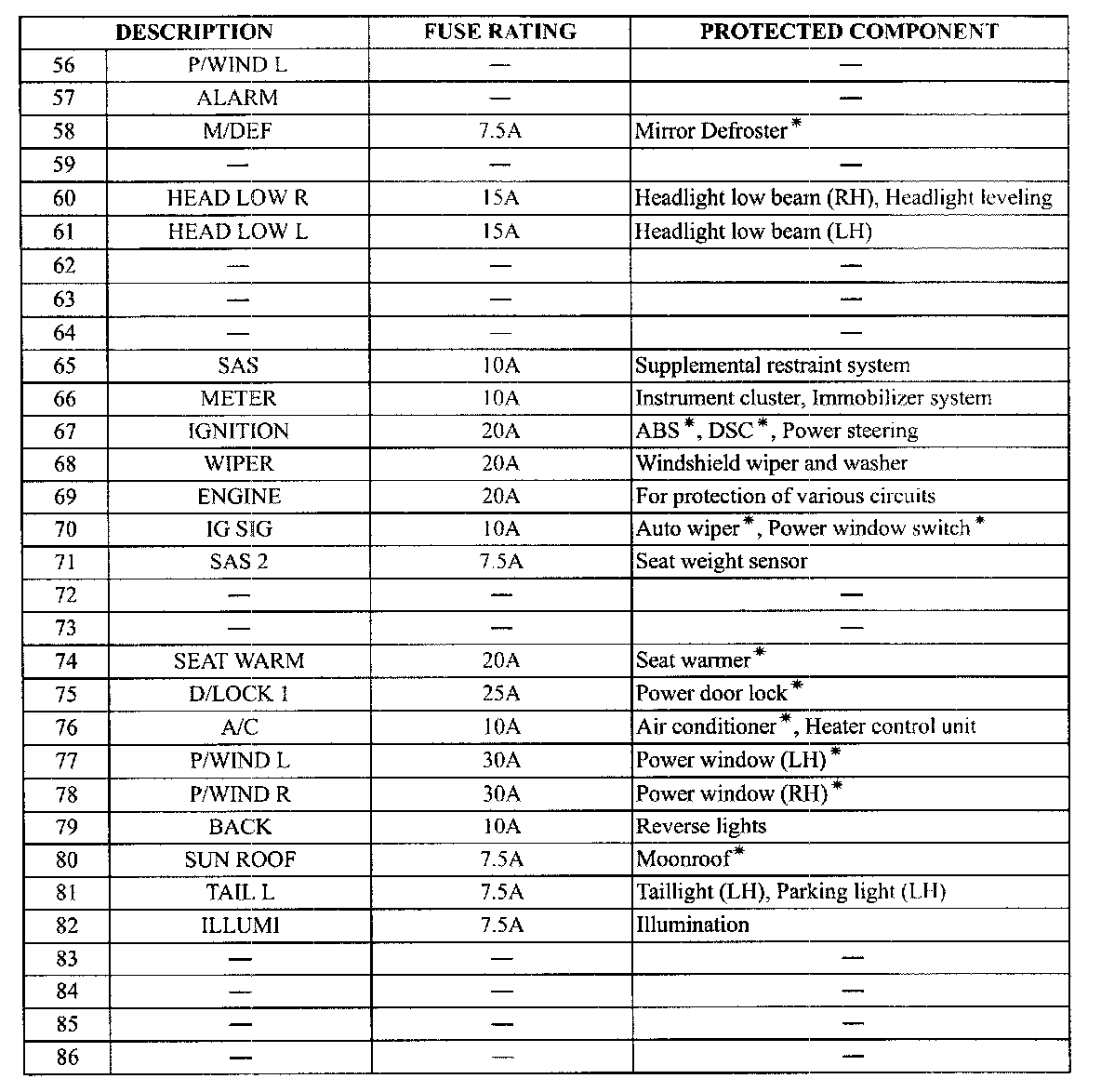

Passenger's Side Panel (2 of 2):
