On-Board Diagnostic (Engine Control System L3 With TC) - (1 Of 5)
>>
Monitoring System And Control System Device Relationship Chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Monitoring System And Control System Device Relationship Chart

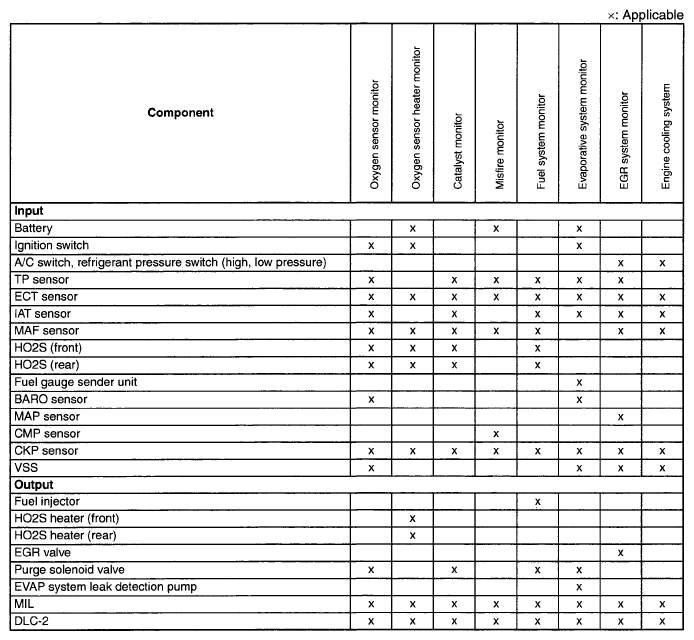

Fig 1: Monitoring System And Control System Device Relationship Chart
Courtesy of MAZDA MOTORS CORP.
