Fuel Injector Removal/Installation: Notes

CAUTION:

Disconnecting/connecting the quick release connector without cleaning it may cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.

NOTE:

When the fuel pressure sensor replaces, replace a new fuel delivery pipe with a new fuel pressure sensor. (See FUEL INJECTOR REMOVAL/INSTALLATION )

Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION ).
Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] .)
Remove the intake manifold. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION .)
Remove in the order indicated in the illustration.

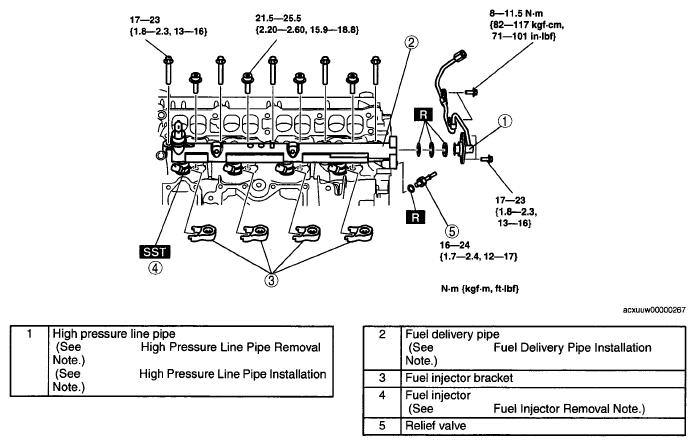

Fig 1: Removal Sequence Of Fuel Injector With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Inspect all parts by performing "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION ).
