Engine Compartment Side

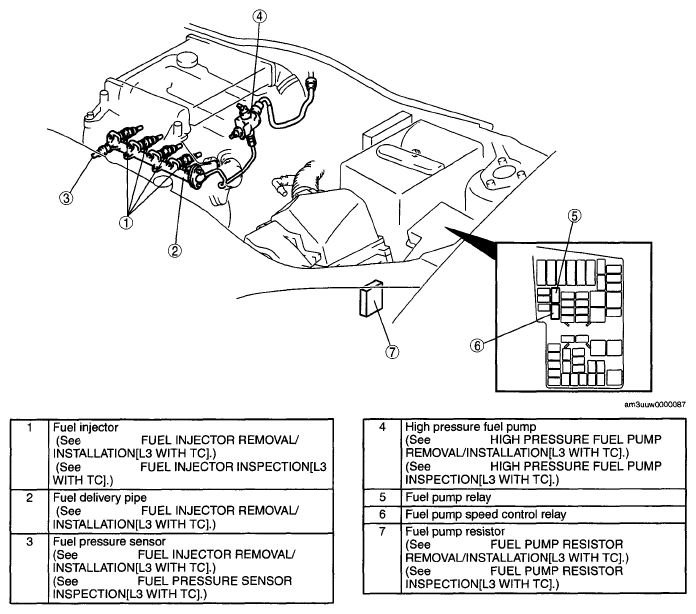

Fig 1: Identifying Fuel System Components (Engine Compartment Side)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
