DTC B1328: Notes

DTC B1328 DETECTION CONDITION POSSIBLE CAUSE

DTC B1328 Door ajar RF circuit open
DETECTION CONDITION  Open circuit in wiring harness between PJB and front door latch switch (passenger-side)
POSSIBLE CAUSE
  • Open circuit in wiring harness between PJB terminal J-06 U and front door latch and lock actuator (passenger-side) terminal G
  • Front door latch and lock actuator malfunction
  • PJB malfunction

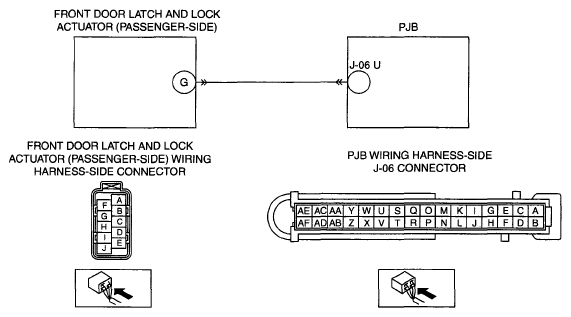

G04956578Courtesy of MAZDA MOTORS CORP.
