DTC B1350: Notes
DTC B1350 DETECTION CONDITION POSSIBLE CAUSE
| DTC B1350 |
Heated backlite relay short to ground |
| DETECTION CONDITION |
Short to GND or power supply in wiring harness between PJB and rear window defroster relay |
| POSSIBLE CAUSE |

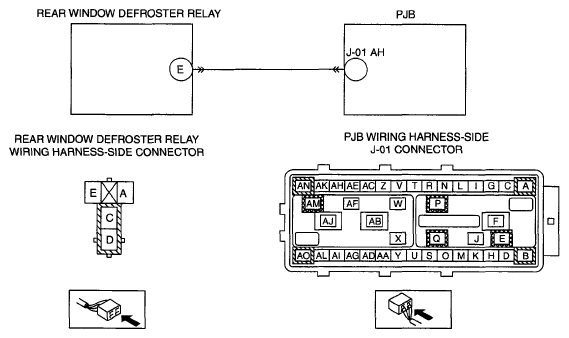

- Open circuit in wiring harness between PJB terminal J-01 AH and rear window defroster relay terminal E
- Short to GND in wiring harness between PJB terminal J-01 AH and rear window defroster relay terminal E
- Short to power supply in wiring harness between PJB terminal J-01 AH and rear window defroster relay terminal E
- Rear window defroster relay malfunction
- PJB malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
