DTC B2017: Notes
DTC B2017 DETECTION CONDITION POSSIBLE CAUSE
| DTC B2017 |
DRL left output circuit failure |
| DETECTION CONDITION |
Open circuit or short to GND in wiring harness between PJB and headlight (low beam) |
| POSSIBLE CAUSE |

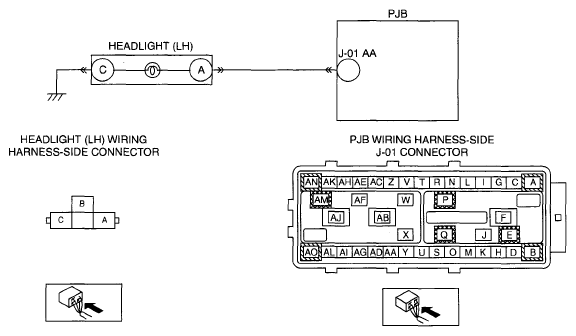

- Open circuit in wiring harness between PJB terminal J-01 AA and headlight (LH) terminal A
- Short to power supply in wiring harness between PJB terminal J-01 AA and headlight (LH) terminal A
- Short to GND in wiring harness between PJB terminal J-01 AA and headlight (LH) terminal A
- Headlight malfunction
- PJB malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
