DTC B2114: Notes

DTC B2114 DETECTION CONDITION POSSIBLE CAUSE

DTC B2114 Front washer switch input circuit short to battery
DETECTION CONDITION  Short to power supply in wiring harness between PJB and windshield wiper and washer switch (front washer)
POSSIBLE CAUSE
  • Short to power supply in wiring harness between PJB terminal J-03 B and windshield wiper and washer switch terminal A
  • Windshield wiper and washer switch malfunction
  • PJB malfunction

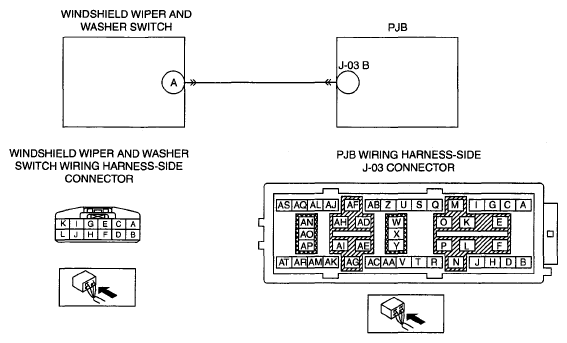

G04956600Courtesy of MAZDA MOTORS CORP.
