DTC B2574: Notes

DTC B2574 DETECTION CONDITION POSSIBLE CAUSE

DTC B2574	Driver door lock switch short to ground
DETECTION CONDITION	Short to GND in wiring harness between PJB and driver-side door lock-link switch

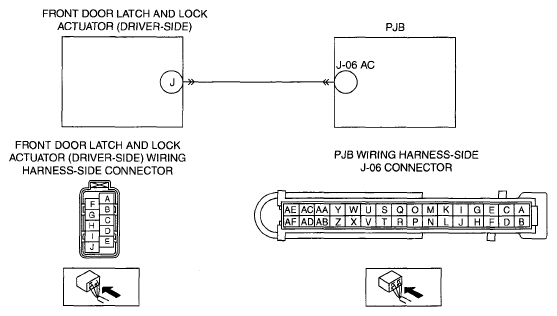

POSSIBLE CAUSE	Short to GND in wiring harness between PJB terminal J-06 AC and front door latch and lock actuator (driver-side) terminal J Front door latch and lock actuator (driver-side) malfunction PJB malfunction
Courtesy of MAZDA MOTORS CORP.
