DTC B2899: Notes
DTC B2899 DETECTION CONDITION POSSIBLE CAUSE
| DTC B2899 |
Left turn signal indicator output failure |
| DETECTION CONDITION |
- Open circuit or short to power supply or GND in wiring harness between PJB and turn light
- Turn light bulb malfunction
|
| POSSIBLE CAUSE |

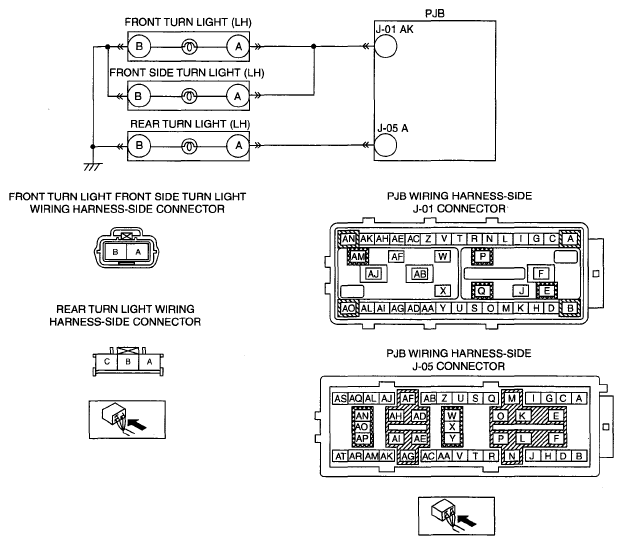

- Open circuit in wiring harness between PJB terminal J-01 AK and front turn light (LH) terminal A or front side turn light (LH) terminal A
- Short to power supply in wiring harness between PJB terminal J-01 AK and front turn light (LH) terminal A or front side turn light (LH) terminal A
- Short to GND in wiring harness between PJB terminal J-01 AK and front turn light (LH) terminal A or front side turn light (LH) terminal A
- Open circuit in wiring harness between PJB terminal J-05 A and rear turn light (LH) terminal A
- Short to power supply in wiring harness between PJB terminal J-05 A and rear turn light (LH) terminal A
- Short to GND in wiring harness between PJB terminal J-05 A and rear turn light (LH) terminal A
- Turn lights malfunction
- PJB malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
