DTC B2966: Notes

DTC B2966 DETECTION CONDITION POSSIBLE CAUSE

DTC B2966 Front washer switch stuck
DETECTION CONDITION  Windshield washer switch stuck ON position
POSSIBLE CAUSE
  • Short to power supply in wiring harness between PJB terminal J-03 B and windshield wiper and washer switch terminal A
  • Windshield wiper and washer switch malfunction
  • PJB malfunction

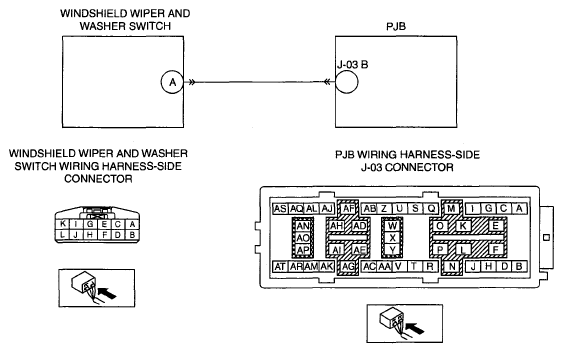

G04956616Courtesy of MAZDA MOTORS CORP.
