Cruise Control Switch: Locations

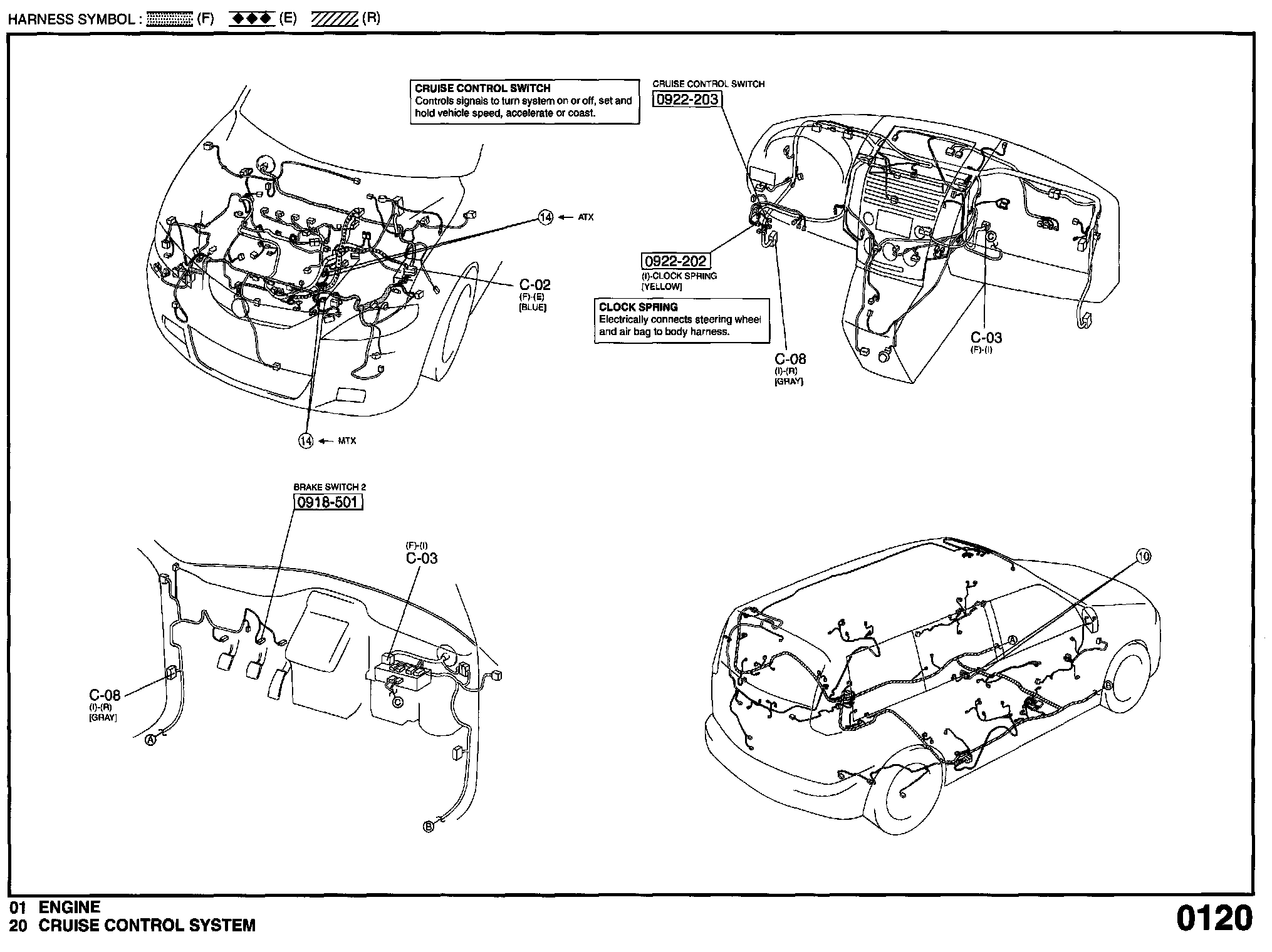

Routing View 0120:

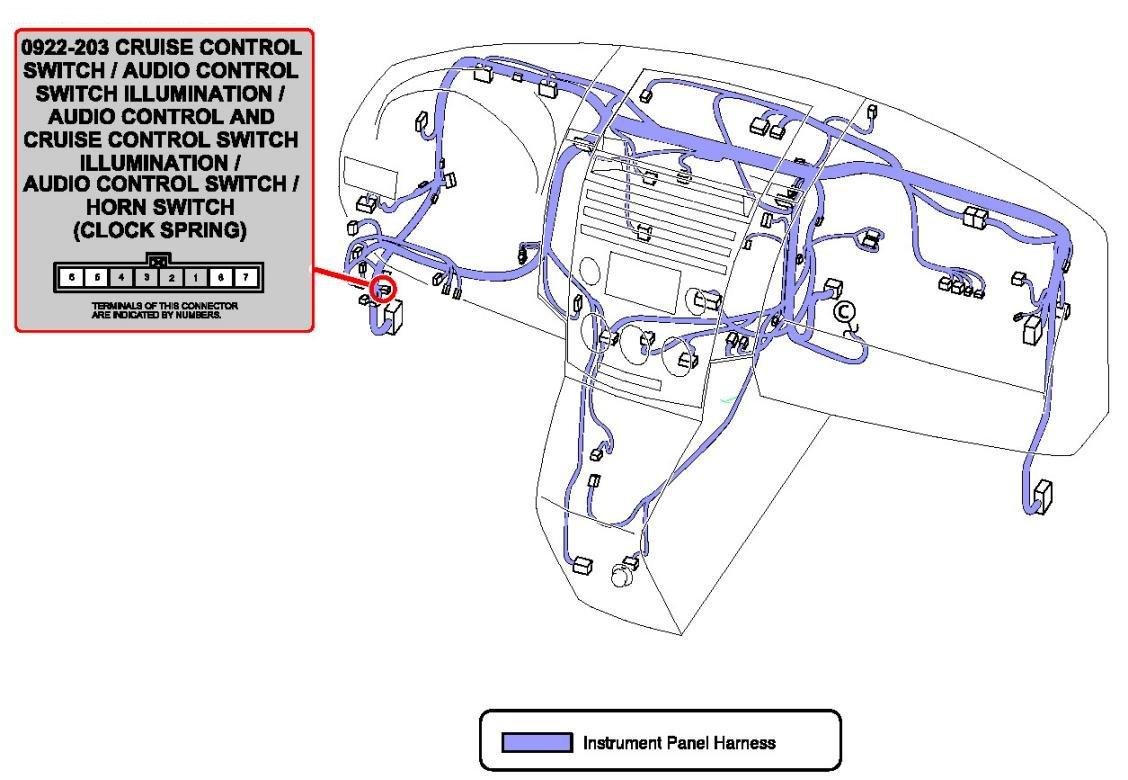

Cruise Control Switch/Audio Control Switch Illumination/Audio Control And Cruise Control Switch Illumination/Audio Control Switch/Horn Switch (Clock Spring):
