ABS Wheel-Speed Sensor RF (Short Cord)

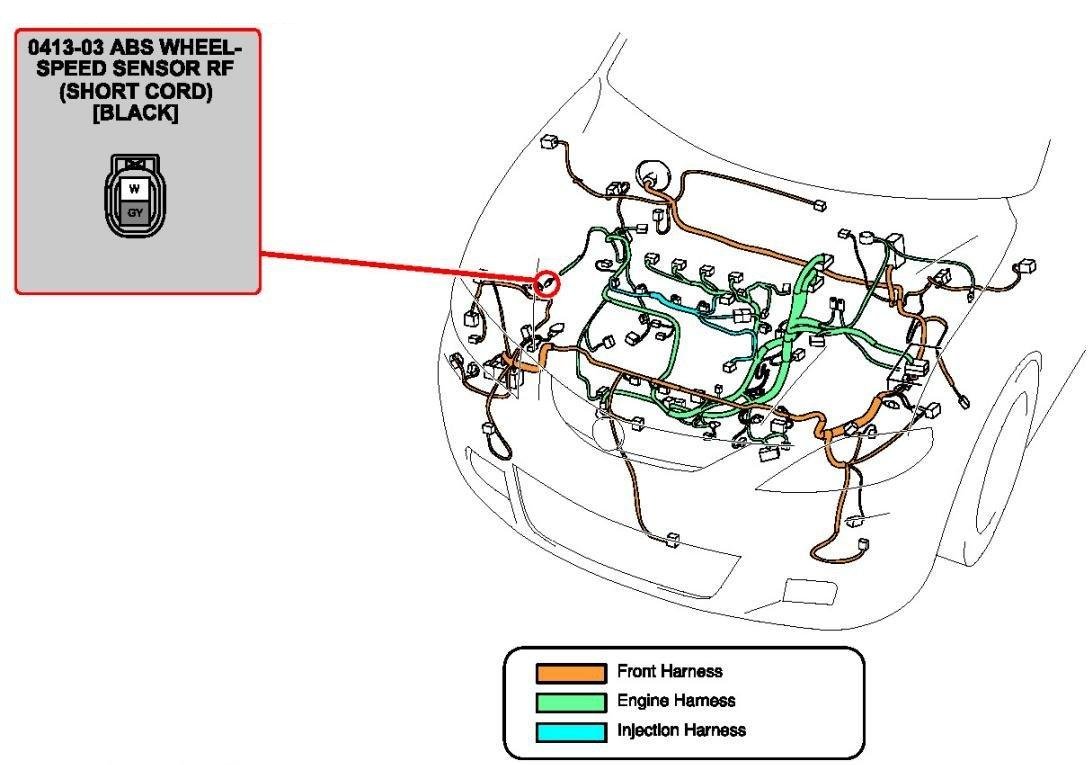

ABS Wheel-Speed Sensor RF (Short Cord):

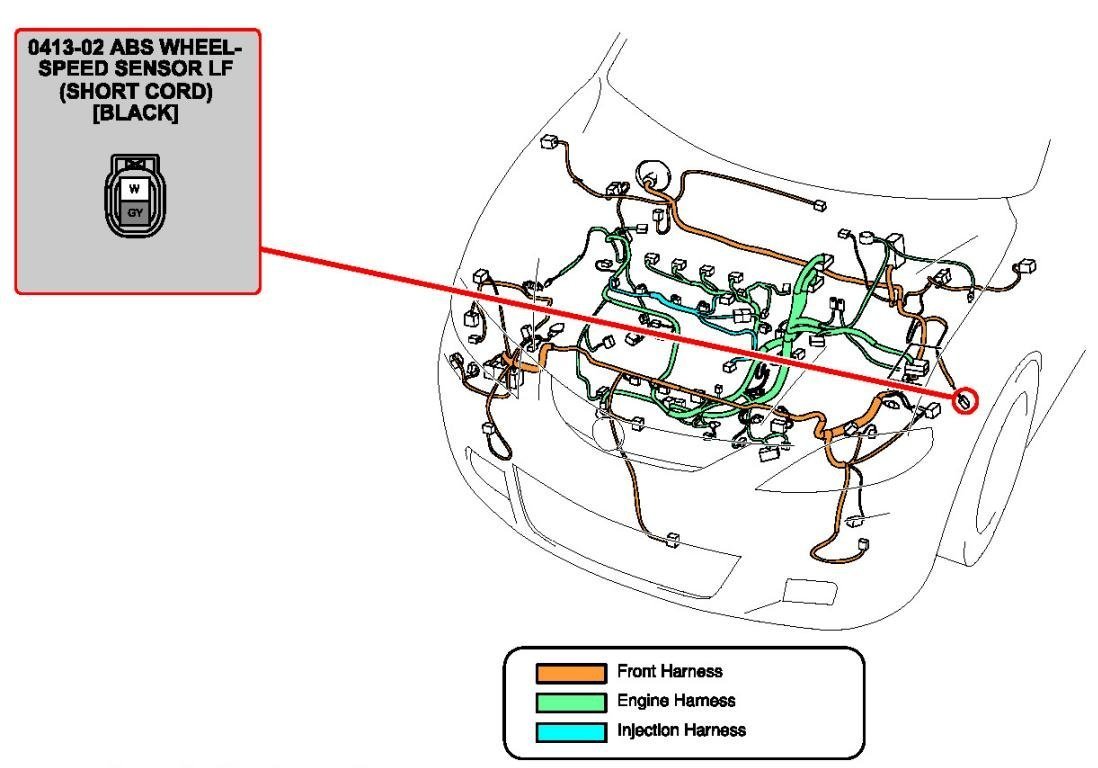

ABS Wheel-Speed Sensor LF (Short Cord):

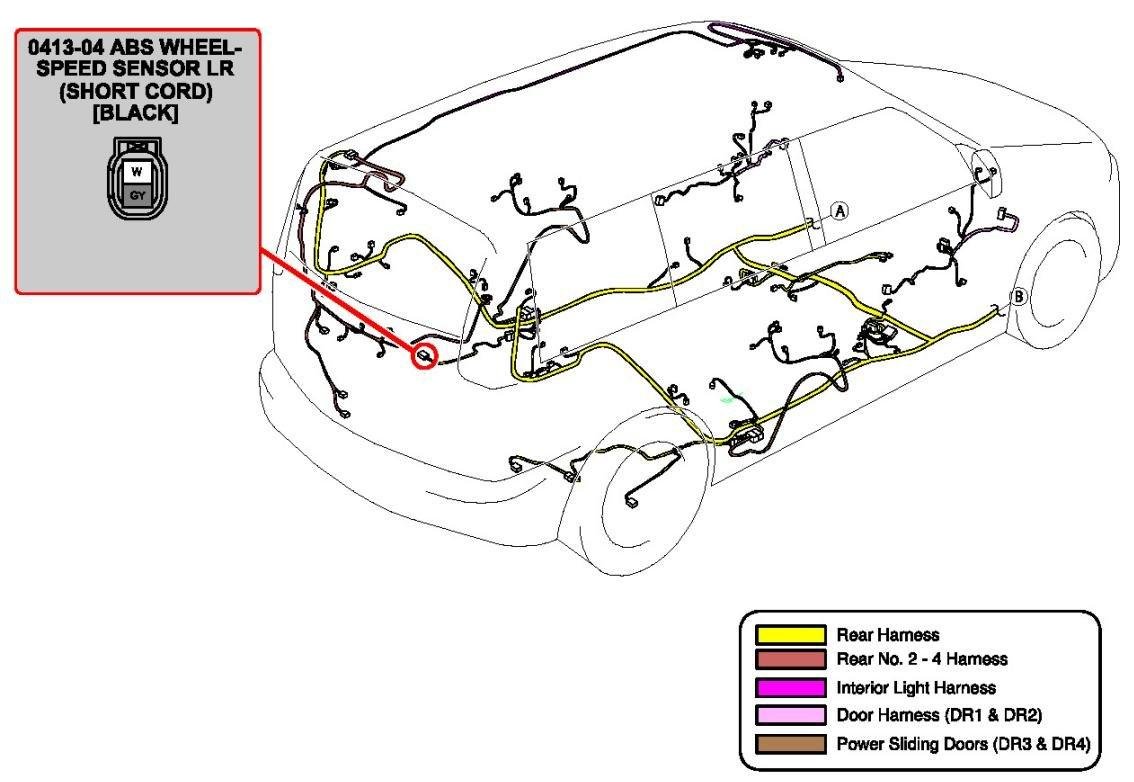

ABS Wheel-Speed Sensor LR (Short Cord):



ABS Wheel-Speed Sensor RR (Short Cord):
