System Schematics

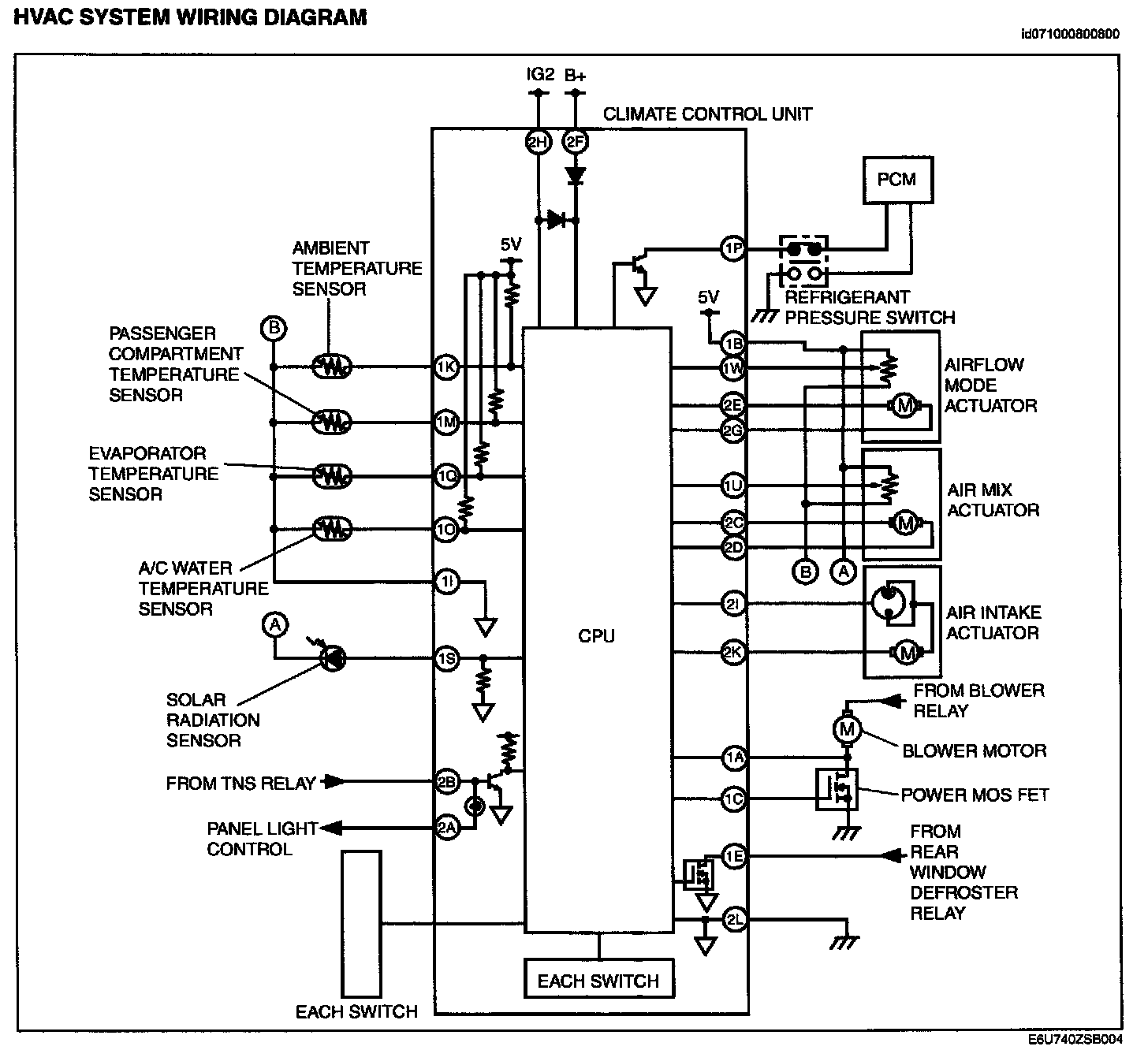

HVAC System Wiring Diagram:

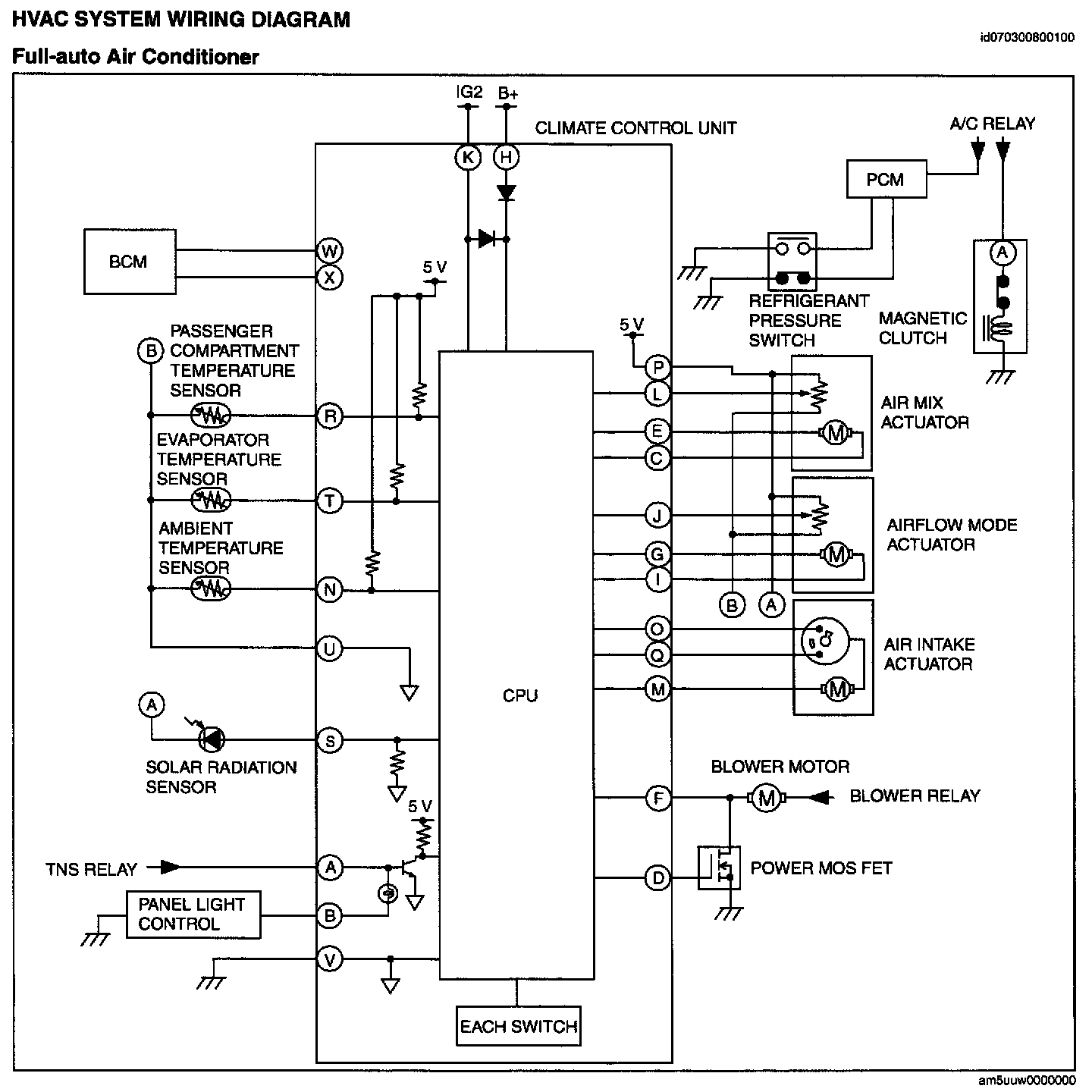

HVAC System Wiring Diagram - Full-auto Air Conditioner:

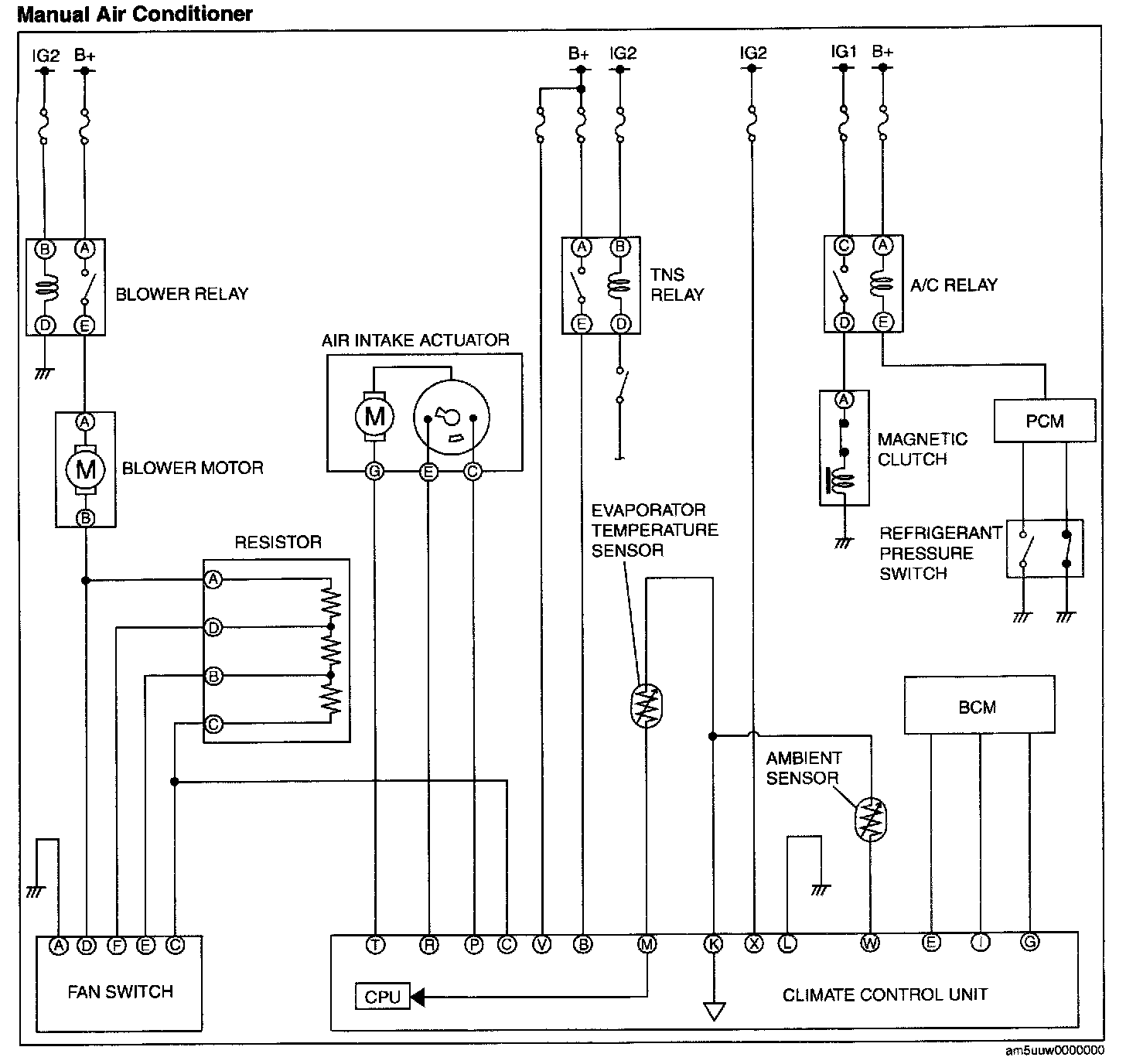

HVAC System Wiring Diagram - Manual Air Conditioner:

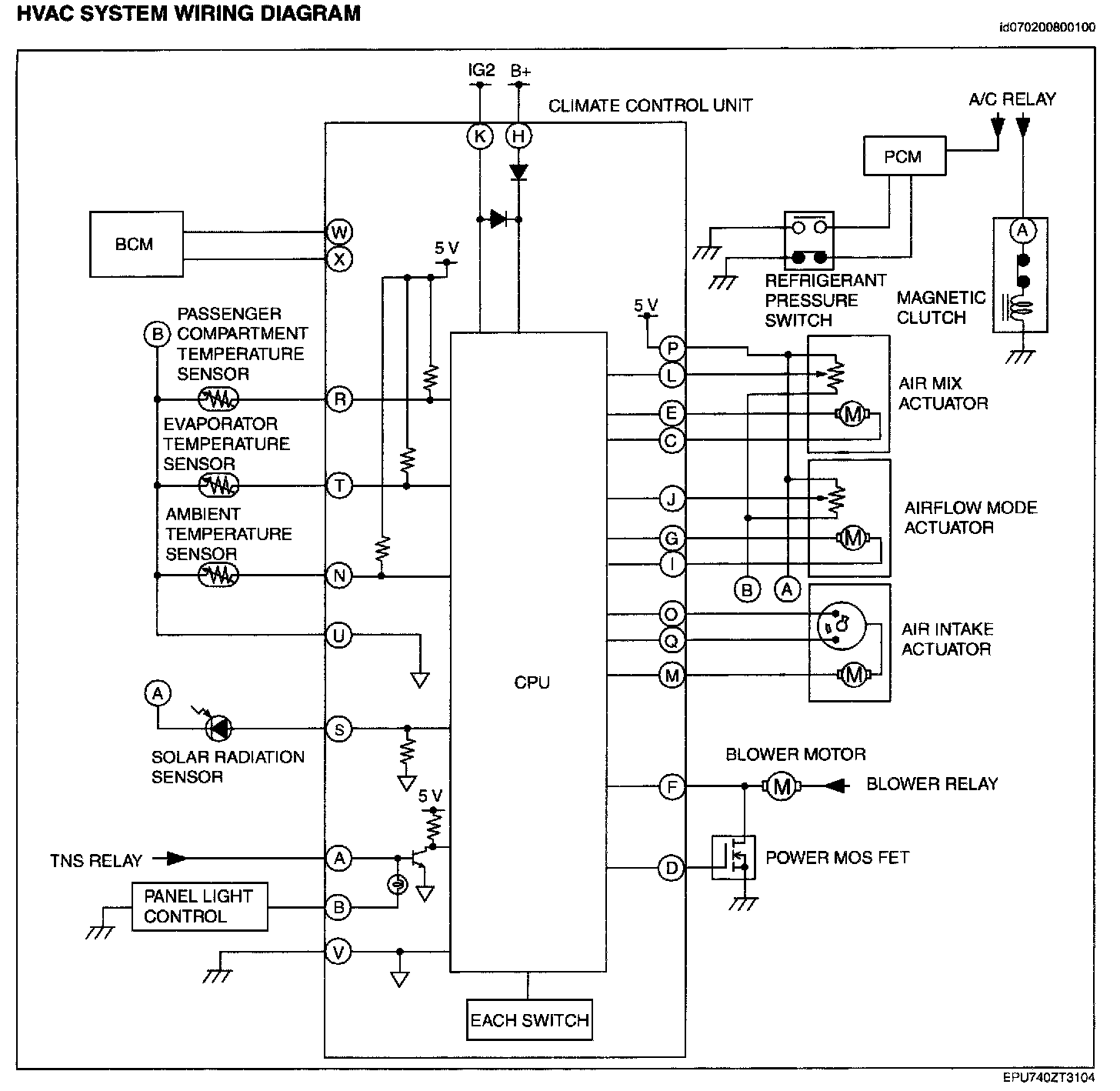

HVAC System Wiring Diagram:
