Fuse

Fuse

Replacement




- When replacing a fuse, be sure to replace it with one of the same capacity If a fuse fails again, the circuit probably has a short and the wiring should be inspected.
- Be sure the negative battery terminal is disconnected before replacing a main fuse.

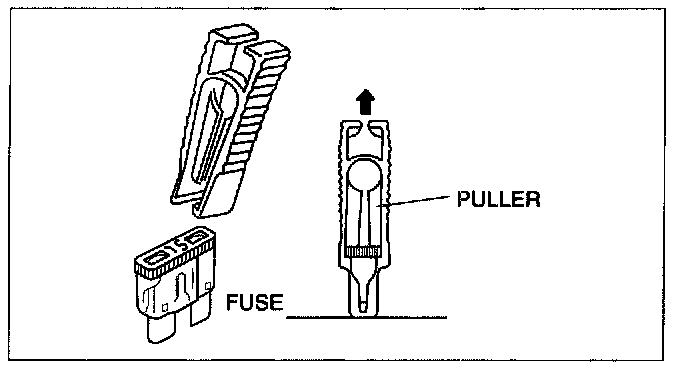

- When replacing a pullout fuse, use the fuse puller.
