Power Outer Mirror Inspection

  1. Apply battery positive voltage to the power outer mirror terminals and inspect the operation of the power outer mirror.
    • If not as specified, replace the power outer mirror.
      MIRROR OPERATION AND TERMINALS CHART

      Mirror Operation Terminal
      B+ GND
      Up A B
      Down B A
      Left C B
      Right B C

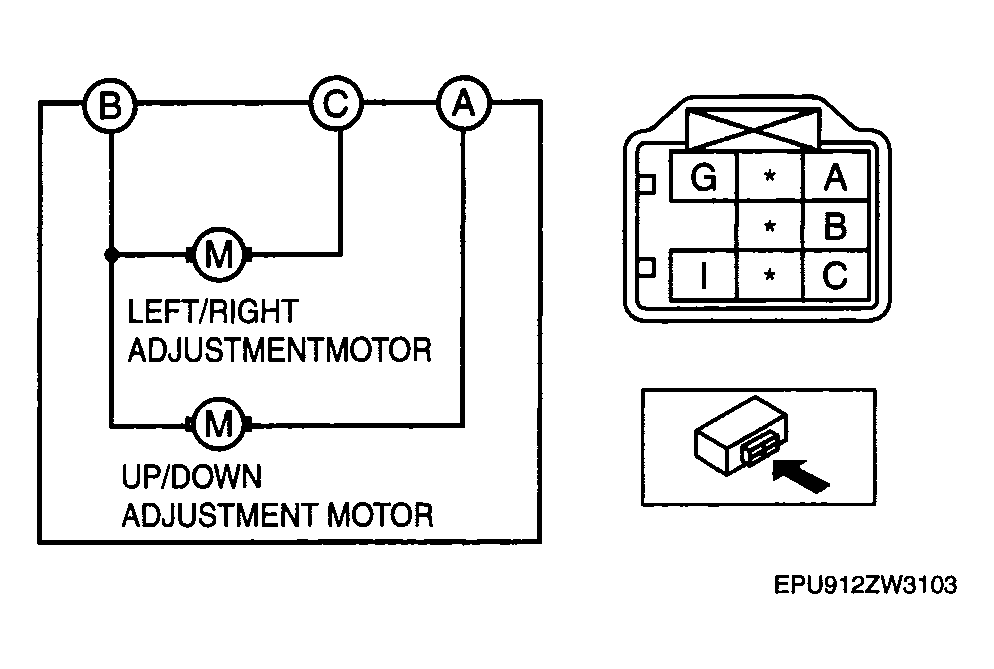

      Fig 1: Inspecting Operation Of Power Outer Mirror
      G04317178Courtesy of MAZDA MOTORS CORP.
  2. Inspect for continuity between the power outer mirror heater terminals.
    • If not as specified, replace the power outer mirror.
      Fig 2: Power Outer Mirror Heater Terminals Continuity Chart
      G04317179Courtesy of MAZDA MOTORS CORP.
      Fig 3: Inspecting Continuity Between Power Outer Mirror Heater Terminals
      G04317180Courtesy of MAZDA MOTORS CORP.
