DTC P0102: Notes

DTC P0102 DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0102 MAF sensor circuit low Input
DETECTION CONDITION
  • The PCM monitors input voltage from the MAF sensor when the engine running. If the input voltage at PCM terminal 1AC is below 0.21 V  , the PCM determines that the MAF circuit has malfunction.

    • Diagnostic support note

  • This is a continuous monitor (CCM).
  • MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
  • FREEZE FRAME DATA is available.
  • DTC is stored in the PCM memory.
POSSIBLE CAUSE
  • MAF sensor malfunction
  • Connector or terminal malfunction

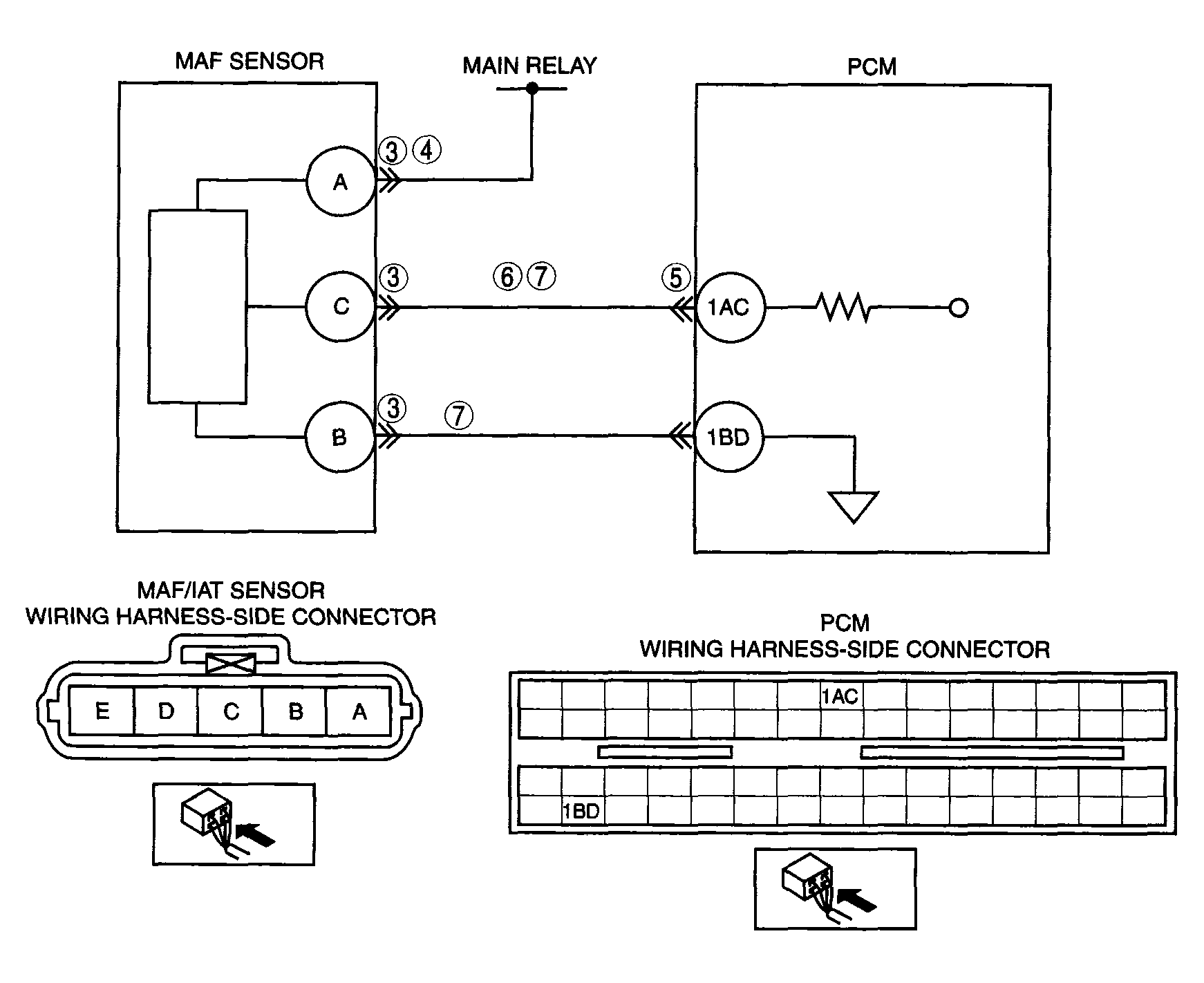

  • Short to ground in wiring harness between MAF/IAT sensor terminal C and PCM terminal 1 AC
  • Open circuit in wiring harness between MAF/IAT sensor terminal C and PCM terminal 1AC
  • Open circuit in wiring harness between main relay and MAF/IAT sensor terminal A
  • PCM malfunction
G04315699
