DTC P0107: Notes
DTC P0107 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0107 |
MAP sensor circuit low input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from the MAP sensor when the intake air temperature is above -10 °C {14 °F}
. If the input voltage at PCM terminal 2AL is below 0.1V
, the PCM determines that the MAP sensor circuit has a malfunction.
Monitoring Condition
Diagnostic support note
- This is a continuous monitor (CCM).
- MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- MAP sensor malfunction
- Connector or terminal malfunction

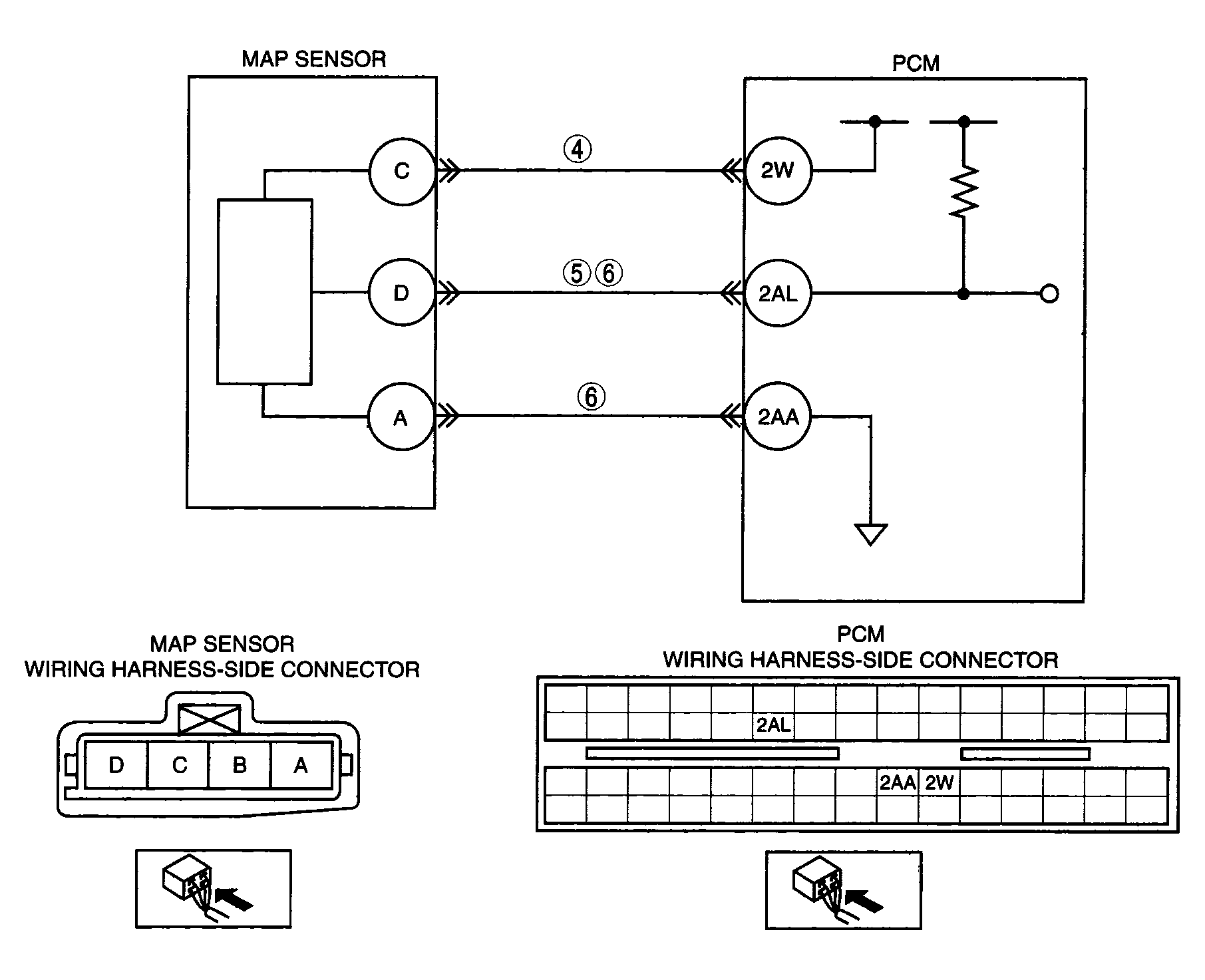

- Short to ground in wiring harness between MAP sensor terminal D and PCM terminal 2AL
- MAP sensor signal circuit and MAP sensor ground circuit are shorted each other
- PCM malfunction
|
|
|
