DTC P0108: Notes
DTC P0108 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0108 |
MAP sensor circuit high input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from the MAP sensor when the intake air temperature is above -10 °C {14 °F}.
If input the voltage at PCM terminal 2AL is above 4.92 V,
the PCM determines that the MAP sensor circuit has malfunction.
Monitoring Condition
Diagnostic support note
- This is a continuous monitor (CCM).
- MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA is available.
- DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- MAP sensor malfunction
- Connector or terminal malfunction

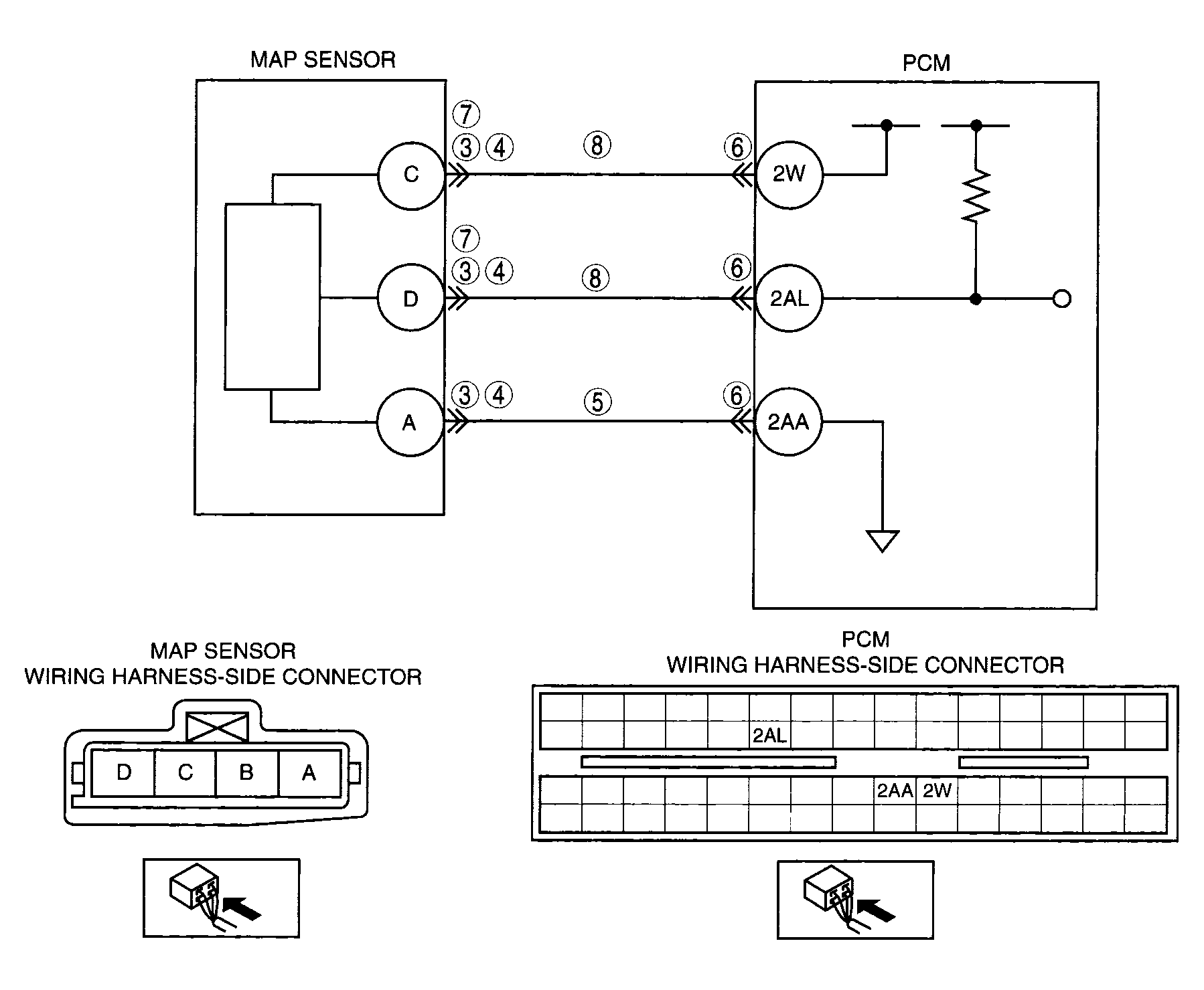

- Open circuit in wiring harness between MAP sensor terminal A and PCM terminal 2AA
- Open circuit in wiring harness between MAP sensor terminal D and PCM terminal 2AL
- MAP sensor signal circuit shorts to constant voltage supply circuit
- PCM malfunction
|
|
|
