DTC P0335: Notes
DTC P0335 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0335 |
CKP sensor circuit problem |
| DETECTION CONDITION |
- If the PCM does not receive input voltage from the CKP sensor for 4.2 s
while MAF is 2.0 g/s {0.26 lb/min.} or above
, the PCM determines that the CKP sensor circuit has malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- MIL illuminates if PCM detects the above malfunction conditions during first drive cycle.
- FREEZE FRAME DATA is available.
- DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- CKP sensor malfunction
- Connector or terminal malfunction
- CKP sensor is dirty

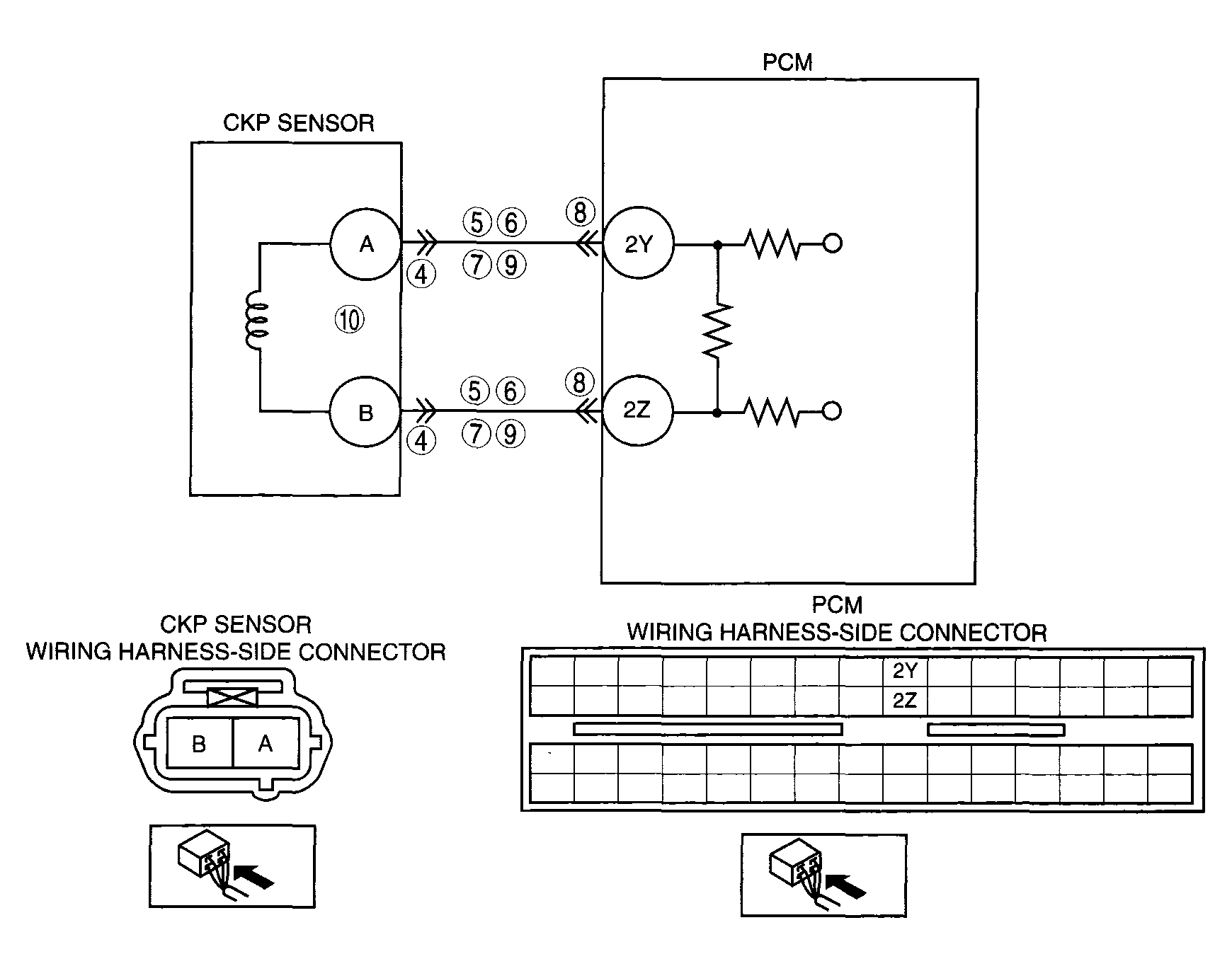

- Short to power supply in wiring harness between CKP sensor terminal A to PCM terminal 2Y
- Short to power supply in wiring harness between CKP sensor terminal B to PCM terminal 2Z
- Short to ground in wiring harness between CKP sensor terminal A to PCM terminal 2Y
- Short to ground in wiring harness between CKP sensor terminal B to PCM terminal 2Z
- Open circuit in wiring harness between CKP sensor terminal A to PCM terminal 2Y
- Open circuit in wiring harness between CKP sensor terminal B to PCM terminal 2Z
- CKP sensor pulse wheel malfunction
- Both CKP sensor wires are shorted each other
- PCM malfunction
|
|
|
