DTC P2101: Notes
DTC P2101 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P2101 |
Throttle actuator circuit range/performance |
| DETECTION CONDITION |
- If any of the following conditions continue for the specified period of time or more:
- The motor power supply voltage is 4 V or less
even though the motor relay is ON
- Drive-by-wire driver communication error in the PCM
- The drive-by-wire driver temperature in the PCM is 180 °C {356 °F} or more
Diagnostic support note
- This is a continuous monitor (CCM).
- MIL illuminates if the PCM detects the above malfunction conditions during first drive cycle.
- FREEZE FRAME DATA is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |

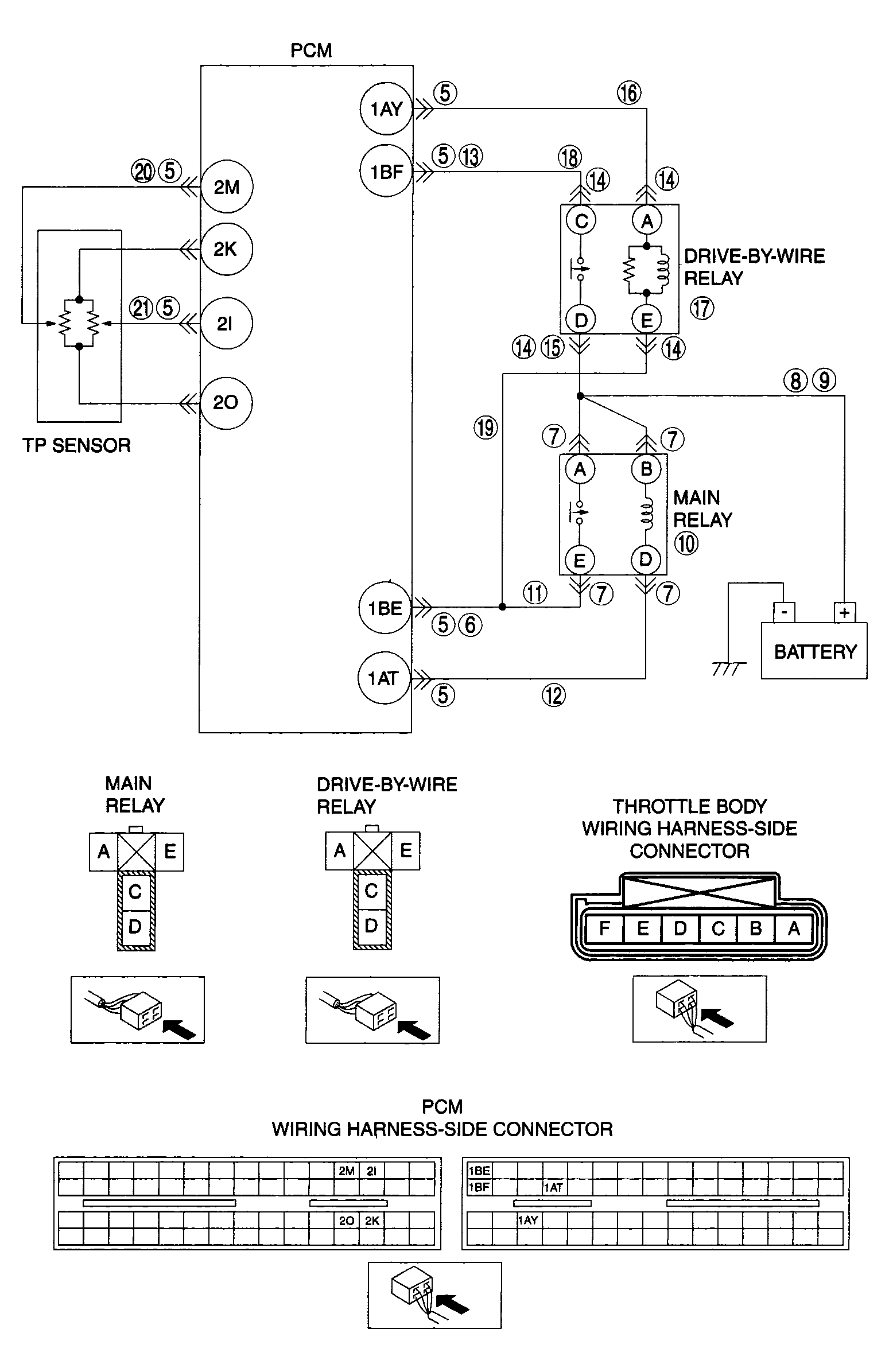

- Drive-by-wire relay and related circuit malfunction
- Main relay and related circuit malfunction
- Throttle position sensor No. 1 and related circuit malfunction
- Throttle position sensor No. 2 and related circuit malfunction
- PCM malfunction
|
