Monitoring System And Control System Device Relationship Chart

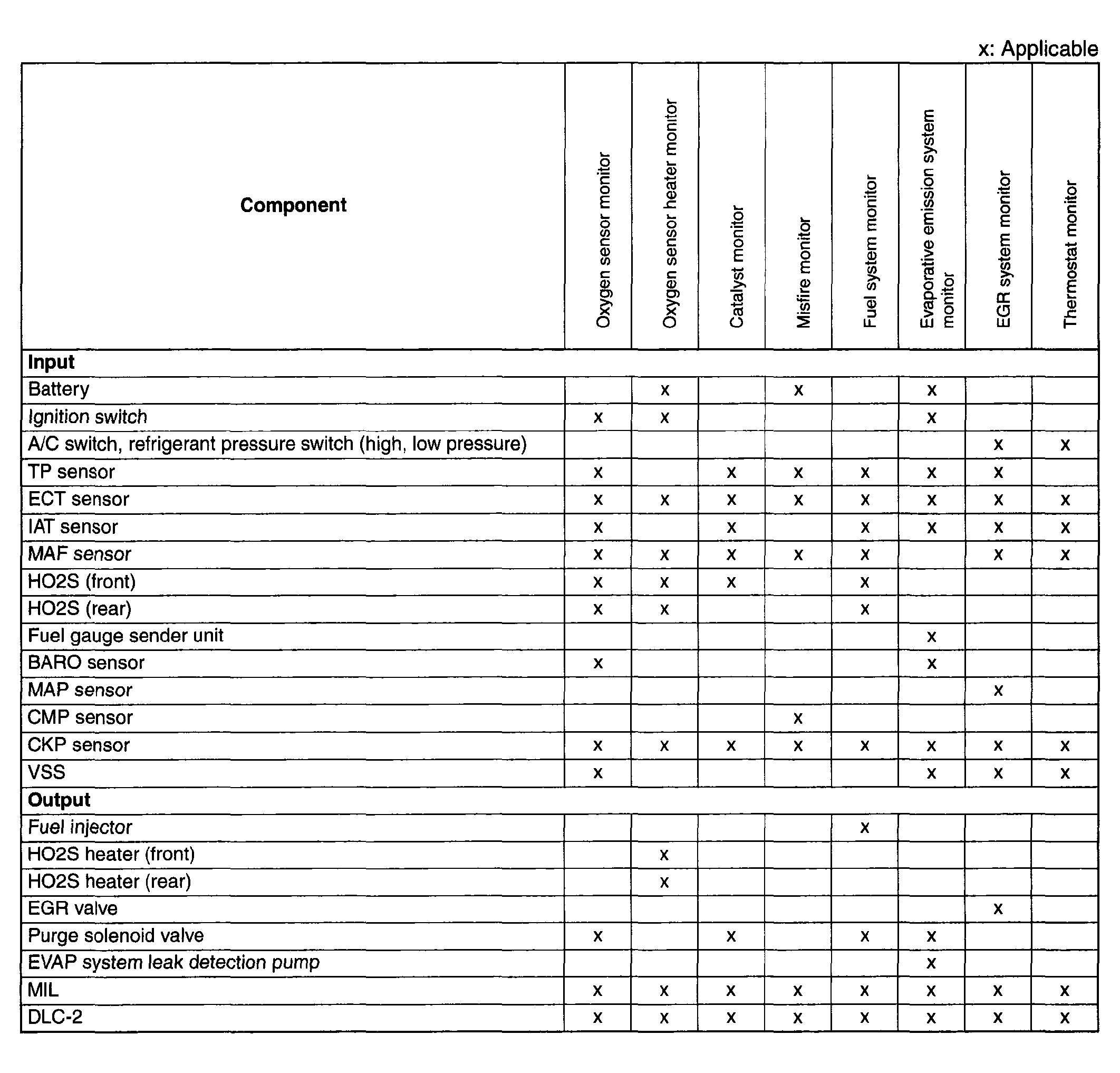

Fig 1: Monitoring System And Control System Device Relationship Chart [L3]
G04315683Courtesy of MAZDA MOTORS CORP.
