6 L4-2.3L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
System Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Schematic

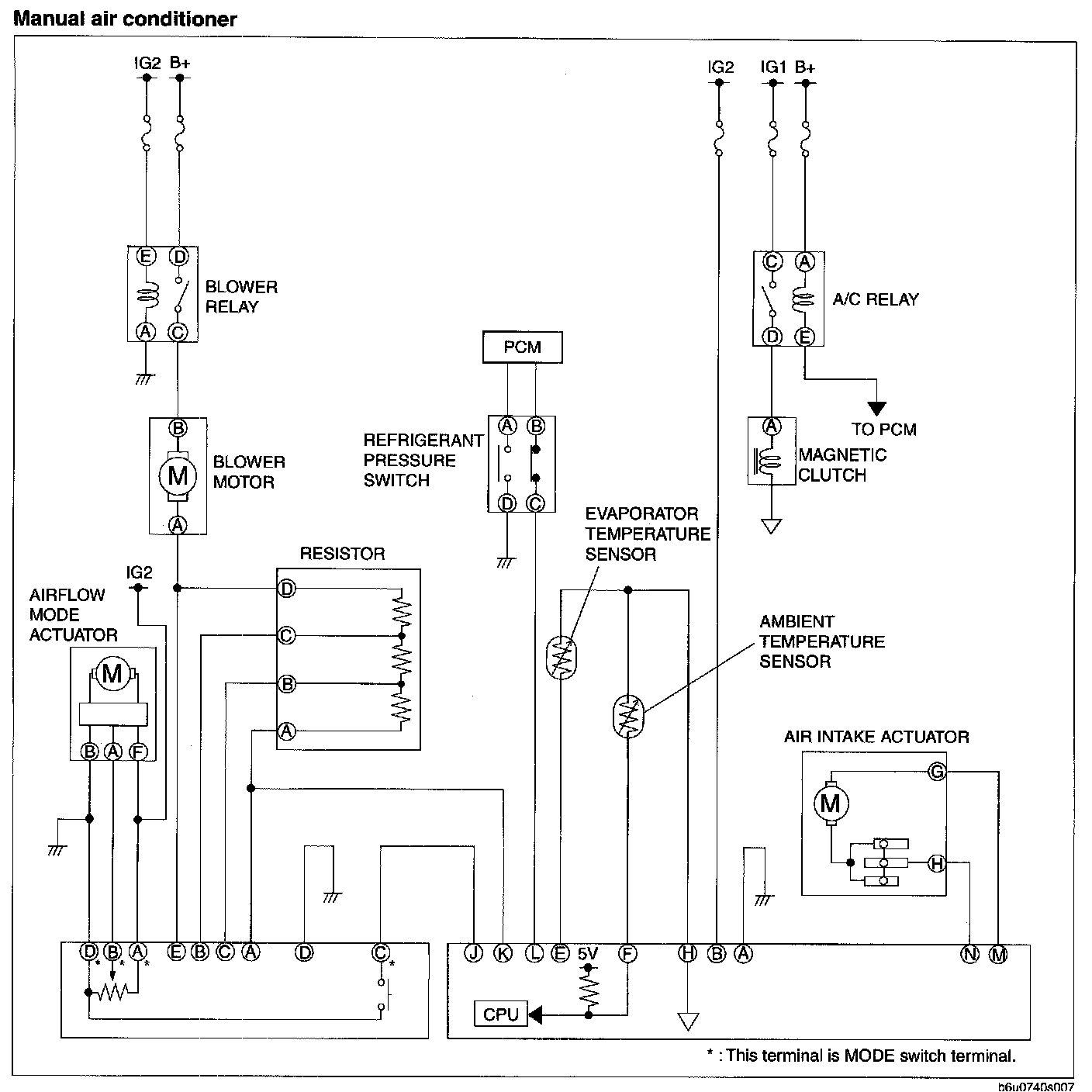

HVAC System Wiring Diagram[L3,AJ]:

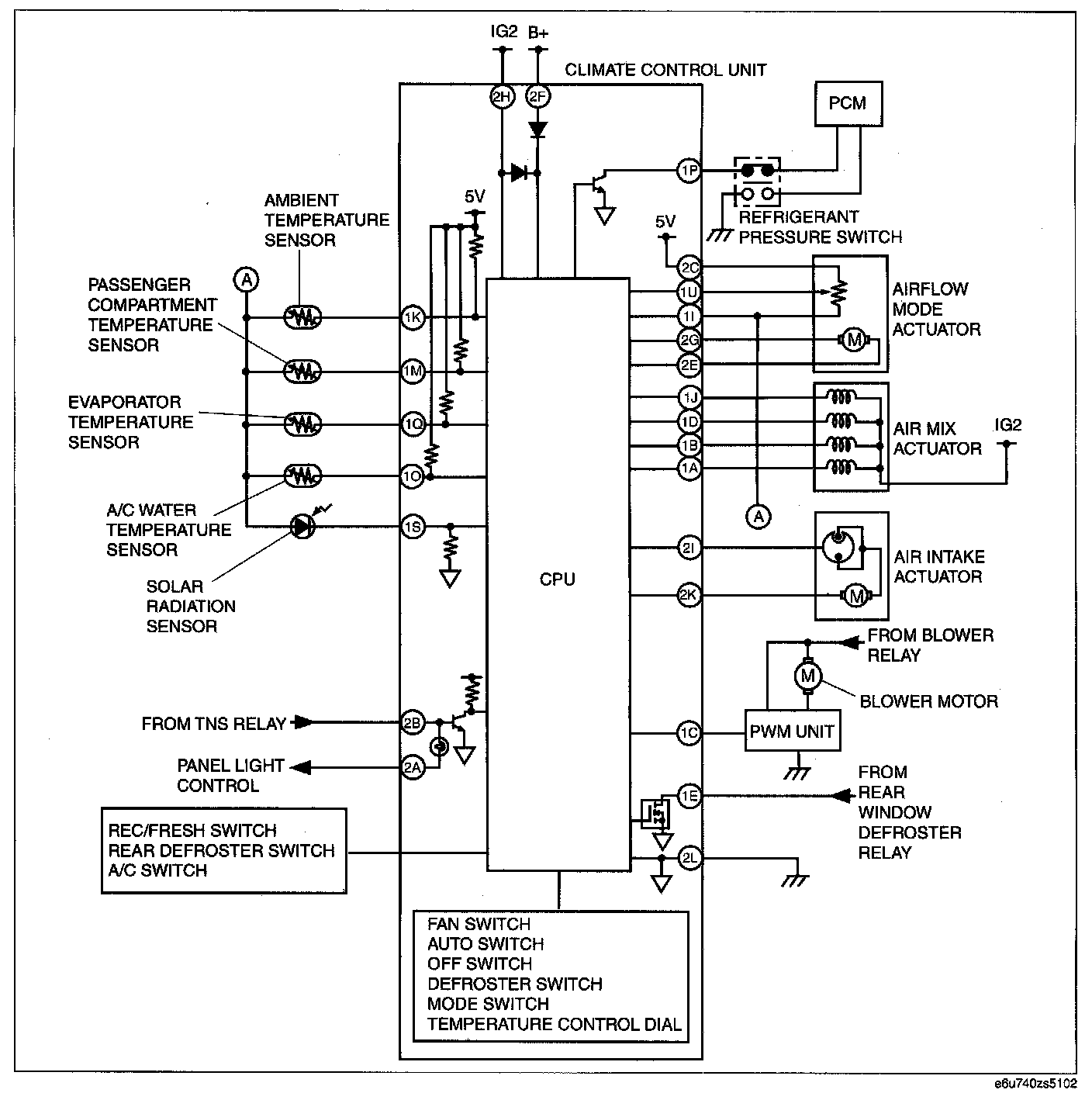

HVAC System Wiring Diagram[L3,AJ]:

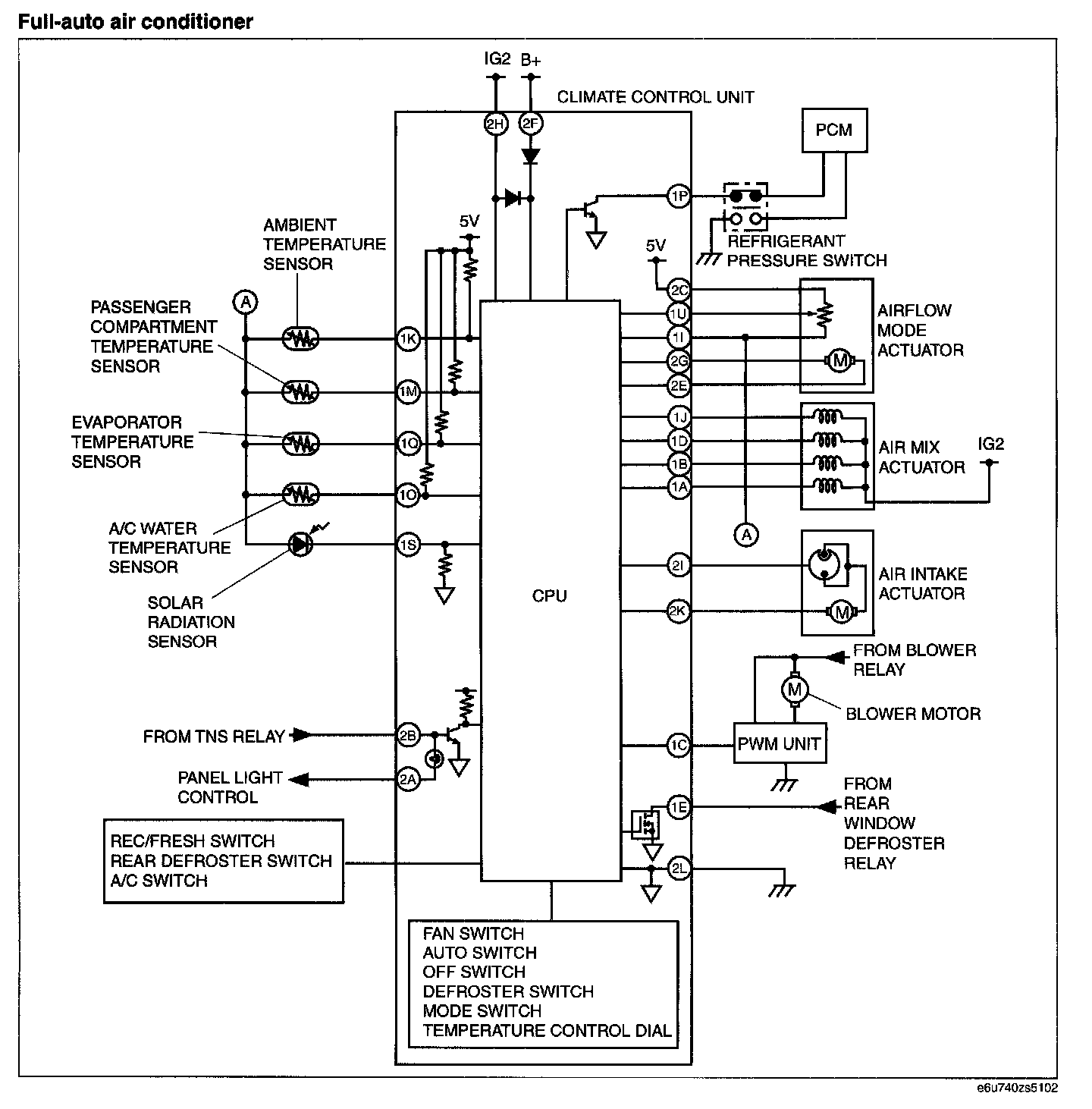

HVAC System Wiring Diagram[L3,AJ]:
