Overhaul

STARTER DISASSEMBLY/ASSEMBLY[L3, AJ]

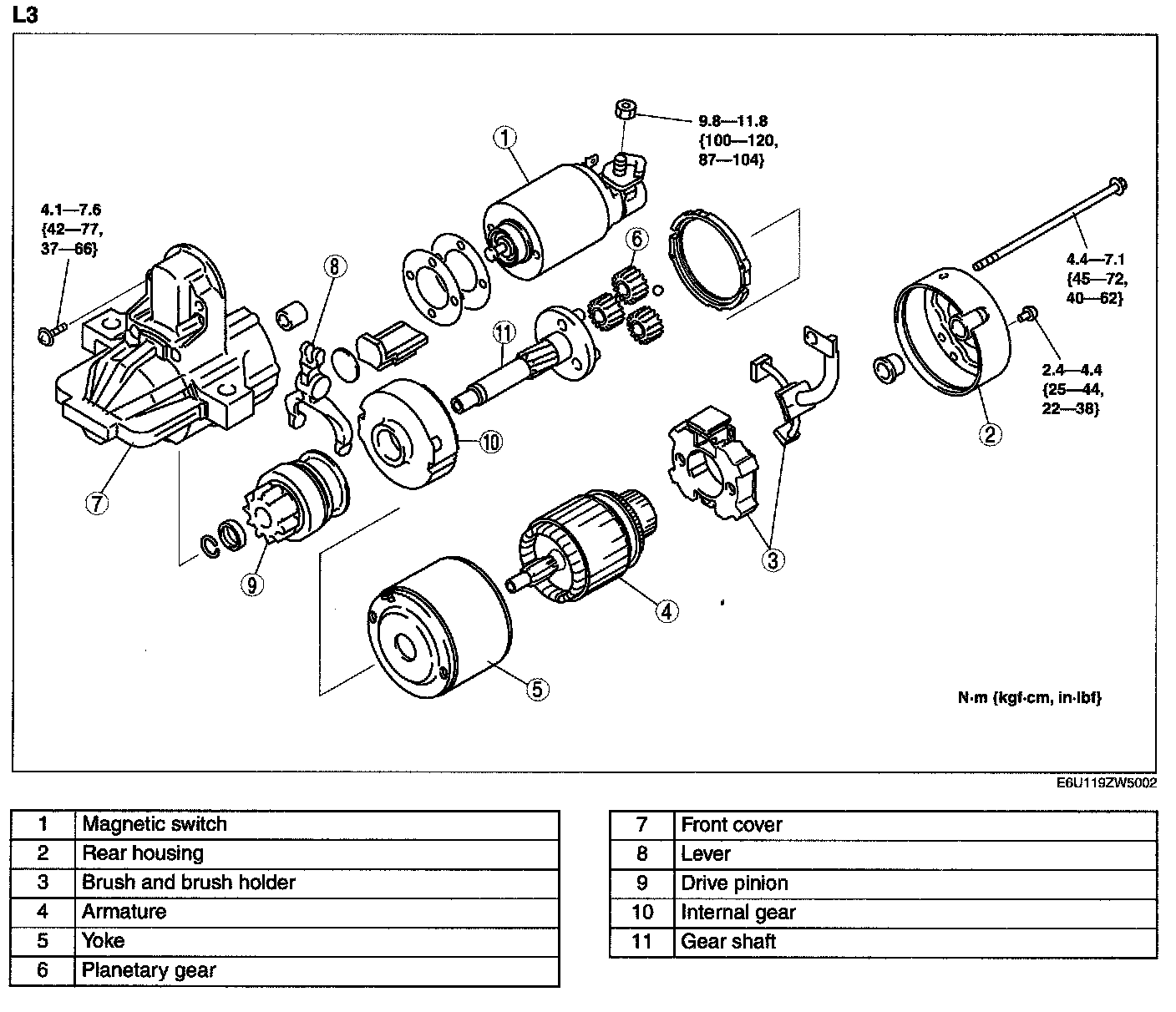

L3

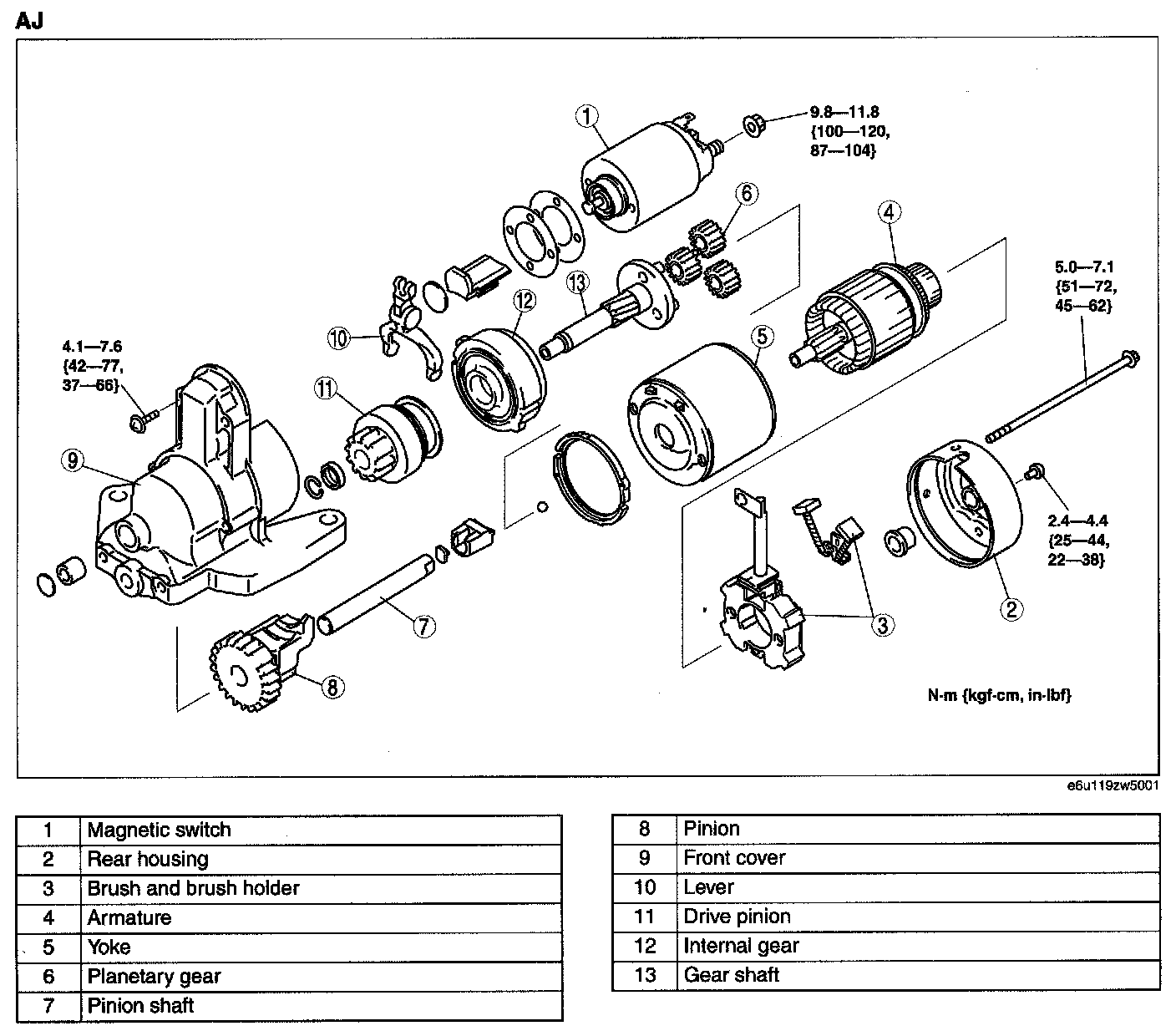

AJ
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
