DTC B2170 [Advanced Keyless System]: Notes

DTC B2170 DETECTION CONDITION AND POSSIBLE CAUSE

DTC B2170 Push switch.
DETECTION CONDITION
  • Detect the push switch OFF signal when ignition switch is ON position.
POSSIBLE CAUSE
  • Steering lock unit malfunction
  • Open or short circuit in wiring harness between keyless control module and steering lock unit
  • Keyless control module malfunction

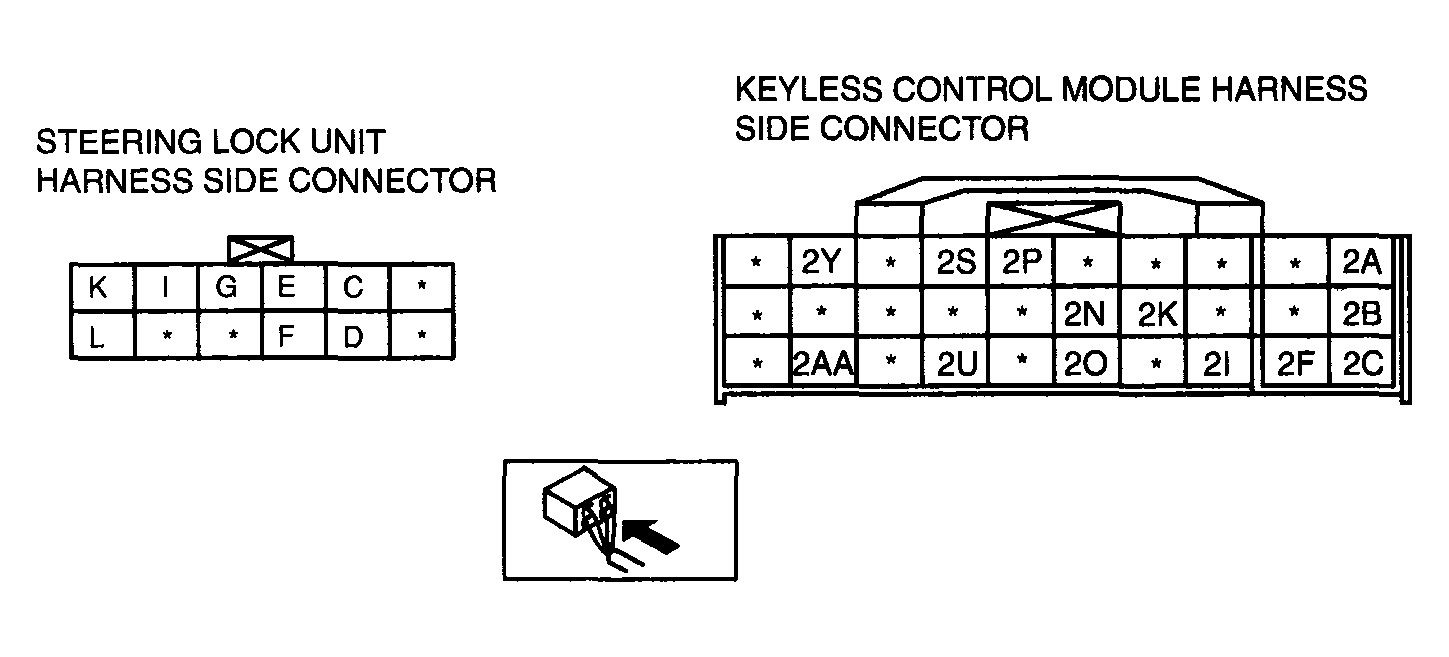

G04327031Courtesy of MAZDA MOTORS CORP.
