4th Gear, 4th Synchronizer Ring and 3rd/4th Clutch Hub Component Assembly Note

Place the 4th gear, 4th inner ring, 4th middle ring, 4th synchronizer ring and 3rd/4th clutch hub.
CAUTION:
- Align each clutch ring with the gear and clutch hub correctly.

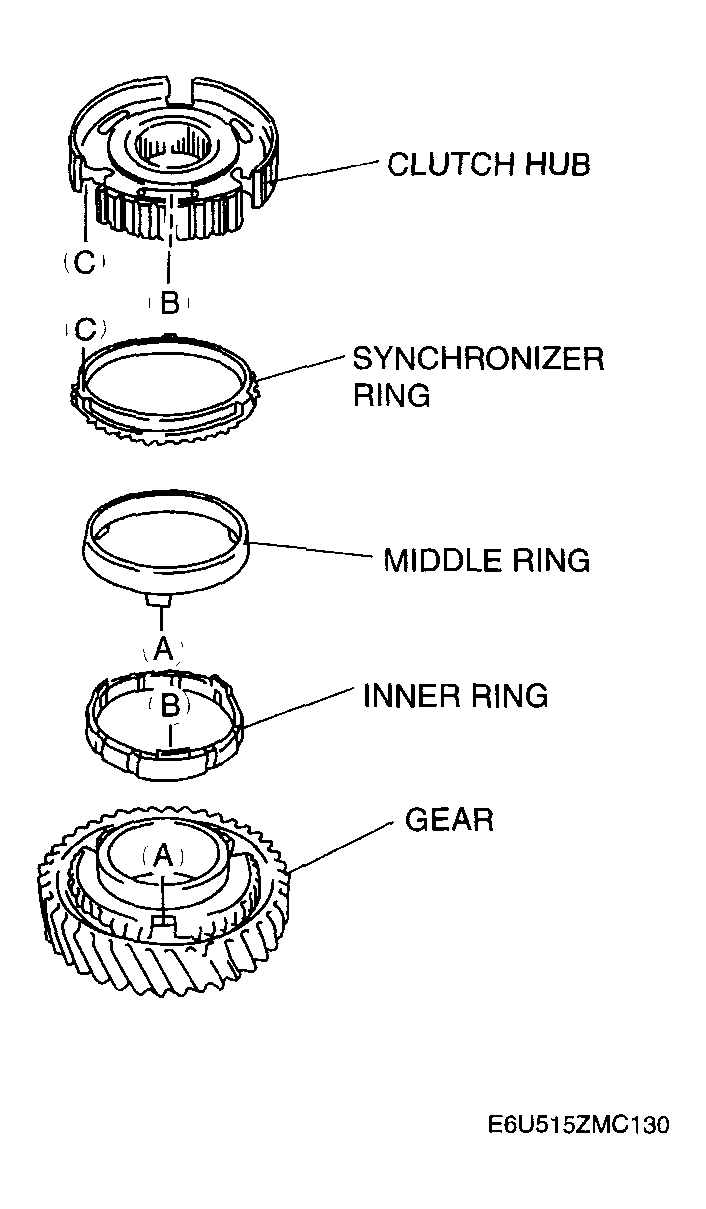

Fig 1: Assembling 4Th Gear, 4Th Synchronizer Ring And 3Rd/4Th Clutch Hub Components
Courtesy of MAZDA MOTORS CORP.
Assemble the synchronizer key, spring, steel ball, and clutch hub sleeve as shown in the figure.

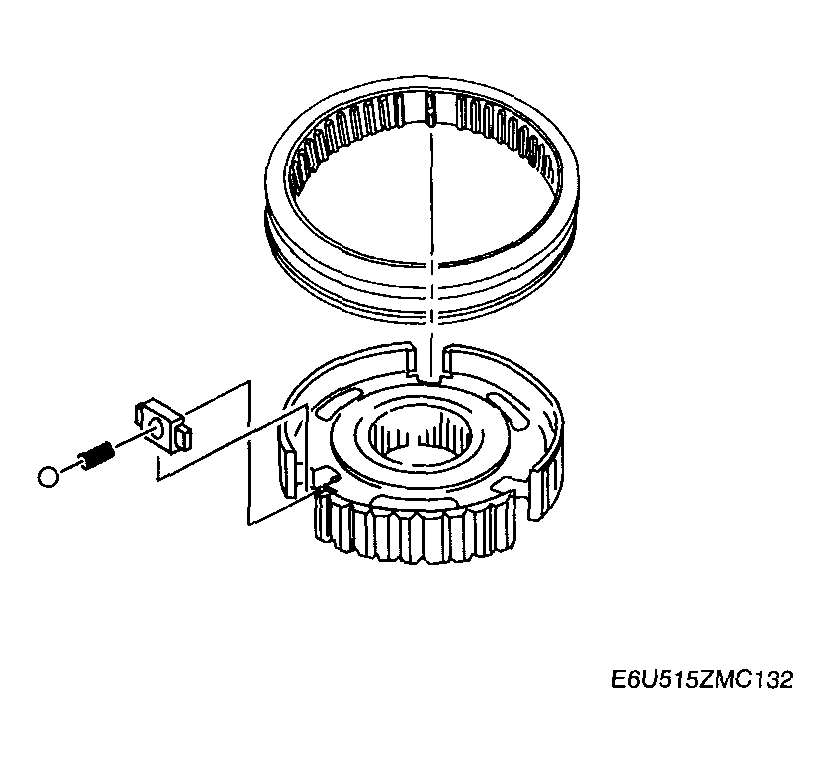

Fig 2: Assembling Synchronizer Key, Spring, Steel Ball And Clutch Hub Sleeve
Courtesy of MAZDA MOTORS CORP.
Install the 3rd/4th clutch hub component using the SST and a press.

Fig 3: Installing 3Rd/4Th Clutch Hub Component Using SST And Press
Courtesy of MAZDA MOTORS CORP.
