Clutch Unit Removal/Installation [G35M-R, A65M-R]
>>
A65M-R Manual Transaxle Models
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
A65M-R Manual Transaxle Models

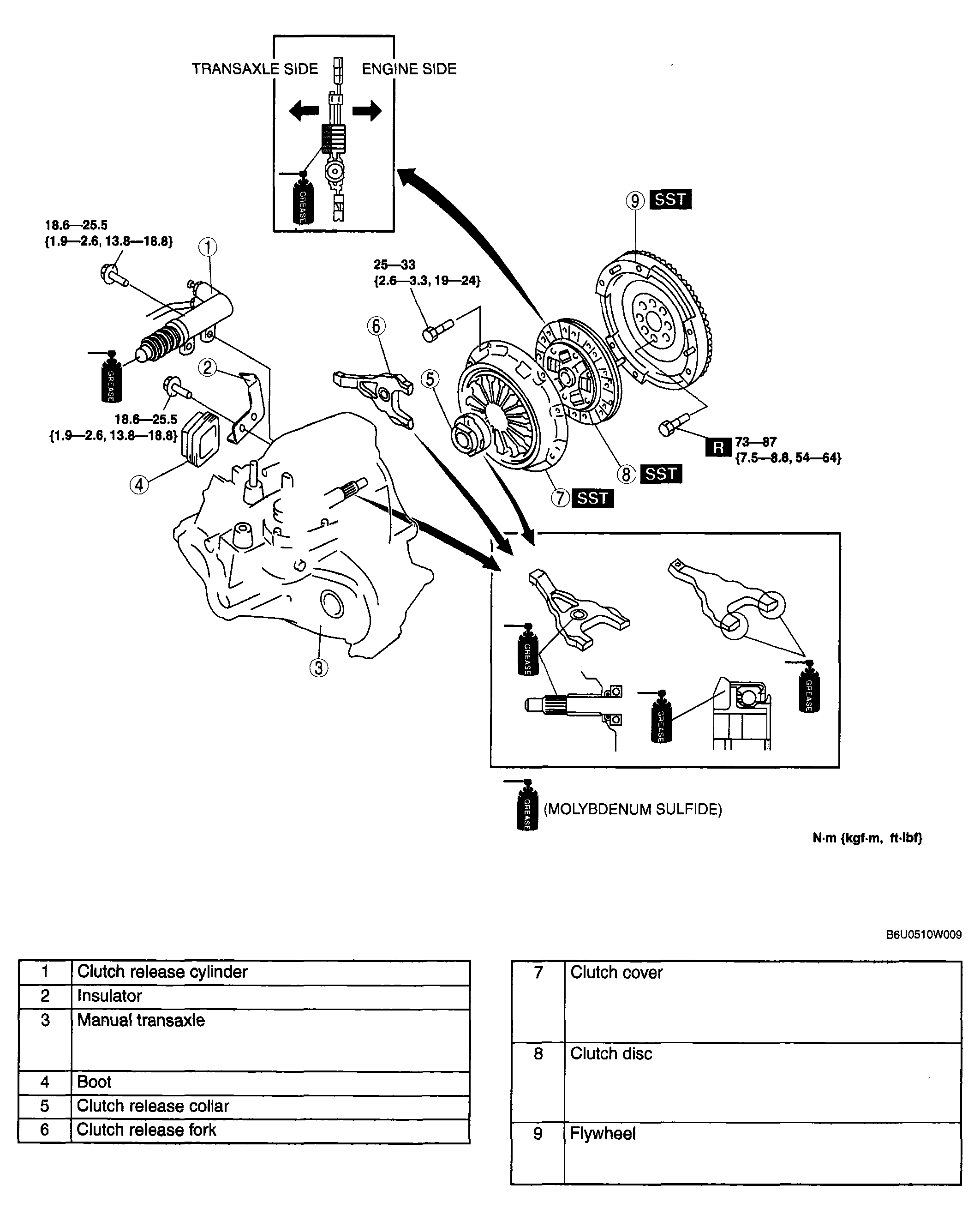

Fig 1: Clutch Unit & Torque Specification (A65M-R)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
