DTC U0236 [Advanced Keyless System]: Notes

DTC U0236 DETECTION CONDITION AND POSSIBLE CAUSE

DTC U0236 Steering lock unit communication system.
DETECTION CONDITION
  • Steering lock unit communication error
POSSIBLE CAUSE
  • Steering lock unit malfunction
  • Open or short circuit in wiring harness between keyless control module and steering lock unit
  • Keyless control module malfunction

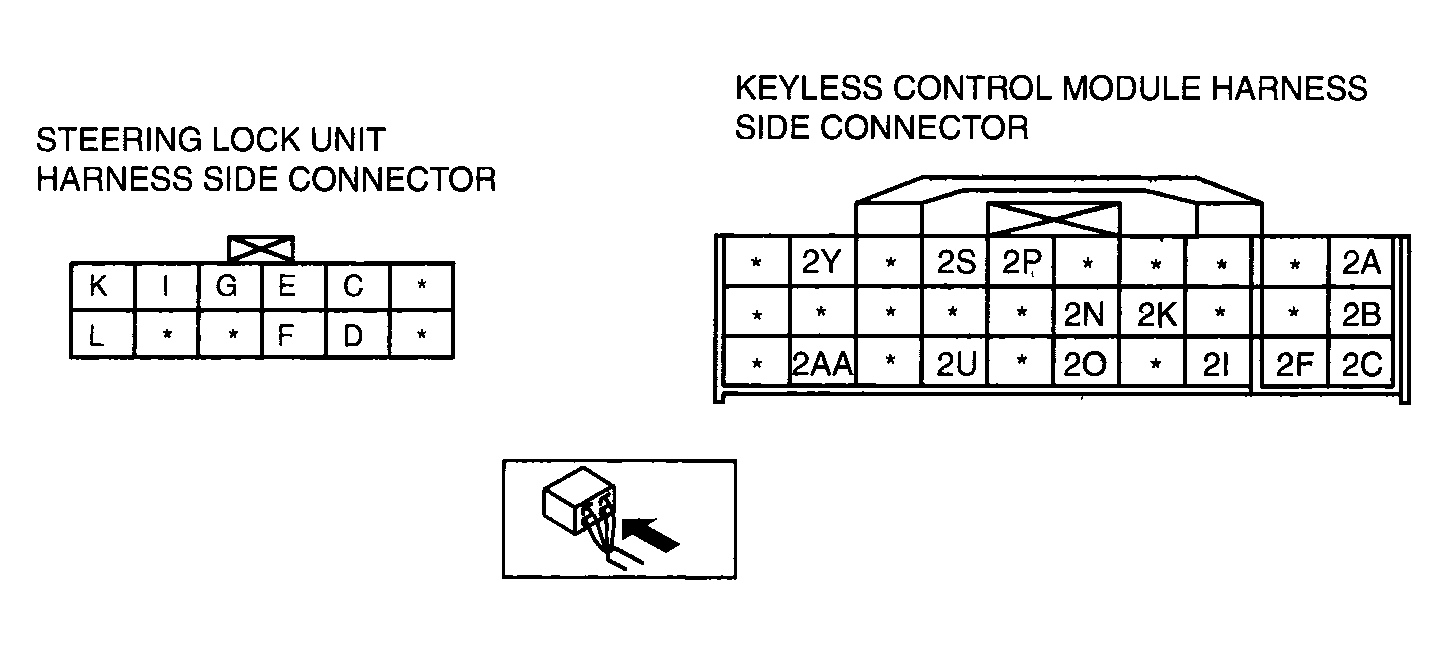

G04327032Courtesy of MAZDA MOTORS CORP.
