Abs/TCS System Wiring Diagram

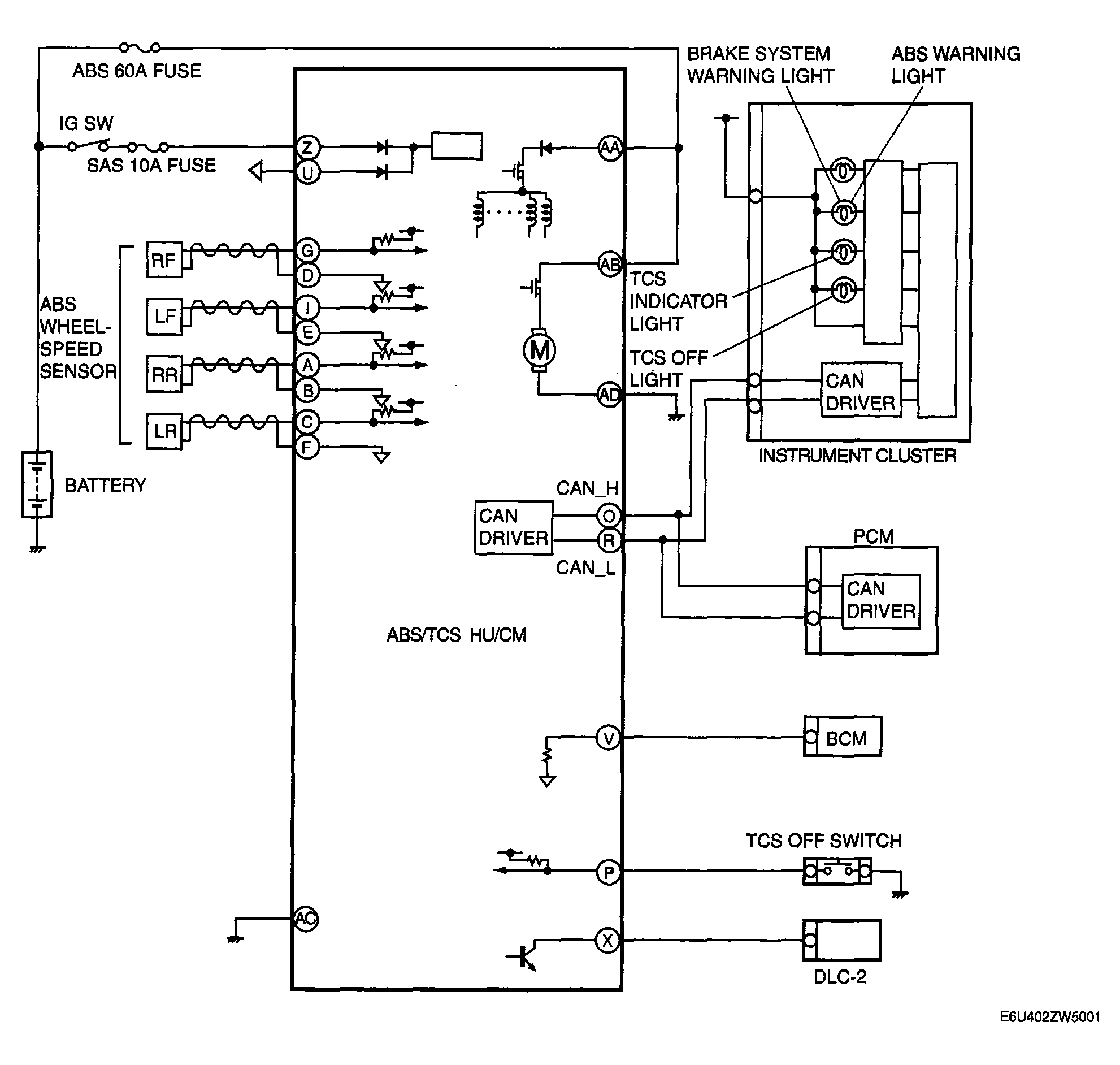

Fig 1: ABS/TCS System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
