DTC B1318 [Abs/TCS]: Notes
DTC B1318 [ABS/TCS] DETECTION CONDITION AND POSSIBLE CAUSES
| DTC B1318 |
ABS/TCS power supply |
| DETECTION CONDITION |
- Low voltage is detected at the voltage monitor of solenoid valve monitor, or the motor monitor
|
| POSSIBLE CAUSE |
- Malfunction of fuse (SAS 10 A)

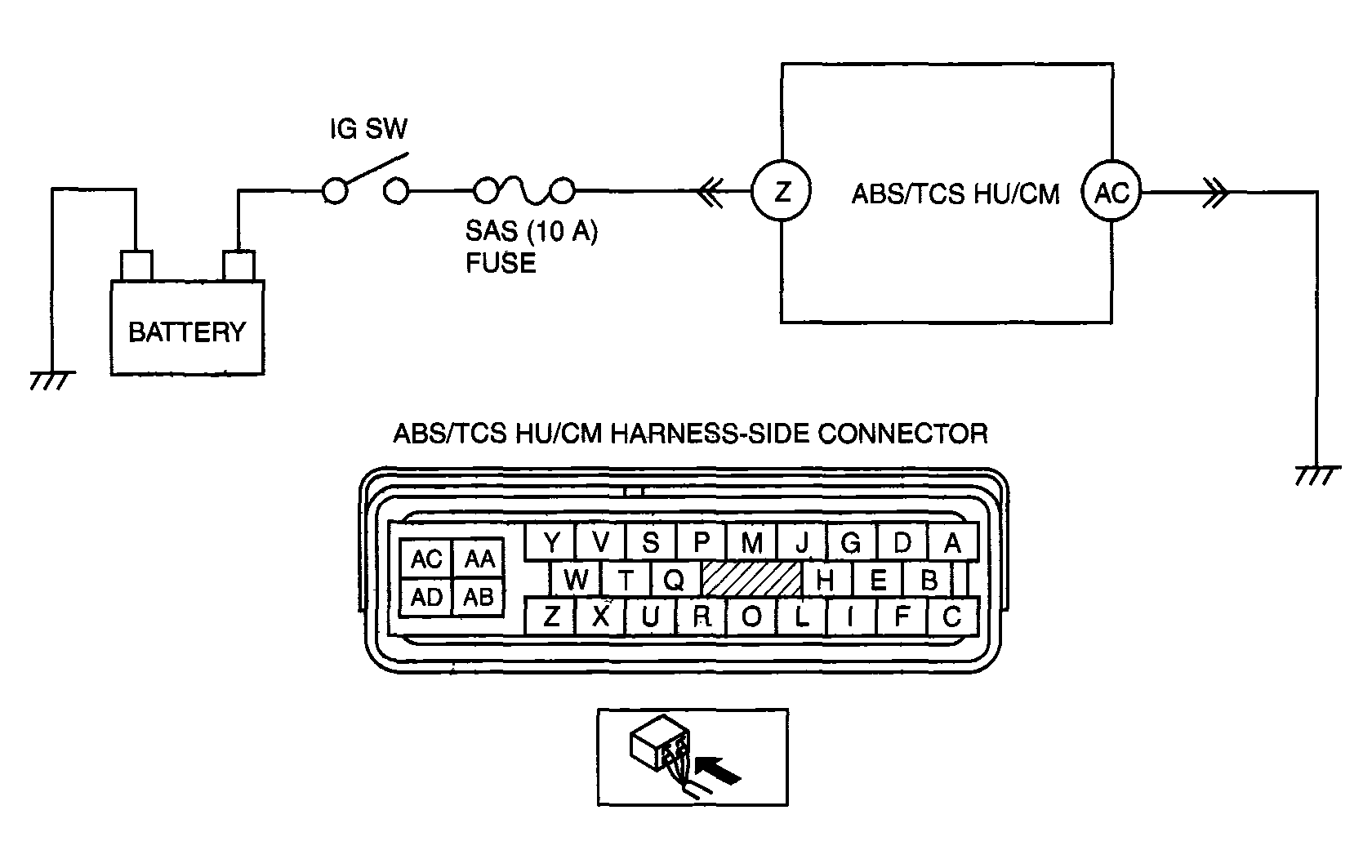

- Open circuit or short to power supply in harness between ABS/TCS HU/CM terminal Z and battery positive terminal
- Open circuit in harness between body ground and ABS/TCS HU/CM terminal AC
- Battery and/or generator malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
