Battery Removal/Installation [L3 With TC]: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

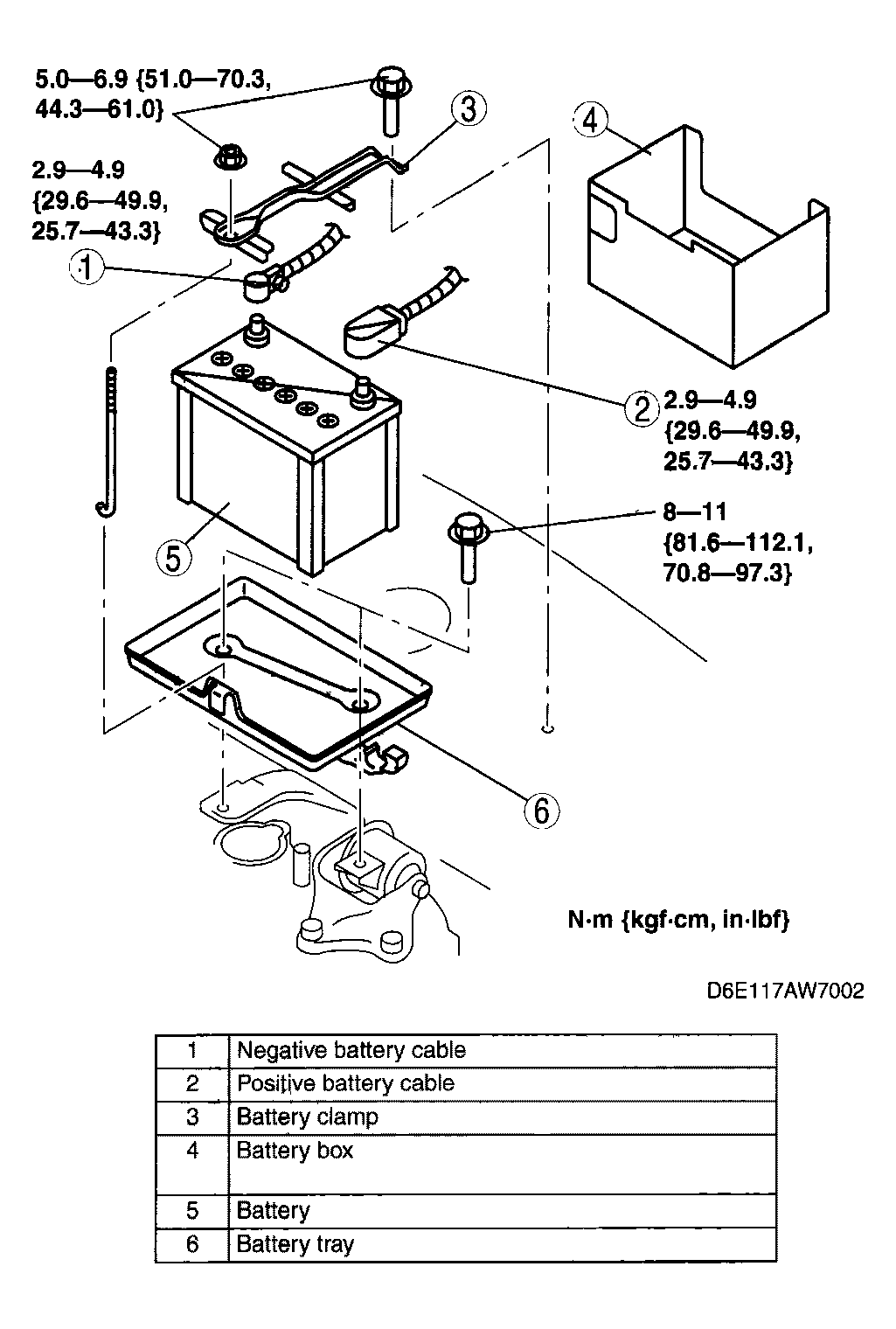

    Fig 1: Battery Tray, Hold-Downs & Cable Terminals Torque Specification
    G04325034Courtesy of MAZDA MOTORS CORP.
