Circuit Open/Short Inspection: Notes

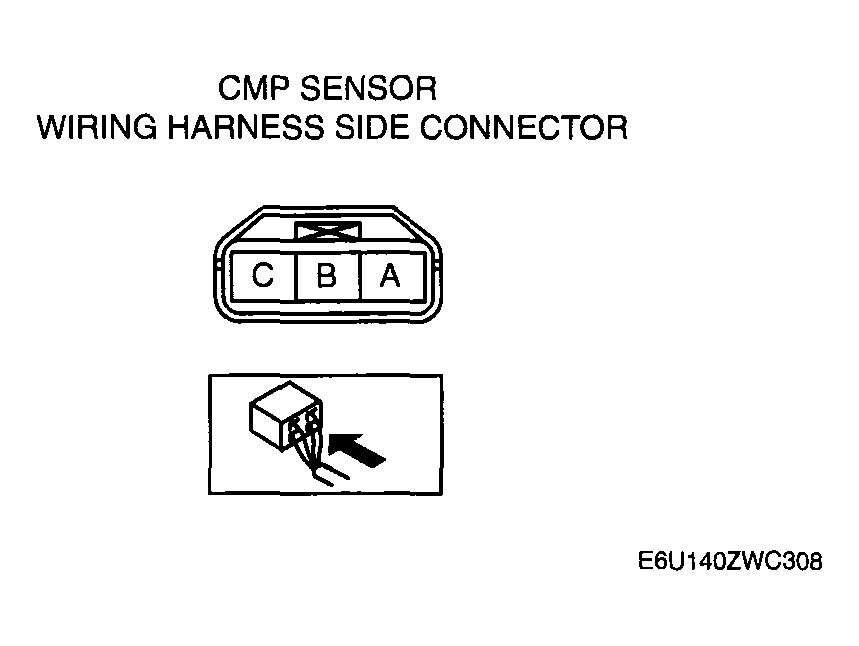

Fig 1: Identifying CMP Sensor Connector Terminals
G04325259Courtesy of MAZDA MOTORS CORP.

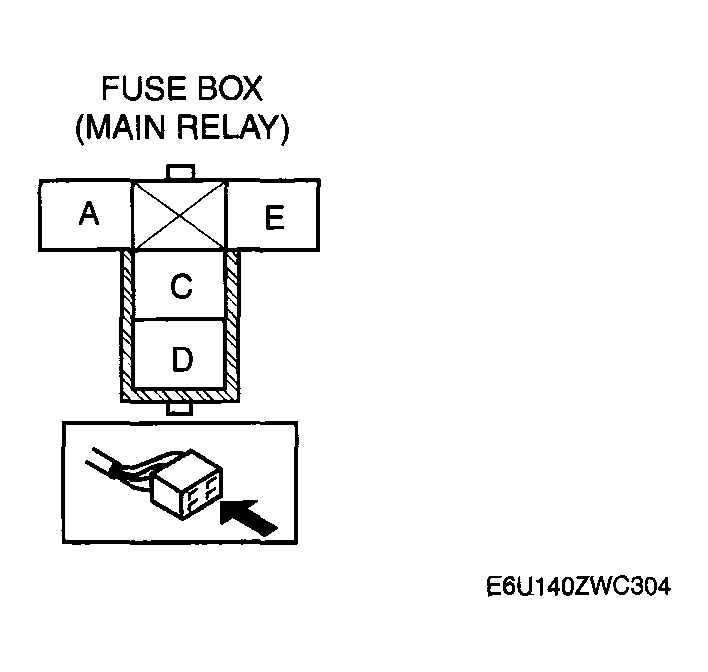

Fig 2: Identifying Fuse Box Main Relay Connector Terminals
G04325260Courtesy of MAZDA MOTORS CORP.
  1. Inspect the following wiring harnesses for an open or short circuit. (Continuity check)
