Master Cylinder Removal/Installation: Notes

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in Fig 1 .
  2. Install in the reverse order of removal.

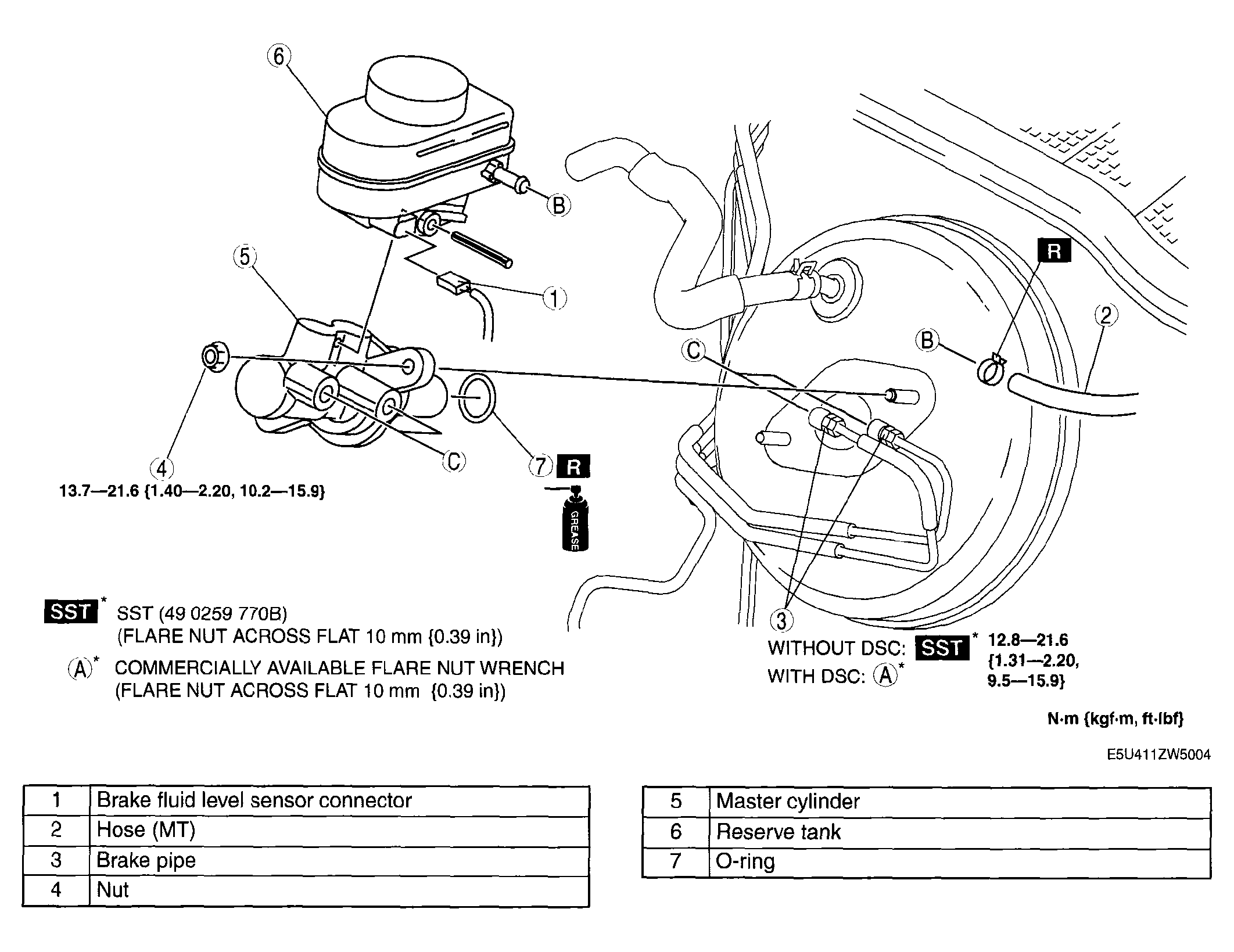

    Fig 1: Master Cylinder Removing/Installing Steps With Torque Specifications
    G04318366Courtesy of MAZDA MOTORS CORP.
